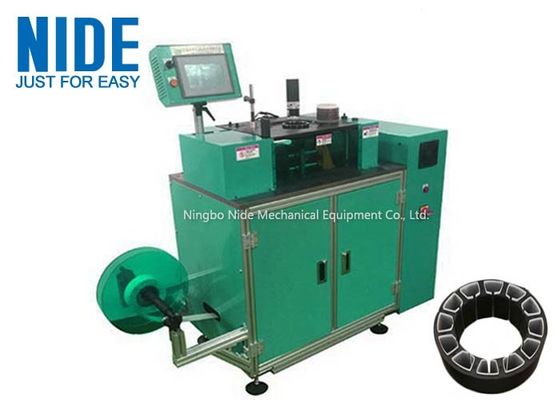

Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor

Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor

    • Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor
    • Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor
    • Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor
  • Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor

    Product Details:

    Place of Origin: Chian
    Brand Name: NIDE
    Certification: ce
    Model Number: CZNL1-100-135C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Wooden case which is suitable for sea transportation
    Delivery Time: 50 working days
    Payment Terms: L/C, T/T
    Supply Ability: 120 sets per year
    Contact Now
    Detailed Product Description
    Color: Green Or Customized Condition: New
    Type: Middle Used For: BLDC Stator Paper Inserting

    BLDC Inner stator insulation paper insertion machine for brushless motor





    (1) Application of Inner stator insulation paper insertion machine :

    The stator insulation paper inserting machine is suitable for inner stator paper insertion, such as BLDC motor and stepping motor stator.





    (2) Technical arameter of Inner stator insulation paper inserting machine :

    Production name: BLDC Inner stator insulation paper insertion machine
    Stator OD: ≤135mm
    Stack Height: 10-100mm
    Material's Thickness: ≤0.35mm
    Pitch time: ≤1s/slot
    Air Pressure: 0.4-0.6MPa
    Power supply: 220V 50/60Hz 3Kw
    Dimension: (L)1500×(W)650×(H)1480mm
    Weight: ≈400Kg





    (3) Machine function and characteristic:

    This BLDC Inner stator insulation paper insertion machine is designed for inner stator to do insulation paper inserting. The paper inserting mahcine adopts mechanical driven system, servo system and pneumatic system. As a result, the machine can automatically do positioning, pressing, paper feeding, paper forming, paper pushing. The paper edge can be auto chamfered so as to solve the winding problem caused by paper, and improve the percent of pass of stator. This machine is easy to operate, of high automation, and suitable for series motor, BLDC motor and stepping motor stator.





    (4)The brushless stator afer insulation paper inserting



    Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor



    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
    Insulation Paper Inserting Machine Bldc Inner Stator For Brushless Motor
