    Detailed Product Description
    Application: Stator Function: Inserting Paper Into Stator Slot
    Condition: New Working Station: Single
    Customized Service: Available

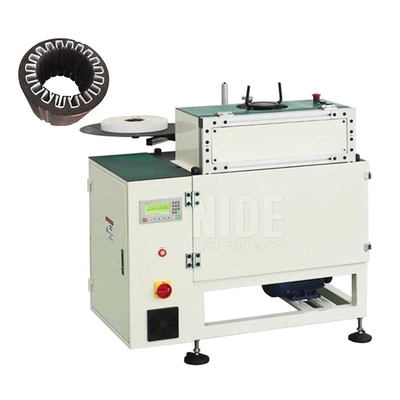

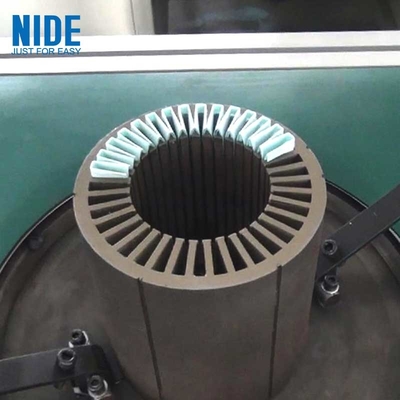

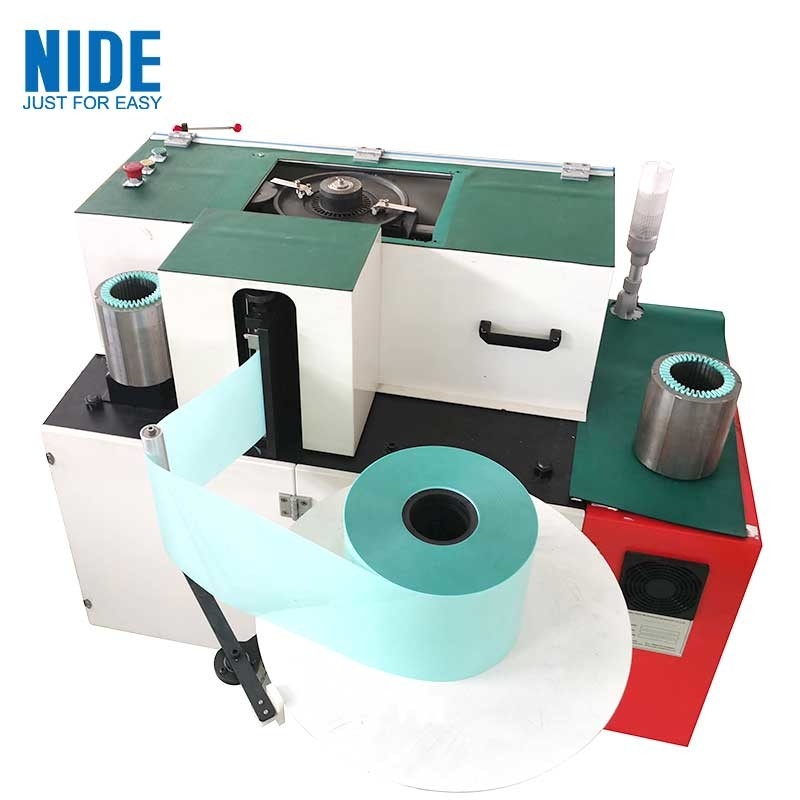

    Automatic High Quality stator folder inserter Insulation paper folding inserting machine





    (1) Application



    This automatic stator slot Insulation Paper Inserting Machine is suitable for small and medium-sized three phase motor, gasoline generator, etc.





    (2) Technical data:



    Proudution name stator slot paper inserting machine
    Stator stack length: 20~90mm
    Stator OD: max 135mm
    Stator ID: 20~90mm
    Folding height/width: 2~4mm/4~7mm
    Insulation paper thickness: 0.188~0.35mm
    Efficiency: ≈0.5s/s
    Power: 380V/50/60HZ 0.75KW
    Machine weight: ≈200kg
    Machine dimension: (L)1200*(W)650*(H)1100mm




    (3) Machine main function and characteristic:



    The cutting edge of insulation paper should be neat, no damage, and free of burr. The stator should not be deformation and stator lamination should not be upward resulting from paper inserting.

    The whole set of tooling can be changed, and it takes about 30min.

    The paper inserting Machine will stop automatically when paper jams.

    With a text displayer, this machine can display and set all different models’ parameter.

    Primary qualification rate ≥99%, after rework, the rate ≥99.9%

    Production capacity ≤1s/slot (exclude the loading/unloading time)

    Paper width: stator stack length+14mm, edge folded: according to customer’s requirement.

    Operator needs to stand while operating. This machine adopts single hand system button.

    This insulation paper inserting machine is suitable for Polyester Film insulation paper roll material with thickness 0.25mm and fixed width(width is decided by customer)



    Single Working Station Paper Folder Inserter Machine For Small And Medium-Sized Three Phase Motor

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
