| Place of Origin: | china |
| Brand Name: | nide |
| Certification: | none |
| Model Number: | ND-LHL-QSFA2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case which is suitable for sea transport |
| Delivery Time: | 65 wroking days |
| Supply Ability: | 90 sets per year |
| Name: | Armature Commutator Turning Machine | Color: | Customize |
|---|---|---|---|
| Control: | PLC | Condition: | New |
| Highlight: | automatic turning machine,rotor turning machine |
||

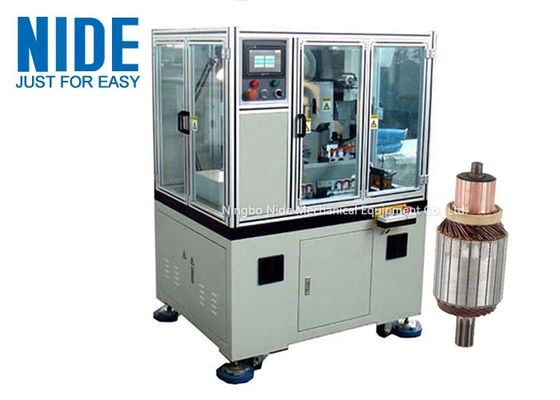

ND-LHL-QSFA2 Servo cnc motor cummutator armature rotor turning process lathe machine equipments
(1)Applications of armature rotor commutator turning lathe machine
The rotor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
(2) Main technical data of armature rotor commutator turning lathe machine
| Product name | armature rotor commutator turning lathe machine |
| Concentricity | ≤0.0025-0.0035mm |
| Roundness between bars | ≤0.0015-0.0025mm |
| Armature diameter range | 20~85mm |
| Surface roughness | ≤Ra 0.40 |
| Shaft length range | 32~200mm |
| Armature shaft diameter range | 3~17mm |
| Commutator O.D. range | 12~40mm |
| Weight each cutting | Max 0.20mm |
| Speed frequency range | 0~90Hz |
| Control | PLC system |
| Cutting speed | PLC adjustable |
| Efficiency | Cycle≤10s per pc |
| Air pressure | 4~6kg/cm2 |
| Fixture | Diamond V block |
| Motor Power | 2.5KW |
| Frequency | 50/60Hz |
| Weight | 1100Kg |
| Voltage | AC220V±10% |
| Machine dimension | 850mm x 950 mm x 1,830mm |
(3) Machine function and characteristic of armature rotor commutator turning lathe machine
Equipped with lubrication device and aluminum alloy frame, this commutaotr turning machine features advance technology and modern shape.
The rotor commutator turning machine has easy operation system and self-checking system.
Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation.
PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block.
Equipped with lubrication device and aluminum alloy frame, this commutator turning machine features advance technology and modern shape, has easy operation system and self-checking.
