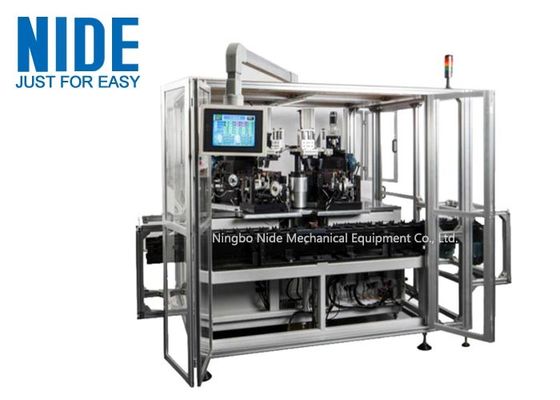

CE certified automatic Armature Balancing Machine with five working station

CE certified automatic Armature Balancing Machine with five working station

    • CE certified automatic Armature Balancing Machine with five working station
  • CE certified automatic Armature Balancing Machine with five working station

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: CE
    Model Number: ND-BFZSZ-5L-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Wooden case suitable for sea transportation
    Delivery Time: 60 working days
    Payment Terms: T/T, L/C
    Contact Now
    Detailed Product Description
    Condition: New Working Station: Five
    Machine Po6wer: 6KW Machine Weight: 2000KG
    Rotor Diameter: 40~70mm
    High Light:

    rotor balancing machine

    ,

    motor rotor balancing machine



    CE certified automatic Armature Balancing Machine with five working station





    Quick Detail:


    1. There are5 working stations
    2. The balancing method is weight remove.
    3. All the data can be set on the touch screen.
    4. The working picth is 7~10s.



    Description:



    This type balancing machine is equipped with five working stations. Two stations are for testing, one is before balancing, the other one is after balancing. Two stations are for balancing, one is to do balancing to the commutator side rotor lamination, other one is for the shaft side lamination. The rest one station is for loading and unloading. The balancing method is weight remove.  Machine is simple to operat and tooling change is easy. It is of high efficiency and stable performance. Machine is equipped with touch screen, all the data can be displayed and set in it. High efficiency and precision.PLC controlled, all the data can be set on the touch screen.




    Technical Parameter



    Items





    Details



    Type Five-station



    Armature apply range

    Armature below 3KG

    Stack height:20-70mm

    Armature diameter: Φ40-70mm

    Balancing speed 1500-2200rpm
    Milling method R-shape or V-shape
    Power AC380V
    Air supply 0.4~0.6Mpa
    Retest volume 3mg
    Cycle time 7-10s

    Residual unbalance

    eccentricity

    Better than the China national standard Grade 6.3
    Machine weight 2000KG

    Machine dimension

    2000 X1700X 1800 mm mm





    Maintenance of the system
    A. Daily Maintenance
    1. Clean the dust and ash on the surfaces of the machine, keep every part clean.
    2. Ensure the power and air supply function well before starting the system.
    3. Check the vulnerable components (leather conveyors, ceramic sticks, block piece, etc).
    Please replace the damaged ones.


    B. Monthly Maintenance
    1. Check damping of every air cylinder to ensure they can function smoothly.
    2. Lubricate every linear guide and bearing.
    3. Add rust preventing oil on the components.
    4. Add lube into the flow nipple on the cutters to lubricate the bearings.
    5. Check the filters of the air compressors, dewater them regularly.
    6. Check the status of the dust collector and the filter net to ensure they can function well.
    l Season Maintenance
    1. Demagnetize cutters and fixture seats.
    2. Check if the cutters are filthy or wearing (1 sharpening/ 0.1 million uses). Check if the
    screws are tightened.
    3. Check the vulnerable components (leather conveyors, ceramic sticks, block piece, etc).



    C.Yearly maintenance
    1. Check the flexibility of the gears. Replace those that can’t function well.
    2. Check if the spring pieces are out of shape. Replace those with distortions.
    3. Check if the screws on the electrical vortex sensors are tightened and if the direct current
    voltage between “O UT+” and “COM-” is between -1 and -2.
    4. Check the fan in the electric equipment cabinet. Check the voltage of every electric circuit.
    5. Check air out line of the air connector.
