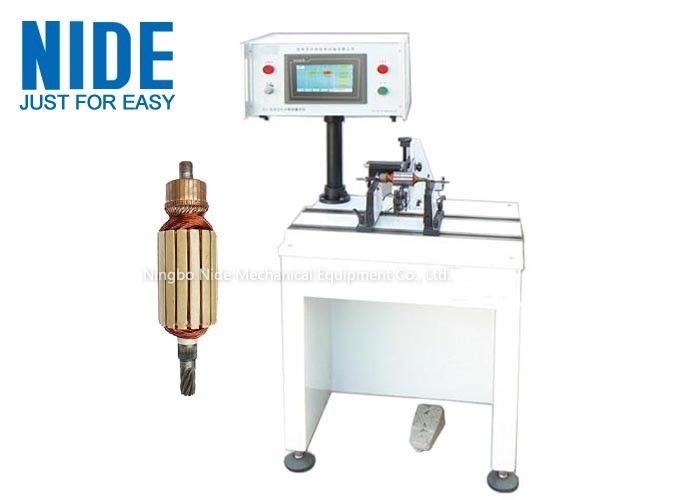

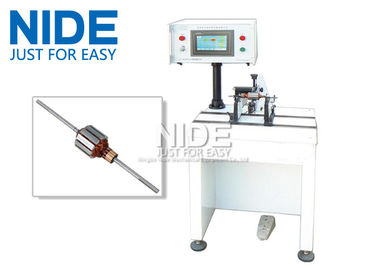

Automtic Position Armature Dynamic Rotor Balancing Machine

AUTOMTIC POSITION ARMATURE DYNAMIC BALANCING MACHINE ADDING WEIGHT

The Automatic Positioning Armature Dynamic Balancing Machine can find and stop at unbalanced position automatically. No need to mark on armature (such as reflective sheet, black mark and so on).



Operation process:

1. Put armature in machine manually

2. Carry out armature's imbalance testing automatically (can start by manual),display and maintain testing data automatically, at the same time,it can display angular difference of left and right imbalance point, simple and easy operation, furthest to avoid faults during operation.

3. Stop at adding weight point (left) automatically, finish adding manually, change to the next adding weight point(right), finish adding manually, test again, and complete balancing adjustment.

4. Take out well-balanced armature, put in unbalanced one.

Advantage:
1. No need to mark on the armature (such as reflective sheet, black mark an so on)

2. Imbalance point positioning automatically

3. Easy operation.

4. Reduce the complexity of the machine operation

Machine configuration:

1. Professional testing machine box

2. High sensitivity hard support measure frame

Machine's range of application:

Armature dynamic balancing (refer to below machine's technical parameter)

Machine's efficiency of operations:

1. Relate to the initial imbalance volume the balancing volume of armature.

2. Cycle of measurement is 6s/piece; usually measure 2-3 times.

Machine's technical parameter:

Spare parts list along with the machine:

1. Belt 2pcs

2. Internal hexagonal wrench 1set

3. Slot type screwdriver1pc

4. Philip's type screwdriver1pc

5. 6A fuse 2pcs

6. 2A fuse 2pcs

7. Tooling box 1pc

8. Support chip 8pcs

9. Operation instruction 1pc

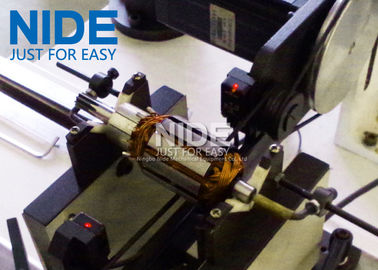

The armtaure balancing machine working picture
