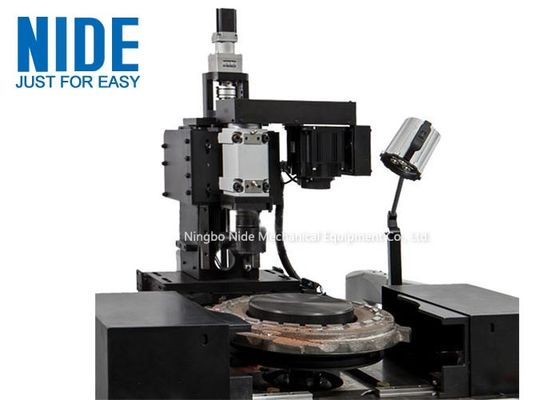

Vertical type motor rotor balancing machine touch screen balance equipment

Vertical type motor rotor balancing machine touch screen balance equipment


Description:

The vertical type armature balancing machine can measure the armature’s unbalance and do the unbalancing. Touch screen can display the unbalance with its angle and value. There are two correction method, drilling and milling. The smallset residual unbalance value is 1gmm/kg Machine can be customized as per customer’s armature.

Machine working station

Technical data

technical data of vertical balancing machine

Rotor range: Stack weight: 30KG / Rotor diameter: Max 500mm

Measuring speed: 400~900 rpm

Balance correction method: Drilling/Milling

Power: three phase AC 380V

Working air pressure: 0.4~0.6Mpa

Smallest achievable residual unbalance: 1gmm/kg

Cycle time: 30~60s

Residual volume: G6.3

Dimension: 1300x1000x1300mm

Weight: 2000KG

Cleaner consumption: 1.5KW

Machine consumption: 5.5KW

Daily Check and Maintain
1． Clean the dust and iron filings on the machine.
2． Check the vulnerable components (eg: leather belt, Iron piece, drill), please replace them if they are damaged.
3． Spraying antirust oil to prevent the machine rusty.

Month Check and Maintain
1. Check the machine power.
2. Check the machine each function module is normal.
3. Check the machine test station.

Rotor suitable for this machine
