High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control

High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control

  • High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control
  • High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control
  • High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control
  • High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control
High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-XSR-5BL-III
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 300 set per year
Contact Now
Detailed Product Description
Product Name: Armature Rotor Cutting And Balancing Machine Power: Electronic
Usage: Balancing Rotor Power Supply: 380V 50Hz
Warranty: 1 Year Color: Customer Required
Application: Rotor Dynamic Balancing Certification: CE
Balancing Speed: 100-2200 RPM Adjustable Working Stations: 5
High Light:

high speed balancing machine

,

motor rotor balancing machine





High precision Armature Automatic Dynamic Balancing Equipment Machine With PLC control





Quick Detail:

1. there are 5 working stations
2. double cutter, equipped with production line.
3. High efficiency and precision.
4. PLC controlled, all the data can be set on the touch screen.
5.Cutting depth and length can be controlled.
6. Mechanical arm



Description:

For this type of Five station Armature Balancing Machine, armature does not need to mark, directly put on the conveyor, there are 5 working stations: loading and unloading station, initial measuring station, left side cutting station, right side cutting station and remeasuring station. High efficiency and precision.PLC controlled, all the data can be set on the touch screen.





Technical Parameter

Item

Specification

Model

Five stations(double cutter, equipped with production line, ND-XSR-5BL-III)

Applicable armaturesize

Armature weight below 1.6Kg;

Armature lamination thickness:15-60mm

Armature diameter:Ф40-60mm(IIItype)

Balancing speed

1000—2200RPM

Cutting method

R type cutter;Cutting depth and length can be controlled.

Power source

AC380V

Air source

0.4~0.6Mpa

Initial unbalancevalue

Accordingto armature radius and cutting depth, for ∮40mmarmature, each cutting position≤500mg.

III type machine working pitch time

10S (Initialmeasuring, one time each for left and right side cutting, remeasuring.)

Residual unbalancing value

Better than national standard 6.3 grade

Dimension: L*W*H

2200X 1500 X 1800 mm(includingproduction line)




Picture show

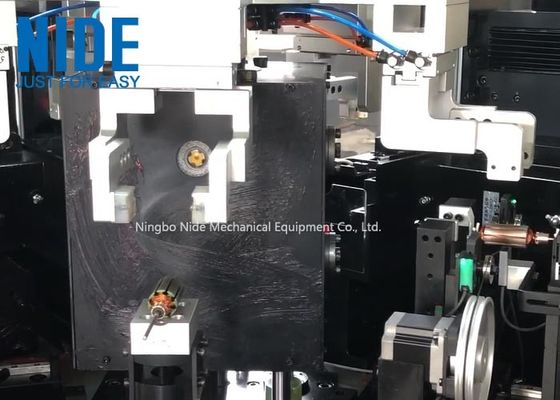

armature balancing machine

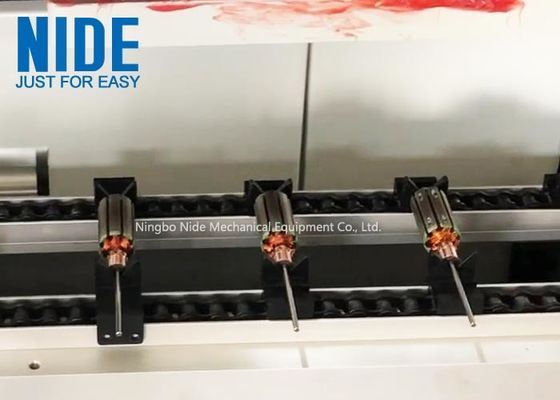

automatic rotor balancing machine



The electric motor armature balancing machine video



automatic motor rotor balancing machine
