| Place of Origin: | China |
| Brand Name: | Nide |
| Certification: | CCC |
| Model Number: | ND-HZZX-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wooden case suitable for sea transportation |
| Delivery Time: | 90days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10set |
| Condition: | New | Automation Type: | Semi Automatic |
|---|---|---|---|
| After-Sales Service: | Overseas Service Center Available | Machine Color: | As Per Customer Requirement |
| Customized Service: | Available | Name: | Hairpin Motor Armature Manufacturing Machine |
| Application: | Auto Starter Motor Armature | ||
| High Light: | automotive starter automatic armature production line,hairpin motor armature production line,armature production line automatic |
||
Auto Starter motor armature production line for hairpin motor manufacturing
The starter hairpin motor armature production line is suitbale for auto car, electric vehicle, new energy car, diesel power generation and Gasoline Power Generation motor, Engineering vehicles stater ,digging machines stater and dump truck stater,etc.
Starter motor armature is an internal component of a starter motor.Plays a big role in the working of vehicle starting systems.

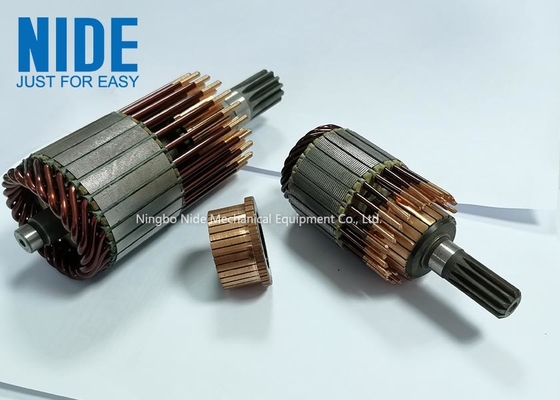

The starter hairpin motor armature is a kind of hairpin motor, consists of windings, an iron core supported on a shaft, and a commutator.
The starter motor armature production line includes hairpin motor armature paper inserting machine,starter armature coil inserting machine, hairpin motor armature commutator pressing machine and starter armature commutator spot welding machine.Equipped with advanced servo motor, water cooling section and PLC controlled mechanism. High operating speed, long working life, user friendly design, durable structure, high output level and low noise generation level are the key attributes of this Starter Motor Armature Production Line.Flat wire for the starter armature and automatic remove enamel.Form the conductor coil for starter armature.
Technical Parameters
| Product name: | hairpin motor armature manufacturing |
| Supply voltage : | AC380VA±10% 50Hz |
| Air pressure: | 0.5~0.7 MPa |
| Welder power : | 75kw |
| Wire diameter : | ≤4.0mm |
| Armature Rotor OD: | ≤130mm |
| Rotor shaft diameter: | ≤22mm |
| Commutator diameter: | ≤80mm |

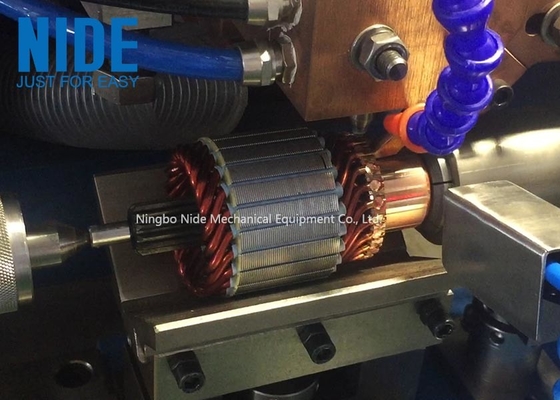

Hairpin motor armature production line picture
Hairpin motor armature production line video
