Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | ND-SMPX |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiation |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 120 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200 line per year |
Product Name: | Servo Motor Stator Automatic Manufacturing Line | Productitity: | High Efficiency |
---|---|---|---|
Automation: | Automatic | Color: | Ral9010 Or As Per Customer Requirement |
After-Sales Service: | Overseas Service Center Available | Condition: | New |
High Light: | Servo Motor Assembly Line,Automatic Servo Motor Production Line,Stator Manufacturing Motor Production Line |
Servo Motor Stator Automatic Manufacturing Line-Motor Production Line
Automatic Servo Stator Manufacturing Production Line

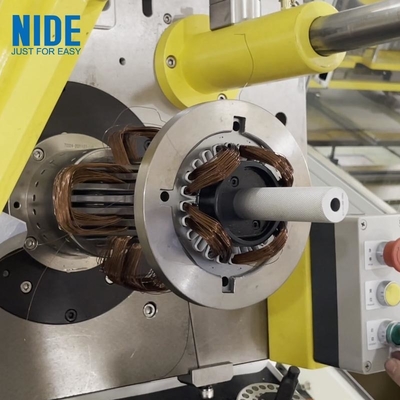

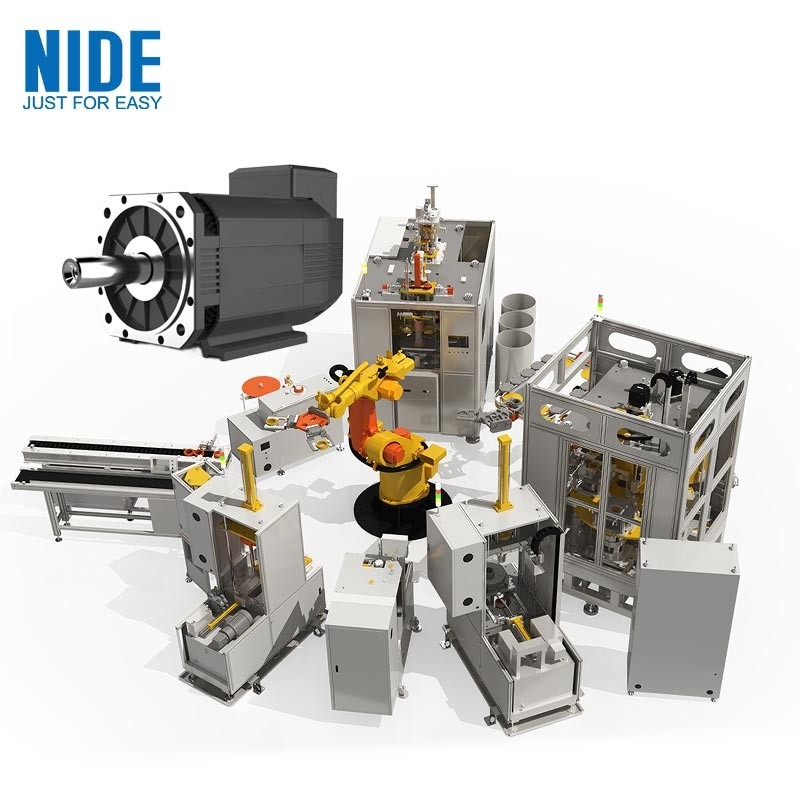

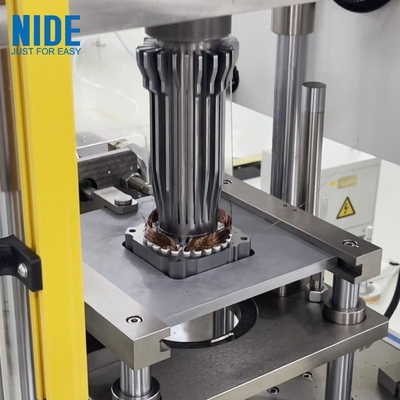

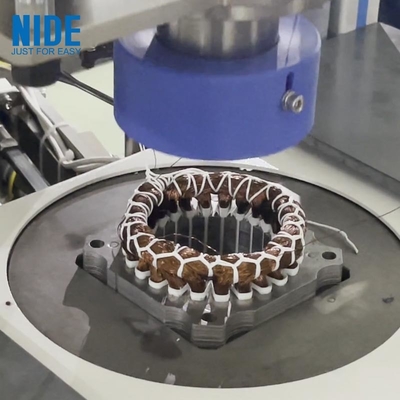

This automatic stator production line is suitable for servo motor stator manufacturing. This line includes wedge inserting machine, winding and inserting combination machine, four-station pre-forming and expansion machine, middle forming machine, double-sides lacing machine, final forming machine, slot expanding machine, KUKA manipulator, double-speed chain, belt line, circular plate chain line, working table and other machines.
Basic Specification
-Product: | Automatic Servo Stator Manufacturing Production Line |
-Stator O.D.: | ≤140 |
-Stator I.D.: | ≤90 |
-Stator Stack length: | 30-140 |
-Wire size: | 0.3-0.9 |
-Slot Number: | 18-48 |
-Size: | 8500*9000 |
Production Process
Manually loading→ Paper inserting→ Coil Inserting for primary→ Expanding→ Manually wire sorting→ Coil inserting for secondary→ Expanding→ Manually wire sorting→ Coil inserting for third phase→ End pre-forming→ Manually putting phase paper→ Manually lead wire welding→ Pre-lacing lead wires→ Middle forming→ Lacing→ Final Forming→ Manually unloading
Technical Proposal
Cycle time for whole line: Within 240 sec/pc
The machines are equipped with following designs:
-Servo drive
-Fast-to-change tooling, with convenience and efficiency
-Complete and reasonable automatic error self-diagnosis function
Servo Motor Stator Line Detail
Servo Motor Stator Line Video
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.
Customerized service | 1. Customized product design and manufacturing |
2. Customized tranning | |
3.Technical suggestions | |
After-sales service | 1. Warranty Period: 12 month usually |
2. Overseas service center available | |
3. Engineers available to service overseas |
