Product Name: | BLDC External Stator Coil Winding Machine/ Needle Winder | Color: | Customized |
---|---|---|---|
Type: | Automatic | Used For: | BLDC Motor External Rotor Making |
Rotor ID: | 20-80MM | Rotor OD: | 50-120MM |
Efficiency: | 120 Rpm | Winding Stations: | Two |
Highlight: | External Rotor Coil Winding Machine,Two Stations Coil Winding Machine,120 Rpm Coil Winding Machine |

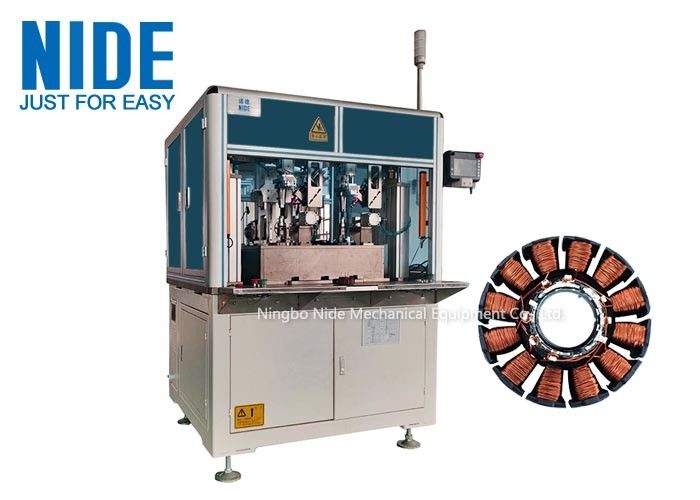

Automatic electric motor stator coil winding machine with 2 stations needle winder
(1) Automatic external stator winding machine Technical data :
Product name: | Automatic external Stator needle winding machine |
BLDC rotor O.D.: | 80-200mm |
BLDC rotor height: | 18-35mm |
Wire diameter: | 0.2-1.3mm |
Winding method: | needle winding |
Power supply: | 220V,50/60 Hz |
Parallel winding wire number: | 1-8 |
Machine weight: | about 700KG |
Dimension: | 1300*800*1500mm |
(2) Automatic external stator winding machine Application:
The automatic external Stator winding machine is used for BLDC motor manufacturing ,such as air heaters motor, heat pumps motor, condensers motor, cooling units motor, evaporators motor, electronic equipment motor for air or heat dissipation, etc.
(3) Automatic external stator winding machine Function and Characteristics:
1. The automatic motor Stator winding machine adopts needle coil winding technology, is sutiable for multi-pole BLDC armature coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
2. The frame adopts thickened 4080 aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
3. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
4. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
6. Quick change-overof tooling;(20 minutes with proficiency)
7. Full aluminum alloy protection
8. PLC control, fault display
9. The wire tightness is moderate, no injury, no breakage, ect.
10. The salt test of the product is carried out within 10 mA in one minute.
11. Equipment safety index: accord with CE standard.
12. Efficiency: 120 rev / min.
13. Beat: 5 minutes / BLDC rotor.
14. Noise: 60-70 decibels or less.

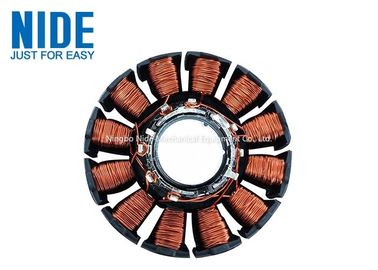

(4) Automatic stator picture display:
