Place of Origin: | china |
Brand Name: | nide |
Certification: | none |
Model Number: | ND-SR300 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 40 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 set per year |
Color: | Customized | Conditon: | New |
---|---|---|---|
Armature O.D: | 25-65mm | Weight: | 400Kg |
Dimension: | 900*800*1600mm | Power Supply: | Three Phase 380V,50.60Hz |
Warranty: | 1 Year | ||
Highlight: | wire winder machine,transformer winding machine |

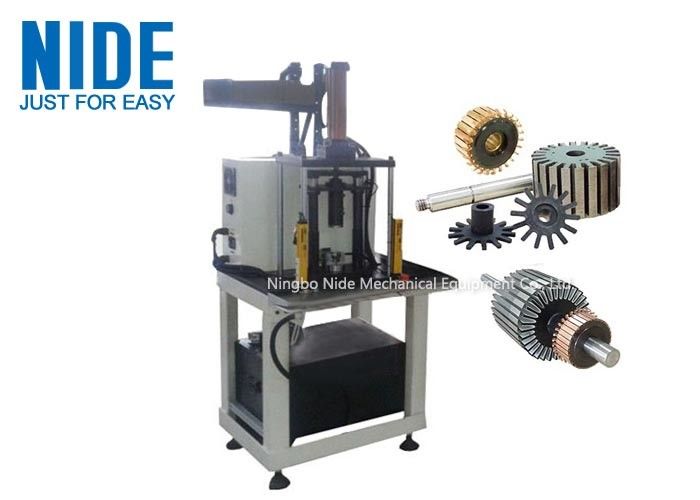

Automatic armature pressing machine for end cover shaft and commutator
Main technical data
Armature OD | 25-65mm |
Stack height | 20-70mm |
Power consumption | 1KW |
Air pressure | 0.4-0.7Mpa |
Machine dimension | 900x800x1600 |
Weight | 400KG |
Machine feature
Feature pressng shaft, end cover and commutator in one time,
Entire fixture struture, fixture change over fast,
High eficiency, less labor cost
Operation step
Put armature core, shaft, end cover and commutator to the related position
Press start button
Machine will automatically press all these things into armature core
Picture show
Competitive advantages
Variety of application, easy operation.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer as per their requirement.
We have Overseas Service Center.
Information needed for Commutator Armature Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Rotor lamination drawing
2. Rotor assemble drawing
3. Rotor stack drawing
4. Shaft drawing
5. Required pressing positon
6. Other technical requirement
If possible, it will be better if customer can send us samples.
