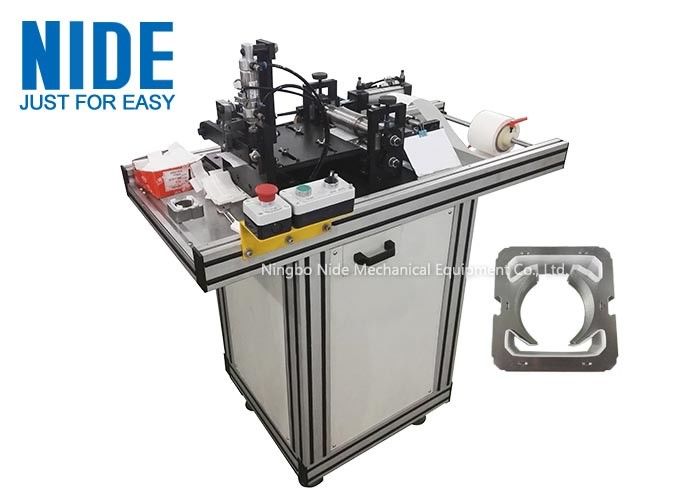

Universal Motor Stator Insulation Paper Shaping And Cutting Machine For 2 Slots Mixer Motor Stator

Universal Motor Stator Insulation Paper Shaping And Cutting Machine For 2 Slots Mixer Motor Stator

    • Universal Motor Stator Insulation Paper Shaping And Cutting Machine For 2 Slots Mixer Motor Stator
    • Universal Motor Stator Insulation Paper Shaping And Cutting Machine For 2 Slots Mixer Motor Stator
  • Universal Motor Stator Insulation Paper Shaping And Cutting Machine For 2 Slots Mixer Motor Stator

    Product Details:

    Place of Origin: China
    Brand Name: Nide
    Certification: CCC
    Model Number: ND-LGJ-1A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: wooden case suitable for sea transportation
    Delivery Time: 60 days
    Payment Terms: L/C, T/T
    Supply Ability: 100set per year
    Contact Now
    Detailed Product Description
    Max Stator O.D Range: 50~95mm Stack Length: 5~80mm
    Paper Width: Less Than 130mm Productivity: 4pcs/second
    Condition: New Voltage: 110v/220v/380v
    Name: Mixer Motor Stator Insulation Paper Cutting Machine
    High Light:

    wire winder machine

    ,

    transformer winding machine

    Automatic universal motor stator insulation paper shaping and cutting machine for 2 slots mixer motor stator





    (1). Introduction and application

    The Stator paper forming and cutting machine is suitable for universal motor 2 poles stator insulation paper forming and cutting before stator coil winding process, such as Vacuum cleaner motor, Juicer motor, Mixer motor, Blender motor.

    The Stator paper forming and cutting machine is easy to operate and easy to change tooling.

    During the paper forming and cutting machine running, the whole process will be done by machine automatically.

    If user need the paper with punching hole, this machine can also do it.





    (2). Technical parameter:

    Product name: 2 poles universal motor stator paper cutting and forming machine
    Stator I.D : 30~55 mm
    Stator slot number: 2 slots
    Stator O.D : 50~95mm
    Stack length: 5~80mm
    Paper width: Less than 130mm
    Paper thickness: Less than 1mm
    Productivity: 4pcs/second
    Air pressure: 0.4~0.7Mpa
    Machine dimension: 490*790*1200mm
    Machine weight: 110Kgs





    (3). Information needed for paper cutting and forming machine inquiry

    Please send us detailed drawing including below information. If possible, it will be better if customer can send us samples.

    1. Stator lamination drawing

    2. Stator stack drawing

    3. Insulation paper drawing and its material

    4. Stator application

    5. Required productivity

    6. Other technical requirement





    (4). Picture show

    2-poles-universal-motor-stator-insulation-paper-forming-and-cutting-machine3

    2-poles-universal-motor-stator-insulation-paper-forming-and-cutting-machine1

    2-poles-universal-motor-stator-insulation-paper-forming-and-cutting-machine2
