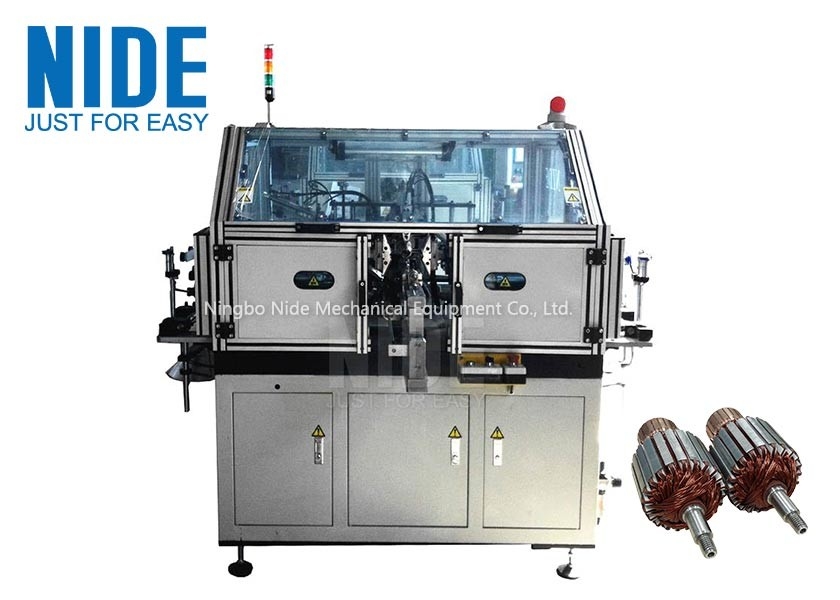

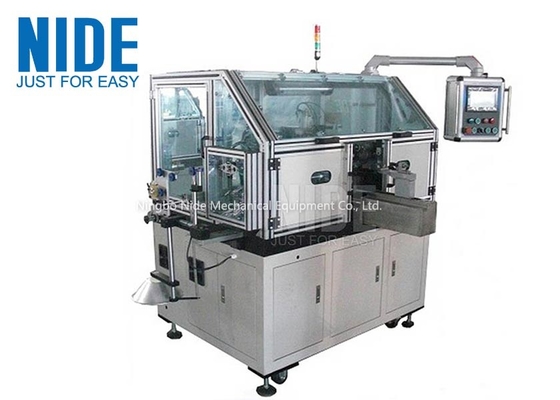

Semi - Auto Armature Coil Winding Machine For Slot Motor Wire Winding

Semi - Auto Armature Coil Winding Machine For Slot Motor Wire Winding

  • Semi - Auto Armature Coil Winding Machine For Slot Motor Wire Winding
  • Semi - Auto Armature Coil Winding Machine For Slot Motor Wire Winding
Semi - Auto Armature Coil Winding Machine For Slot Motor Wire Winding
Product Details:
Place of Origin: China
Brand Name: Nide
Certification: None
Model Number: ND-LAW-5B2E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 35 working days
Payment Terms: TT/ LC
Supply Ability: 120 sets per year
Contact Now
Detailed Product Description
Condition: New Certificate: CCC
Customized Service: Available Machine Size: Middle Size
After-Sales Service: Overseas Service Center Available Machine Color: As Per Customer Requirement
Highlight:

horizontal semi automatic armature winding machine

,

armature coil winding machine semi auto

,

semi auto armature coil winding machine

Semi-auto Armature Rotor Coil Winding Machine for even number slot motor wire winding



Semi-auto Rotor Coil Winding Machine is used for even number slot motor wire winding. It adopts Japanese frequency speed adjustment, low rise and accelerating, numeric code dialing setting operation speed and deceleration speed ahead, breaking and location accurate, foot stepping to loose tooling, automatic closing tooling. Easy operating, and save more labor.



(1) Main technical data:

Power suply Voltage 220V±10%, 50HZ
Power 0.8KW
Pre-set turns 0-9999
Advance Turns 0-9
Principal Axis Center Height 165mm
Rotation Speed 0-1300r/min
Wire Diameter 0.08-1.05mm


(2) Application

It is suitable for home appliance, car and power tool motor aramture.


(3) Information needed for Semi-auto Rotor Coil Winding Machine inquiry

It will be better if customer could send us detailed drawing including below information.
1. Rotor lamination drawing

2. Rotor assemble drawing

3. Rotor stack drawing

4. Rotor winding diagram drawing: with rotor wire diameter and turn number

5. Commutator drawing

6. Required productivity

7. Other technical requirement

If possible, it will be better if customer can send us samples.



The armature winding machine video :
