| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CCC |
| Model Number: | ND-ZZX-5R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD(0~150000) per set |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 120days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 12line |
| Name: | Armature Manufacturing Production Line | Used For: | Motor Armature Rotor Production |
|---|---|---|---|
| Color: | RAL9010 Or As Per Customer Requirement | Type: | Fully Automatic |
| Highlight: | electric motor production line,electric motor assembly line |
||

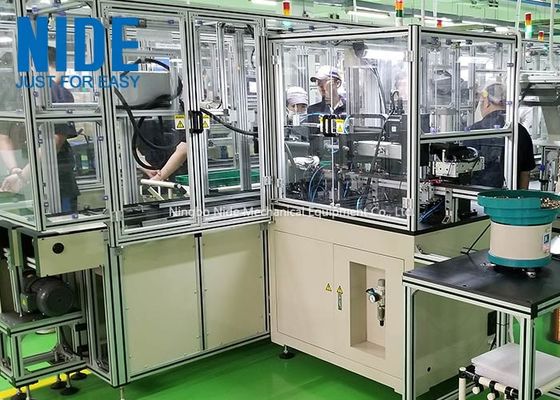

Customized Fully auto motor armature rotor production assembly line
I. The armature rotor production line introduction:
This automatic produciton assembly line is used for the manufacturing production of motor rotors (commutators can be hook or groove).
The automatic motor armature manufactuing line is transmitted by the belt conveyor line, and the front and rear machines can be connected according to a predetermined communication protocol to realize intelligent automatic production, and the workpiece transfer, loading and unloading, detection, and production process transfer can be completed without manual intervention.
The motor rotor production assembly line consists of the main operating table (including the upper and lower feed ports), the rotor shaft pressing machine, the rotor commutator pressing machine , the automatic rotor insulation paper insertion, the double flyers armatur rotor coil winding machine, and the fully automatic rotor commutator spot welder, the automatic rotor slot wedge insertion machine, the armature rotor commutator turning machine, the armature rotor deburring machine, the fully automatic rotor integrated testing machine.
These machines form an automatic rotor production line through belt conveyors.
The workpiece is placed in the production line from the console.
The entire production line will complete the corresponding process according to the relevant process.
Finally, it will be recycled back to the lowering port to remove the completed workpiece.
Each process equipment has functions such as separate setting, display, operation, sound and light alarm.
II. Performance and characteristics
1. This automatic rotor manufacturing production line includes armature shaft presser, armature rotor commutator press, rotor insulation paper automatic inserter, double fly fork armature rotor winder, fully automatic rotor commutator spot welder, automatic armature rotor slot wedge inserter , rotor commutator finishing turning machine, rotor commutator deburring machine, and fully automatic armature rotor testing machine.
2. The complete rotor manufacturing line equipment can be automatically connected or operated independently.
3. Advanced and sophisticated host manufacturing technology combined with a powerful belt conveyor system for a variety of different planar configurations.
4. It has the advantages of simplicity, flexibility, high efficiency and reliability, which can greatly save manpower, reduce labor intensity and effectively improve production and quality.
5. High-strength all-aluminum frame structure, simple and elegant appearance.
6. The main operation console can perform centralized display monitoring and inquiry on the entire production system, and can read and write the process status of the product by manual input instructions, which can change the process of processing the product, and the operation is more humanized.
7. Compared with the pneumatic conveying line, the transmission efficiency is higher, the noise is smaller, and the workpiece is not damaged during transportation; the belt conveying structure combined with the intelligent identification system realizes flexibility from hardware and software, and makes the wiring more flexible and diverse.
8. The whole rotor manufacturing line adopts automatic identification control system. Each process can automatically read, write and identify the machining status of the workpiece, so that the line body can better adapt to complex and diverse production process requirements.
9. Customers can configure different models into a highly efficient and practical automatic production line according to the actual conditions such as product type, technical indicators and production requirements.
III.The main equipment parameters
We can customize the machine according to customer needs, please contact us if you need it.
a. Auto armature rotor commutator pressing machine parameters
| Product name | Motor armature commutator pressing machine |
| Armature O.D: | 20-60mm |
| Shaft O.D: | 3-15mm |
| Shaft length: | 32-250mm |
| Armature slot number: | 8-24 slots |
| Commutator O.D: | 8-40mm |
| Speed amplitude modulation: | 0-670Hz |
| Air source: | 6-6Kg/cm2 |
| Total power: | 1.0KW |
| Power source: | AC220V,50/60Hz |
| Weight: | About 400Kg |
| Dimension: | 910*880*1300mm |
b. Double flyer winder armature coil winding machine parameters
| Product name | Armature rotor coil winding machine |
| Wire diameter: | 0.25~1mm |
| Armature O.D: | 20~60 mm |
| Armature stack length: | 10~60 mm |
| Slot type: | straight slot(No more than 36 slots) |
| Armature slots number: | Odd, even slot |
| Counting Range: | 0~99999 |
| Commutator diameter: | 18~40 mm |
| Fly fork speed: | 0~3000 rpm |
| Indexing speed: | 0~3000 rpm |
| Action process: | Single action, automatic |
| Air pressure : | 4~6 Kg/cm2 ,0.5-0.7MPa |
| Machine power: | 4KW |
| Temperature: | -10~40ºC |
| Humidity: | 40~90% |
| Power supply: | 3phase 380V±10% 50/60 Hz |
| Total weight: | about 1,180 Kg |
| Dimension: | 2000(length)×1300(width)×1800(height) mm3 |
| Production efficiency: | 800-900set/class(calculated based on 12slots 24hooks, 20turns) |
c. Fully auto motor armature commutator spot welding machine parameters
| Product name | Armture commutator hotstaking machine |
| Loading method: (choose any one from the following three methods) |
1.Manually loading/unloading |
| Indexing method: | servo indexing |
| Commutator type: | hook or riser |
| Wire diameter: | 0.2mm-1.0mm |
| Armature diameter: | 20mm-60mm |
| Armature Stack length: | 10mm-60mm |
| Shaft length: | 50mm-250mm |
| Commutator diameter: | 10mm-40mm |
| Shaft diameter: | 3mm-17mm |
| Commutator hook/riser number: | ≥3 |
| Zero finding method: | manually place armature, cylinder drive one block for positioning |
| Pressure control method: | spring + cylinder + pressure detection |
| Welding head cooling method: | water cooling |
| Parameter setting: | set on the touch screen and power source , Parameter also can be set |
| Power source control method: | close loop feedback, high accuracy , inversion |
| Compressed air pressure: | 4kg/cm2-6kg/cm2 |
| Welding source power: | three phase AC380V±10% 50HZ 40KW |
| Water cooler power: | three phase AC380V±10% 50HZ |
| Machine weight: | 800kg(for reference) |
| Dimension: | 785(L)x 910(W)x 2100(H)mm 3 (for reference) |
IV.The main equipment picture display
1.The double flyer armature rotor coil winding machine
2. The armature commutator spot welder hot staking machine
3.The armature rotor commutator turning machine
