| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | None |
| Model Number: | ND-LYZ-204 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets/Year |
| Weight: | About 600Kg | Dimension: | 1600*1200*1800mm |
|---|---|---|---|
| Machine Size: | Middle Type | Customized Service: | Available |
| Automatic Grade: | Automatic | After-sales Service: | Overseas Service Center Available |
| Condition: | New | Machine Color: | Ral9010 Or As Per Customer Requirement |
| High Light: | transformer winding machine,motor making machine |
||

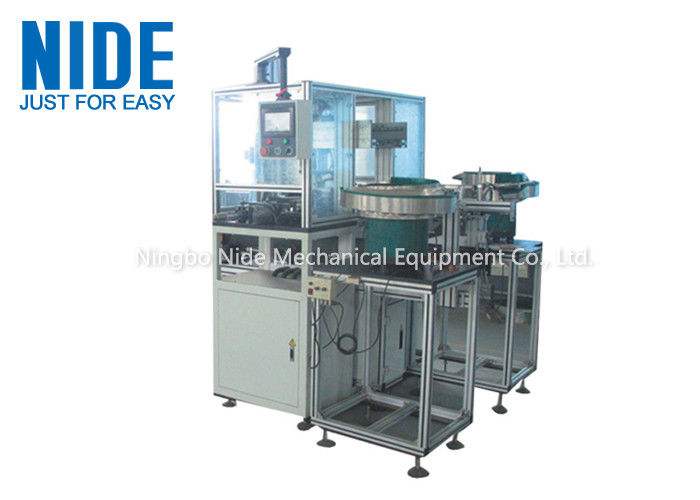

Customized Armature Coil Winding Machine / Plastic End Plate Insertion Machine
This end plate inserting machine is used for inserting the armature plastic end plate. It adopts vibration boult feeding method. After operator put end plate in the vibration boult, machine will automatically do feeding and pressing process.
(1) Machine function and characteristic
Auto armature plastic end plate pressing machine is used for inserting the armature plastic end plate. It adopts vibration boult feeding method, operator only need to put end plate in the vibration boult, automatic feeding and pressing. High efficiency and precision.
(2)Technical data:
| Armature OD | 20~60mm |
| Shaft OD | 3~20mm |
| Shaft length | 32~250mm |
| Total power | 1.5KW |
| Slot number | 8~24 Slots |
| Air supply pressure | 4~6 Kg/cm2 |
| Material feeding mode | Vibration boult feeding |
| Voltage | Single phase AC220V 50/60Hz |
| Weight | About 600Kg |
| Dimension | 1600*1200*1800mm |
(3)Competitive advantages
Variety of application, easy operation.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
We could customize machine for our customer.
This machine is of High efficiency and precision.
Motor armature commutator Plastic End Plate Insertion machine
Motor rotor commutator Plastic End Plate Insertion machine
