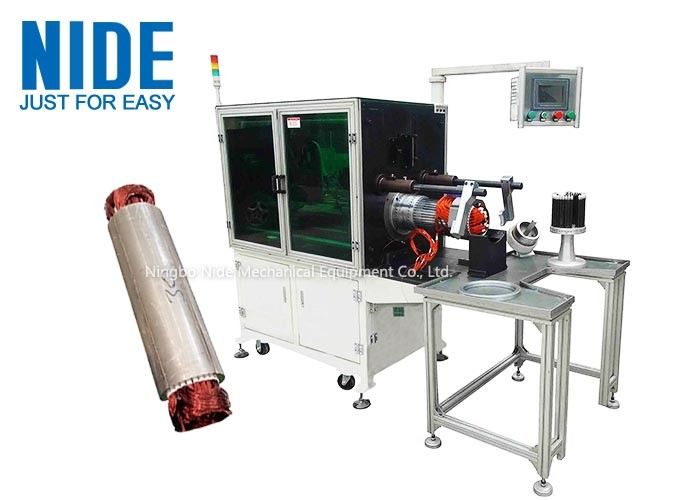

Horizontal Automatic Stator Coil Winding Inserting Machine / Machinery



Quick Detail:

1. The stator coil inserting machine  can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.
2. The coil inserter is controlled by PLC.
3. This coil inserting machine is designed with a horizontal frame.
4. easy operation and convenient tooling change.
5. This can wind coil and insert wedge automatically.

Description:

This machine is controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting. Horizontal Winding Inserting Machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge fedding mode can be set according to different motor. Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.



Application:

It is suitable for stators met the below specification.

Technical parameter:

Stator I.D

110~210mm

Stator O.D

175~300mm

Stator stack length

≤250mm

Slot number range

16~48 slots

Appropriate wire

0.2~1.2mm

Input

380V/50Hz

Power source

380/50/60Hz4Kw

Dimension

1000*2000*2000mm

Weight

≈ 1850kg



Competitive advantages:

Easy operation and convenient tooling change. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.

Variety of application, easy operation.

We have Overseas Service Center.

Machine is controlled by PLC. All the parameter can be set in the touch screen.

It is suitable for stators with different model number and dimension.

The operation and tooling change process is easy.

We could customize machine for our customer as per their requirement.

We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

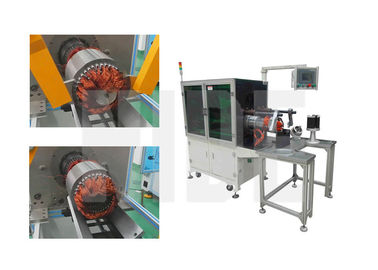

Stator sample made by this machine
