Product Details:
Place of Origin: China
Brand Name: Nide
Certification: CE
Model Number: BDXSR-2WII-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Condition: Ew Working Station: Two
Machine Power: 1/5KW Machine Weight: 1000KG
Rotor Diameter: 25~40mm
High Light:

rotor balancing machine

,

motor rotor balancing machine

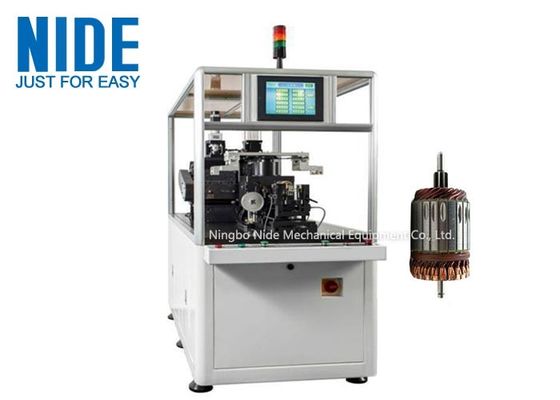

Powerful Durable Armature Balancing Machine Low Noise Precision





Quick Detail:


1. There are 2 working stations
2. High efficiency and precision.
3. All the data can be set on the touch screen.
4.Cutting depth and length can be controlled.



Description:

The two-station auto-balancing machine is a mechanical-electrical intergrated intellectual system which is composed of many mechanical, air and electrical components. Machine is equippedwith touch screen, all the data can be displayed and set in it. High efficiency and precision.PLC controlled, all the data can be set on the touch screen.



Technical Parameter



Items





Details



Type Two-station(single-cutter/double-cutter)



Armature apply range

Armature below 1.6KG

Stack height:20-60mm

Armature diameter: Φ25-40mm(type Ⅱ)

Armature diameter: Φ40-70mm(type Ⅲ)

Balancing speed 1500-2200rpm
Milling method R-shape or V-shape
Power AC380V
Air supply 0.4~0.6Mpa



Initial unbalance

In accordance with difference of rotor radius and cutting depth,

for example, the max single cut on diameter of 32mm≤500mg, the max single cut on diameter of 40mm ≤800mg

Cycle time

12-15s (type Ⅱ testing & process)

18-20s (type Ⅲ testing & process)

Residual unbalance

eccentricity

Better than the China national standard Grade 6.3

Volume

(length x width x height)

1700 X 850(1000) X 1550 mm





During the cut process, there will be some deviation between the cutter position and armature center on the gripper. This will cause the cut effect become unstable. This can be fixed by turning the cutter position. Powerful Durable Armature Balancing Machine Low Noise Precision 0



Maintenance of the system
A. Daily Maintenance
1. Clean the dust and ash on the surfaces of the machine, keep every part clean.
2. Ensure the power and air supply function well before starting the system.
3. Check the vulnerable components (leather conveyors, ceramic sticks, block piece, etc).
Please replace the damaged ones.


B. Monthly Maintenance
1. Check damping of every air cylinder to ensure they can function smoothly.
2. Lubricate every linear guide and bearing.
3. Add rust preventing oil on the components.
4. Add lube into the flow nipple on the cutters to lubricate the bearings.
5. Check the filters of the air compressors, dewater them regularly.
6. Check the status of the dust collector and the filter net to ensure they can function well.
l Season Maintenance
1. Demagnetize cutters and fixture seats.
2. Check if the cutters are filthy or wearing (1 sharpening/ 0.1 million uses). Check if the
screws are tightened.
3. Check the vulnerable components (leather conveyors, ceramic sticks, block piece, etc).



C.Yearly maintenance
1. Check the flexibility of the gears. Replace those that can’t function well.
2. Check if the spring pieces are out of shape. Replace those with distortions.
3. Check if the screws on the electrical vortex sensors are tightened and if the direct current
voltage between “O UT+” and “COM-” is between -1 and -2.
4. Check the fan in the electric equipment cabinet. Check the voltage of every electric circuit.
5. Check air out line of the air connector.
