155 degree F class DM Insulation Material Stator slot Insulation Paper

155 degree F class DM Insulation Material Stator slot Insulation Paper

  • 155 degree F class DM Insulation Material Stator slot Insulation Paper
  • 155 degree F class DM Insulation Material Stator slot Insulation Paper
  • 155 degree F class DM Insulation Material Stator slot Insulation Paper
155 degree F class DM Insulation Material Stator slot Insulation Paper
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-4
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper
Name: Motorcycle Motor Parts Certification: CE

155 degree F class DM Insulation Material Stator slot Insulation Paper





DM insulation paper material characteristics and uses:

DM insulation paper is a two-layer soft composite material bonded by polyester film and polyester fiber non-woven fabric;
Heat resistance grade F;
Has excellent mechanical properties, dielectric properties and adhesive properties;
It is suitable for slot insulation, inter-turn insulation and pad insulation in motors and electrical appliances.

Precautions when installing motor insulation paper





The correct orientation of the smooth side of the motor insulation paper can improve the insulation performance of the motor and protect the motor casing and windings, which is crucial for the normal operation of the motor. During the installation process of motor insulation paper, you must pay attention to the following points to ensure the quality of motor insulation paper and installation quality and ensure the normal operation of the motor.

1. The motor insulation paper must be inspected before being installed on the motor. If the motor insulation paper is found to be wrinkled or damaged, it must be replaced in time.
2. Before installing the insulation paper on the motor, the motor and windings need to be cleaned. If there are impurities such as oil or dust, it will affect the normal operation of the motor.
3. After the motor insulation paper is installed, the motor needs to be tested for insulation to ensure that the motor’s insulation performance meets the requirements.





Motor Insulation paper Product parameters:

Parameter name Unit parameter
Insulation paper thickness mm 0.13 0.15 0.17 0.20 0.22 0.24 0.26 0.28 0.30 0.36 0.42 0.48

Quantitative and

deviation

gsm 143±14 162±16 182±18 217±22 252±25 287±29 322±32 357±36 377±38 462±46 532±53 602±60

film

thickness

mm 0.025 0.036 0.050 0.075 0.100 0.125 0.150 0.175 0.190 0.250 0.300 0.350
Breakdown voltage KV ≥5 ≥7 ≥9 ≥11 ≥12 ≥12 ≥13 ≥15 ≥16 ≥20 ≥22 ≥23
Breakdown voltage after bending KV ≥5 ≥7 ≥8 ≥10 ≥11 ≥11 ≥12 ≥14 ≥15 ≥18 ≥20 ≥22
Tensile strength (longitudinal) N/CM ≥120 ≥140 ≥140 ≥180 ≥220 ≥240 ≥260 ≥270 ≥280 ≥340 ≥380 ≥410
Tensile strength (lateral) N/CM ≥80 ≥100 ≥110 ≥150 ≥190 ≥210 ≥230 ≥250 ≥260 ≥300 ≥340 ≥370
Elongation (longitudinal) % ≥15 ≥20
Elongation (lateral) % ≥20 ≥20
Normal adhesion

Not layered



Hot adhesion Not layered,No foaming, No glue (200±2°C, 10min)

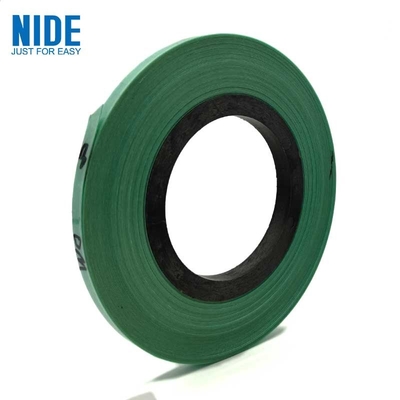

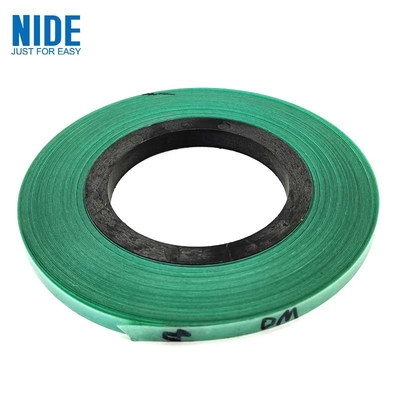

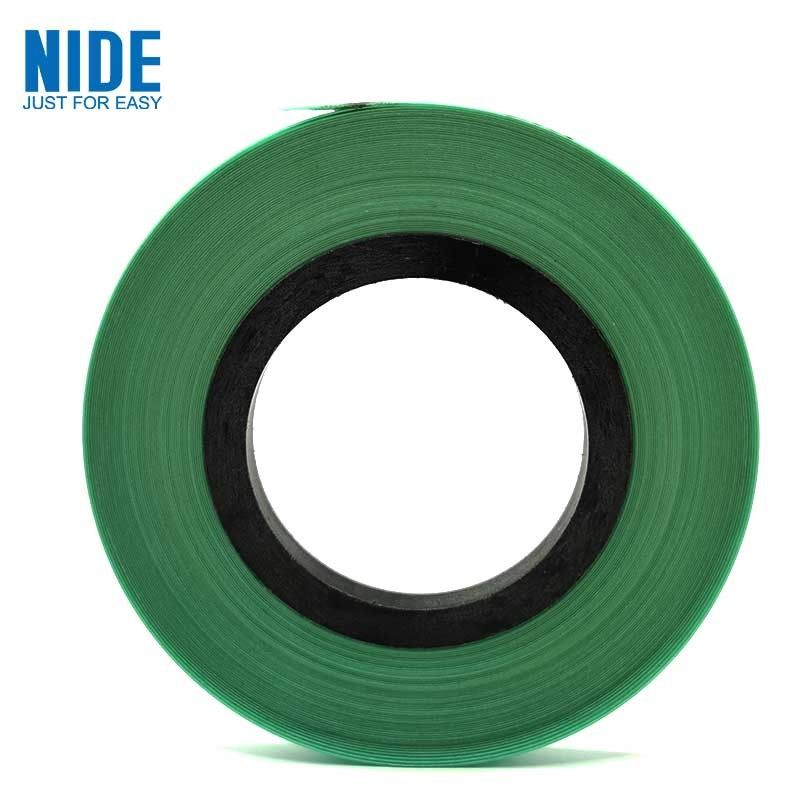

Motor Insulation paper picture show

DM insulation paper

6644 DM insulation paper material manufacturer

6644 DM insulation paper material wholesale



Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
