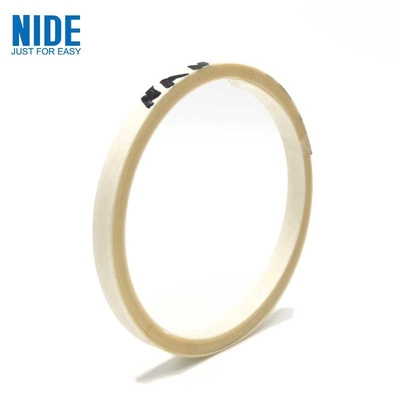

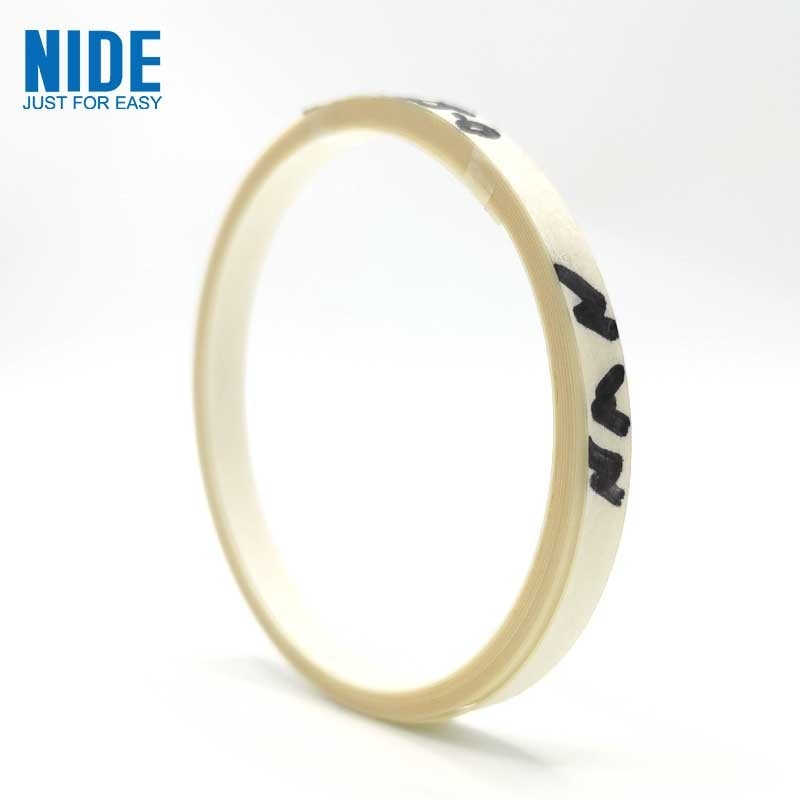

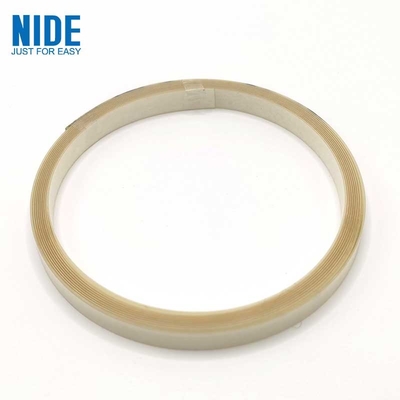

6640 Class H insulation paper NMN motor insulation material custom

6640 Class H insulation paper NMN motor insulation material custom

  • 6640 Class H insulation paper NMN motor insulation material custom
  • 6640 Class H insulation paper NMN motor insulation material custom
  • 6640 Class H insulation paper NMN motor insulation material custom
6640 Class H insulation paper NMN motor insulation material custom
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-18
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Paper Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper
Name: Motorcycle Motor Parts Certification: CE

6640 Class H insulation paper NMN motor insulation material custom



6640 NMN insulation material is a three-layer composite material composed of one layer of polyester film and two layers of Nomex paper bonded with H-grade resin. It has excellent insulation properties and high temperature resistance. Mainly used as insulation and support materials for motors to protect the normal operation of the motor.

NMN insulation paper is widely used in motor windings and separators. The material has high tensile strength, good adhesion, wear resistance and high temperature resistance, and has a long service life. Therefore, it is widely used in various power tools, household appliances, aircraft, ships and other fields.



6640 NMN paper specification

Thickness 0.15mm-0.47mm
Width 5mm-914mm
Thermal class H
Working temperature 180degree
Color Light yellow

6640 Class H insulation paper NMN motor insulation material custom 0

6640 Class H insulation paper NMN motor insulation material custom 1



 Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
