Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding

Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding

  • Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding
  • Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding
  • Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding
Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6642
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper

Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding





6642 Motor DMD mylar polyester film is a three-layer composite material made of one layer of polyester film and two electrical polyester fibre nonwovens and glued by H class resin. It shows excellent mechanical property. it is widely used in slot, phase and liner insulating of motors.



Motor DMD mylar polyester film specification

Thickness 0.13mm-0.47mm
Width 5mm-1000mm
Thermal class H
Working temperature 180 degree
Color

Light blue

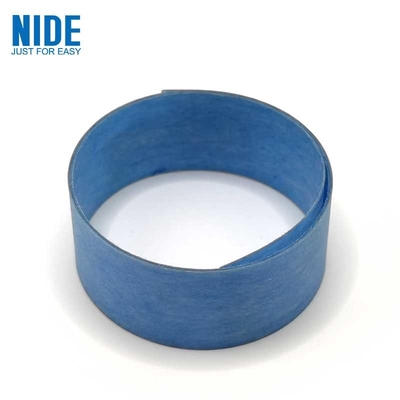

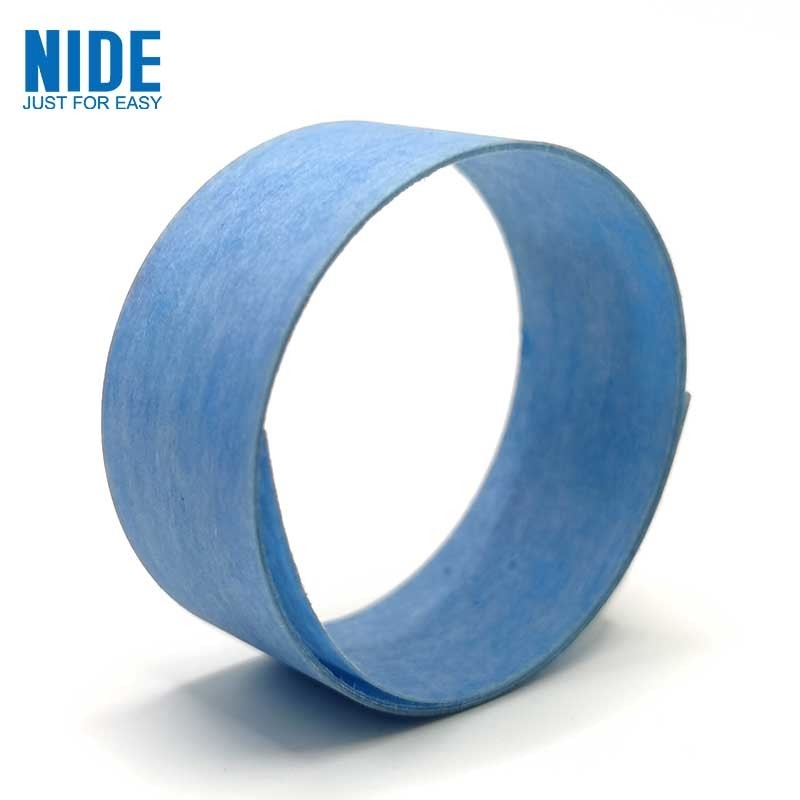

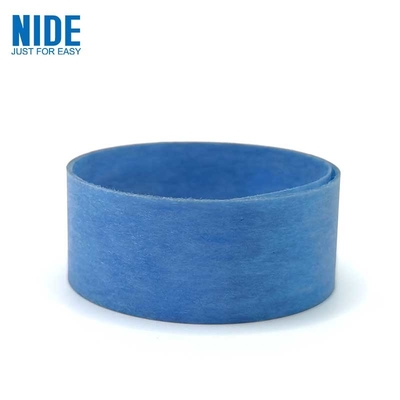

Picture show

Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding 0

Motor DMD Mylar Class H Polyester Film Insulation Paper for coil winding 1



Package

Inner packaging: polyethylene film

Outer packaging: carton or woven bag





Storage conditions

Can be stored indefinitely under normal conditions (20°C, 50% r.h.)





Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET,Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
