| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-JYZ-6640D |
| Minimum Order Quantity: | 100 kilogram |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 kilogram per month |
| Product Name: | Electrical Insulation Paper Material | Color: | Customized |
|---|---|---|---|
| Used For: | Motor Winding | Type: | Motor Insulation Paper |
| Name: | Motorcycle Motor Parts | Certification: | CE |
| High Light: | NMN Thermal Paper,Class H NMN Thermal Paper,Armature Slot Insulating NMN Thermal Paper |
||

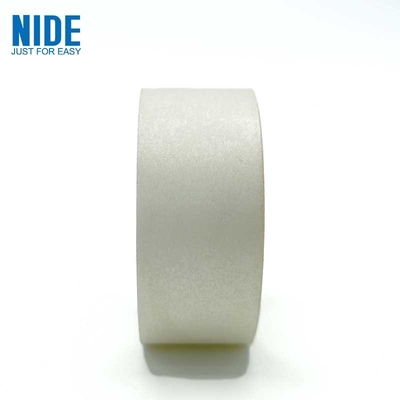

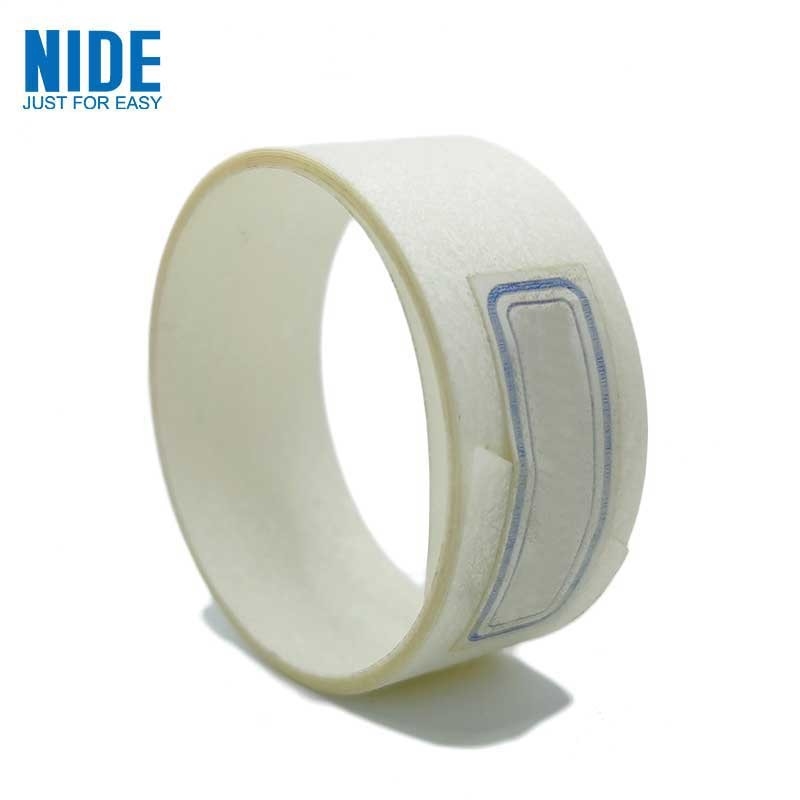

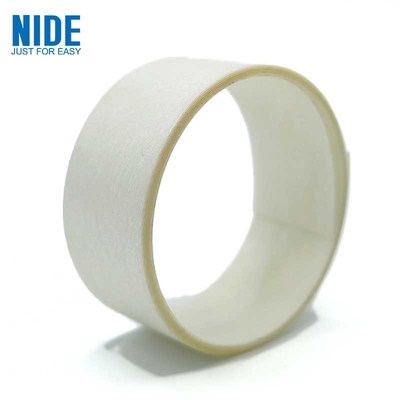

Class H Armature slot insulating NMN thermal paper
6640 NMN thermal paper is a three-layer composite material made of one layer of polyester film and two Nomex paper and glued by H class resin. It shows excellent mechanical property and electrical property. it is widely used in slot, phase and liner insulating of motors.
thermal paper specification
| Thickness | 0.15mm-0.47mm |
| Width | 5mm-914mm |
| Thermal class | H |
| Working temperature | 180degree |
| Color |
Light yellow |
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Contact Person: Herbert
Tel: +8615067409300
