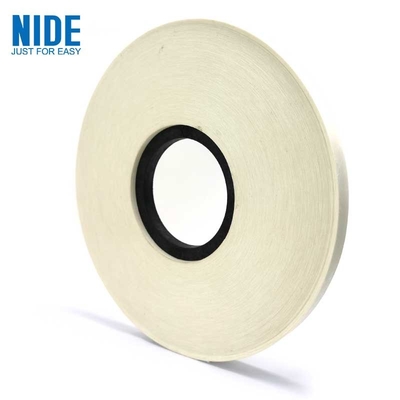

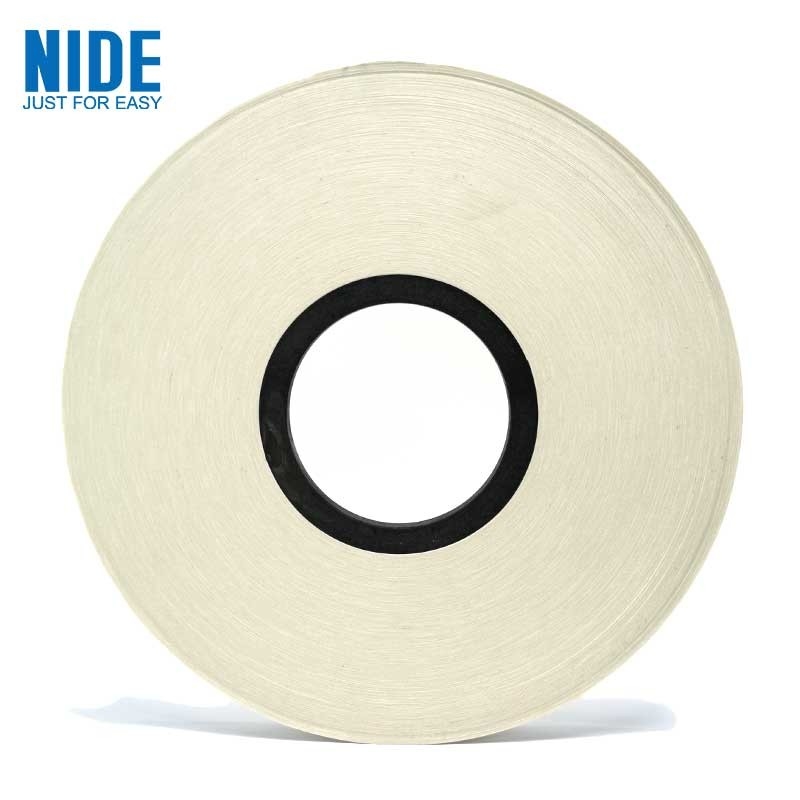

Nomex calendered insulation paper for stator phase insulating Class C

Nomex calendered insulation paper for stator phase insulating Class C

  • Nomex calendered insulation paper for stator phase insulating Class C
  • Nomex calendered insulation paper for stator phase insulating Class C
Nomex calendered insulation paper for stator phase insulating Class C
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-10
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Paper Material Color: Customized
Used For: Motor Winding Type: Motor Insulation Paper
Name: Motorcycle Motor Parts Certification: CE

Nomex calendered insulation paper for stator phase insulating Class C



NOMEX electrical insulation materials have a unique and appropriate balance of properties and are widely used in slot, phase and lining insulation of transformers, alternators and other motors and other electrical materials to improve the reliability of electrical insulation. Nomex T410 Nomex calendered paper for stator phase insulation is a type of calendered paper. It exhibits excellent mechanical properties, electrical properties and resilience.



Features

NOMEX insulation material products have excellent properties. They are a synthetic aromatic amide polymer with the following excellent properties:

1. Inherent dielectric strength

2. Excellent mechanical toughness

Calendered NOMEX insulation material has very high strength, good elasticity, tear resistance and abrasion resistance, and thinner products are flexible;

3. Good thermal stability

4. Strong chemical compatibility, basically unaffected by most solvents, and very resistant to acid and alkali corrosion. It is also compatible with all varnishes, adhesives, transformer fluids, lubricants and cooling agents. In addition, it will not be damaged by insects, fungi and mold;

5. Good low temperature performance

6. Not sensitive to moisture

7. Radiation resistance

8. Non-toxic/flammable and will not cause any known toxic reactions to humans or animals. It does not melt in the air and does not support combustion. It enhances the function of the transformer and improves the life and reliability of the motor.



Application

NOMEX insulation materials are widely used in motors and generators for slot wedge insulation, phase insulation, end laminates, etc. It makes all kinds of rotating equipment (AC and DC motors, random coils and molded wire windings, and even large turbine generators) better insulated, better mechanically, higher in safety, and longer in service life.



Nomex calendered paper for stator phase insulating specification

Thickness 0.05mm-0.76mm
Width 5mm-914mm
Thermal class C
Working temperature 220 degree
Color

White

Nomex calendered insulation paper for stator phase insulating Class C 0

Nomex calendered insulation paper for stator phase insulating Class C 1

Nomex calendered insulation paper for stator phase insulating Class C 2



 Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
