Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm

Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm

  • Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm
  • Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm
  • Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm
Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-21
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Electrical Insulation Wedge Material Color: Customized
Used For: Motor Armature Coil Winding Type: Red Vulcanized Fiber Insulation Film

Red steel paper is a kind of processed paper with high hardness. The finished products include flat sheets, rolls, tubes, etc. The paper is hard. The paper is hard. It has excellent elasticity, wear resistance, corrosion resistance, heat resistance, mechanical strength, insulation properties and machining and molding properties.

Red Vulcanized Fiber is made of cotton pulp, wood pulp and zinc oxide. It is conglutinated by the cementing compound under thermophilic temperature. With a hand feature and good elasticity, it shows excellent abrasive resistance, heat resistance, mechanical strength and electric strength

Thermal class: F

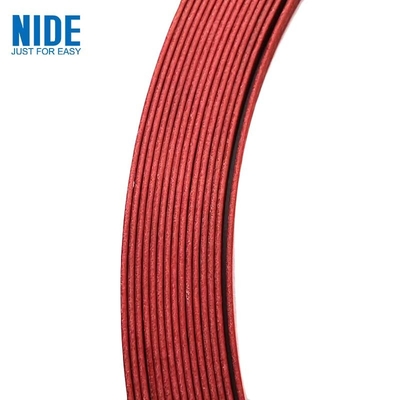

Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm 0

Application:

Red steel paper is widely used in slot, phase and liner insulating of motor, transformer and so on.



Item Raw material Raw material weight (g) Chemical composition Chemical percentage(%)
Vulcanized fibre paper Cotton fiber 80 CH12O6 80
Wood fiber 10 C6H12O5 10
Dye 0.36 Na6Al4Si6S4H20 0.35
ZnSO4 0.15 ZnSO4 0.15
H2O2 7.5 H2O2 7.5
Filler 2 TiO2 2

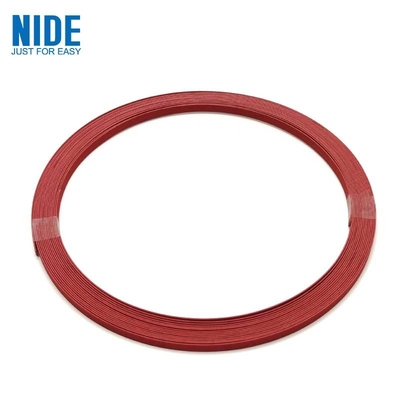

Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm 1

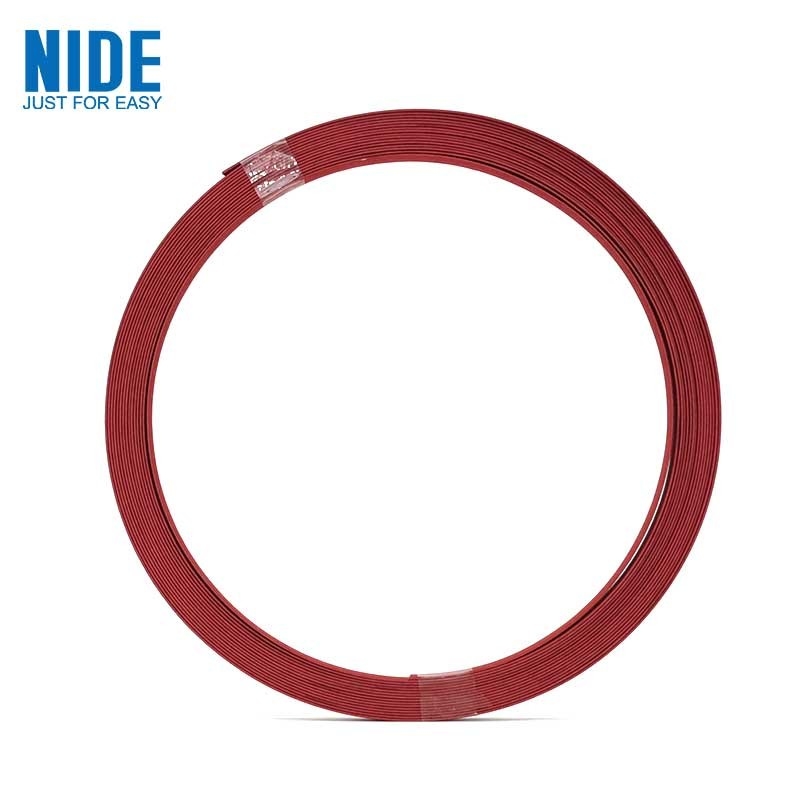

Class F Motor Slot Wedge Red Vulcanized Fiber 0.15/0.8mm 2



Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

1. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, Red Vulcanized Fiber)

2. Insulation material dimension: width, thickness, tolerance.

3. Insulation material thermal class: Class F, Class E, Class B, Class H

4. Insulation material applications

5. Required quantity: normally its weight

6. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
