Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-RBHQ-78 |
Minimum Order Quantity: | 100000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | Metal Shell KSD9700 Temperature Control Switch Thermal Protector | Color: | Natural |
---|---|---|---|
Used For: | Industrial Water Pump Motor | Size: | Custmoized |
High Light: | KSD9700 Temperature Control Switch Thermal Protector,Metal Shell Overheat Protector,Electric Motor Overheat Protector 5A250V |
Metal shell KSD9700 temperature control switch thermal protector 5A250V-Thermal protector thermostat temperature switch
Our KSD9700 thermal protector can quickly sense temperature, provide overvoltage protection, meet environmental protection standards, and is safe and reliable. It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life, and less trouble to radio. It is widely used in household water dispensers, disinfection cabinets, microwave ovens, electric coffee pots, electric cookers, air conditioners, etc. Electric heating appliances.
KSD9700 temperature control switch is a kind of shaped bimetal as a heat sensitive reaction element. When the temperature or current increases, the heat generated is transferred to the bimetal disc. When the temperature reaches a predetermined value, it will act quickly to make the contact Disconnect, cut off the circuit. When the temperature drops to a predetermined reset setting value, the bimetallic disc recovers quickly, closing the contacts and connecting the circuit. The temperature control shell adopts high temperature resistant engineering plastic shell, which has the characteristics of small size, high sensitivity, large contact capacity, fast heat transfer speed, long life, and convenient installation.
Product parameter
Product name: | 35 degree 5A250V temperature thermal protector |
Type | Overheat protector/ Thermal fuse |
Custom processing: | Yes |
Size | custmoized |
Temperature control | range 50-180 (℃) (special specifications can be customized according to customer requirements) |
Reset temperature: | 5℃-50℃ lower than rated operating temperature, reset tolerance ±15℃, |
Tolerance | ±5℃ |
Maximum working current: | 5A (8A) |
Working voltage | 250V |
Type | Shape Wrap |
Fusing speed | M/medium speed |
Contact life: | >10000 times Contact resistance ≤50mΩ |
Dimensions: | plastic shell 21×8×5, metal shell 21×7.2×3.5 (special specifications can be customized according to customer requirements) |
Used | Household appliances, household appliances, machinery and equipment |

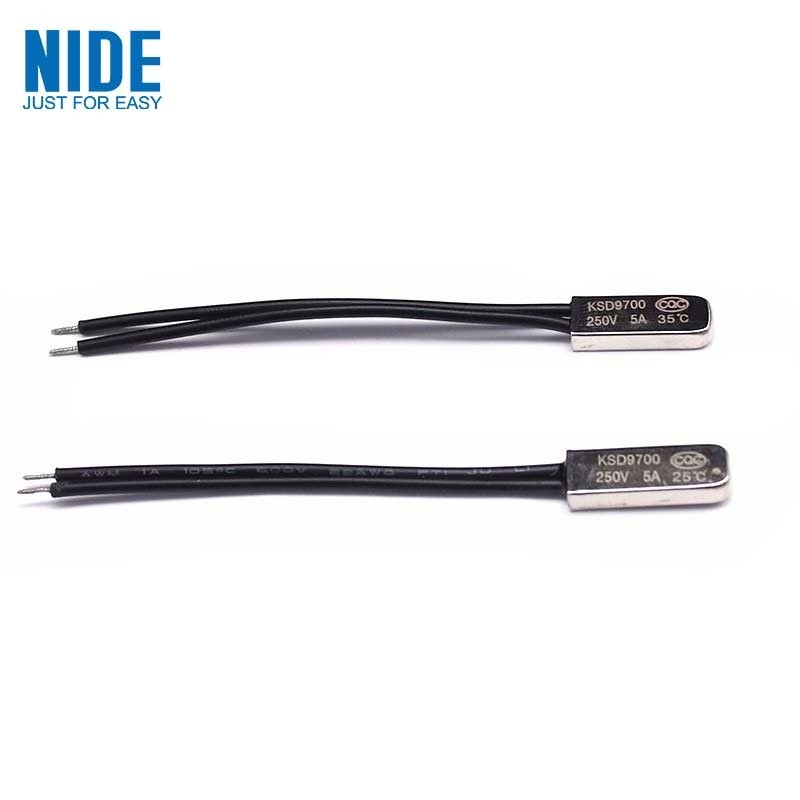

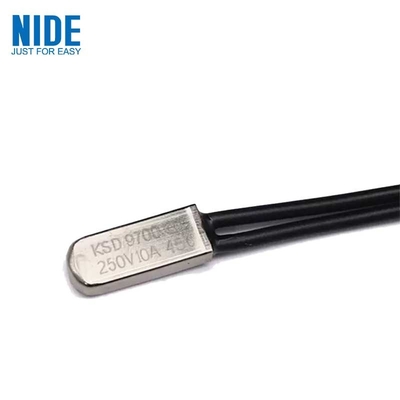

Picture show
Customized Thermal Protector :
1. Customized lead wire: Customized wire material, length and color according to customer needs
2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.
3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
