| Place of Origin: | China |
| Brand Name: | NIDE |
| Model Number: | NDPJ-RBHQ-80 |
| Minimum Order Quantity: | 5000 |
|---|---|
| Price: | negotiate |
| Packaging Details: | Suitable for sea transportation |
| Delivery Time: | negotiate |
| Payment Terms: | negotiate |
| Supply Ability: | 100000/month |
| Size: | Customized | Product Name: | Home Appliance Motor 7AM Thermal Protector |
|---|---|---|---|
| Voltage: | 110V-220V | Lead Wire: | Optional |
| Warranty: | 1 Year | Package: | Carton/Wooden Box |
| Color: | Red/Black | Material: | Aluminum/Copper/Iron |
| High Light: | Aluminum Motor Protectors 7AM,Customized 7AM Thermal Protector,Home Appliance Electric Motor Thermal Protector |
||

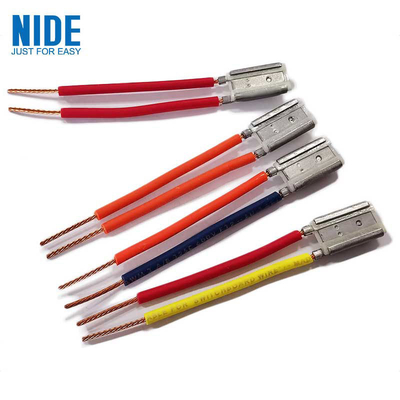

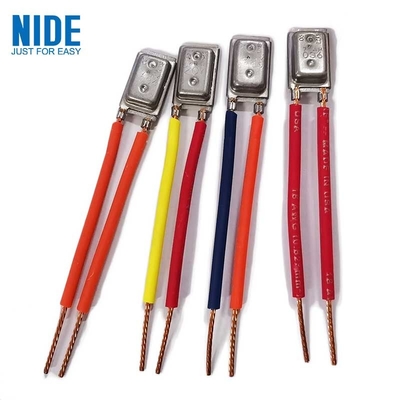

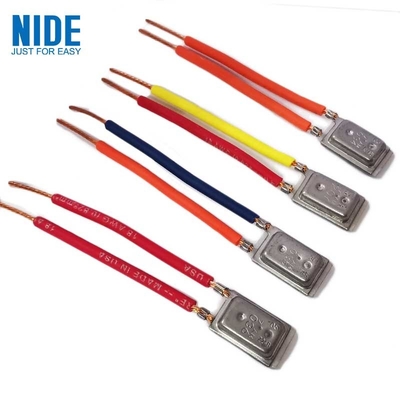

7AM Thermal Protector Home Appliance Motor Protectors
7AM Thermal Protector delivers the maximum protection in the smallest package . The bimetal disc welded in a steel can provides excellent thermal sensitivity and maximum protection properties. Each 7AM temperature rating has a bimetal disc specifically manufactured for that rating. Each device is then calibrated and checked for opening temperature. This results in optimum snap–acting open and reset characteristics necessary to achieve consistent performance over the required cycle life.
7Am Thermal Protector Features
Positive make and break
Individually temperature checked
Compact, miniature size
Repeatable temperature performance over life
Gasketed steel case suitable for most impregnation processes
Current and temperature sensitivity for maximum design flexibility and application
Wide selection of leads and insulating sleeves
7Am Thermal Protector Specifications
| Product name: | 7AM Thermal Protector Motor Protector |
| Rated Voltage: | 125 Vac / 250 Vac |
| Dimensions: | 20.2 x 10.8 x 4.9 mm (including terminals) |
| Life: | 10,000 cycles / 8 A / 250 Vac (see approvals sheets) |
| Open Temperature: | 70°C to 175°C in increments of 5°C |
| Temperature Tolerance: | ±5°C |
| Differential Temperature: | 19°C to 54°C, depending on open temperature |
| Seal: |
High-seal and low-seal gasket material available |
