Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-RBHQ-81 |
Minimum Order Quantity: | 100000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | 7AM Series Thermal Protectors Bi-metal Protector | Color: | Natural |
---|---|---|---|
Used For: | Industrial Motor, Washing Machine ,air Conditioner | Size: | Custmoized |
High Light: | Industrial Motor Thermal Protectors 7AM,7AM Thermal Bimetal Protector,Electric Motor Bimetal Protector |

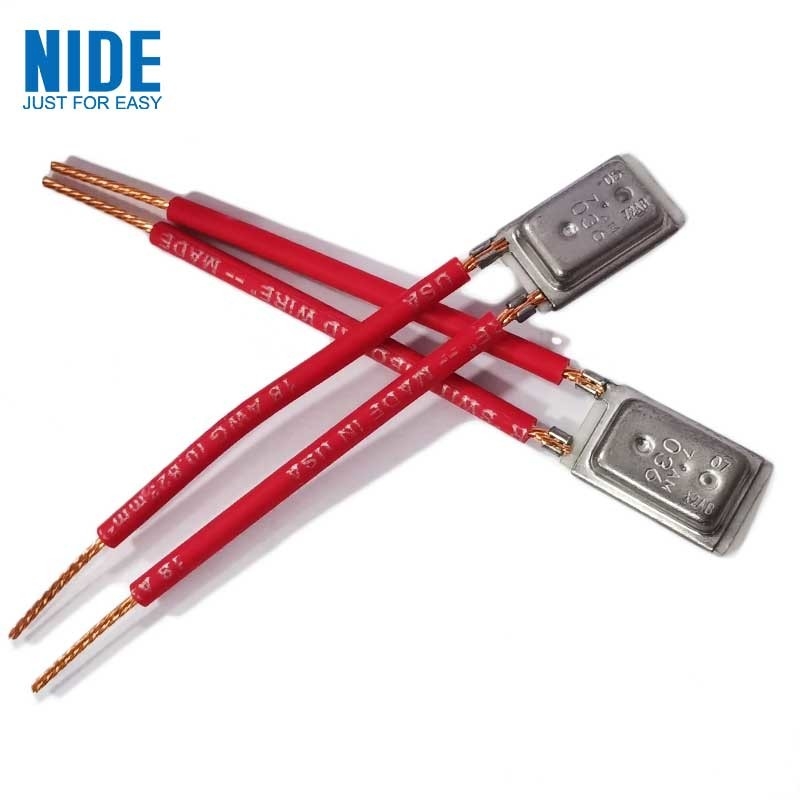

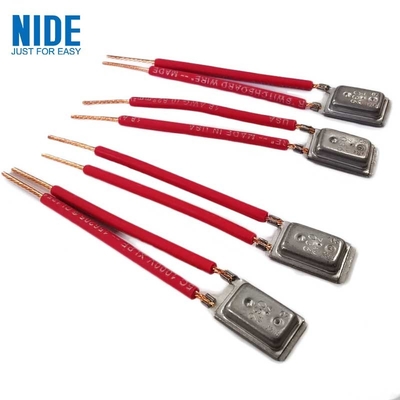

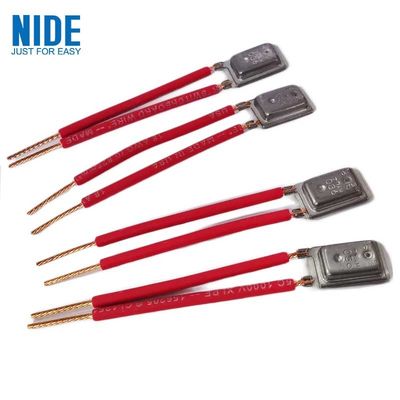

7AM Series Thermal Protectors Bi-metal Protector
The 7AM thermal protector prevents overheating in a variety of consumer, industrial and commercial products. It is a miniature, snap-acting, thermally operated device that is a proven performer in protection technology. We can provide these units with a variety of leads, terminations and insulating sleeves to meet specific require- ments.
How the 7AM protects against overheating
Current flows through your lead connection into the can crimp terminal, through the can member, bimetal disc, and mating contacts. The current completes its path by exiting through the plate member and the integral plate crimp terminal to your lead connection.
As the temperature rises, the heat is transferred to the bimetal disc. The disc then snaps open at the factory-calibrated opening temperature, thus breaking the current path.
The bimetal disc snaps closed when the reset temperature level is achieved.
7AM Thermal Protector Applications
Fluorescent lighting ballasts
Transformers
HID ballasts
Vacuum cleaners
Recessed lighting fixtures
Automotive accessory motors, solenoids
PC boards
Battery packs
Battery chargers
Permanent split capacitor motors
Shaded pole motors
7AM Thermal Protector Features
Miniature size
Individually temperature calibrated and checked
Positive make and break
Current rating up to 22 Amps
Reliable temperature performance over life of protector
Customized Thermal Protector :
1. Customized lead wire: Customized wire material, length and color according to customer needs
2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.
3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
