Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-RBHQ-84 |
Minimum Order Quantity: | 100000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | 7AM Small Thermal Protector Series | Color: | Natural |
---|---|---|---|
Used For: | Household Appliances, | Size: | Custmoized |
Highlight: | 7AM Small Thermal Protector,Motor Thermal Overload Protectors,Plastic Thermal Overload Protectors |

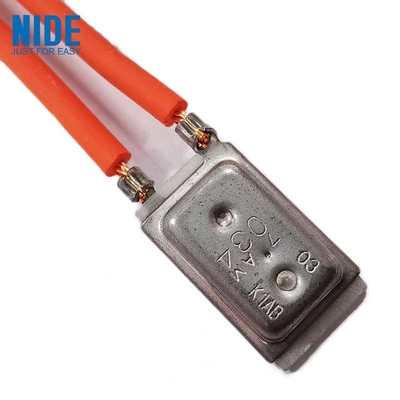

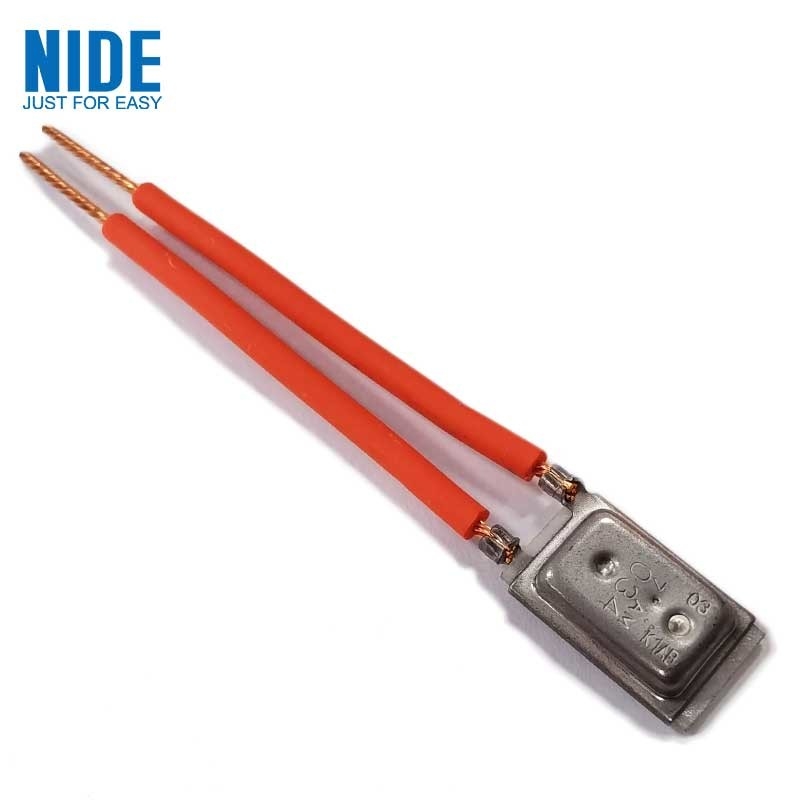

7AM Small Thermal Protector Series Motor Thermal Protectors
7AM thermal protector advantage
The 7AM thermal protector is a miniature, quick-acting, thermal-actuating device that uses a special bimetal disc. The 7AM thermal protector prevents overheating in a variety of consumer, industrial and commercial products.It is suitable for direct or indirect overheat protection of electric heating appliances such as motors, transformers, lamps, electrical appliances, instruments and equipment. In the field of thermal protection technology, it is a widely used protection element.
Miniaturized design;
Every trip temperature is strictly corrected and tested;
Bimetal discs are 100% fast-moving;
It has the dual performance of sensing temperature and current;
Various specifications and lengths of wire can be riveted according to customer requirements;
Working principle of 7AM thermal protector
The core of the 7AM small thermal protector is the kick-type bimetal disc. The current passes through the bimetal element. When the current increases or the ambient temperature rises to the set temperature value, the bimetal element moves quickly, opens the contact, and cuts off the circuit. When the device cools down to a safe operating temperature, the bimetal reed quickly resets, the contacts close automatically and power is restored.
7AM thermal protector Details
Product: | 7AM Thermal Protector Temperature Bimetal Overload Heat Protector Switch |
Type: | Normally Open or Normal Close |
Application: | Household, Home Appliances |
Power Source: | Electric |
Material: | Plastic or Metal |
Voltage: | 250V |
Temperature Range: | 65C-160C |
Life Cycle: | 10000/100000 Times |
Tolerance: | ±5℃ |
Reset Type: | Auto/Manual reset |
Packing: | PE Bag, Carton |
5 Notes:
5.1 The heating rate of action temperature detection should be controlled to 1 °C/1min;
5.2 The protector shell shall not withstand strong impact and pressure during use.
Customized Thermal Protector :
1. Customized lead wire: Customized wire material, length and color according to customer needs
2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.
3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
