| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-JYZ-1009 |
| Minimum Order Quantity: | 100 kilogram |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 kilogram per month |
| Product Name: | Wheel Hub Motor Slot Wedge Insulation Material | Color: | GREEN/BLUE/RED |
|---|---|---|---|
| Used For: | Electrci Wheel Hub Motor Stator Armature Coil Winding | Type: | Motor Insulation Paper |
| Grade: | F | Certification: | CE |
| High Light: | Wheel Hub Motor Slot Wedge,Auto Motor Slot Wedge,Electric Motor Slot Insulation Wedge |
||

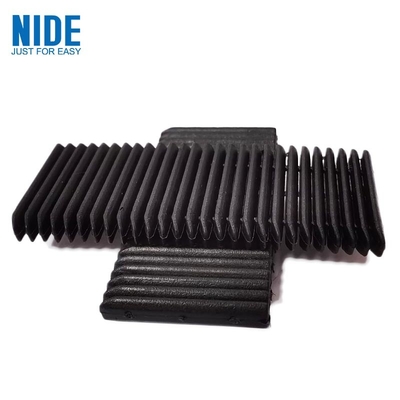

Customized Wheel Hub Motor Slot Wedge For Auto Motor Manufacturing
The slot wedge is made of a high-temperature-resistant material, such as glass fiber or aramid fiber composite. This material is able to withstand the high temperatures generated by the motor during operation.The main purpose of the slot wedge is to insulate the windings of the stator from the metal laminations. By filling the slots and providing a barrier between the windings and the laminations, the slot wedge helps to prevent the windings from moving or vibrating during operation, which can cause electrical shorts and reduce the efficiency of the motor.
The slot wedge is an important component of an electric wheel hub motor used in various electric vehicles such as bicycles, scooters, and motorcycles.
NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.
Product parameter
| Product name | F 6641/6630 DMD motor insulation paper |
| Model: | 6641F grade DMD insulation paper |
| Grade: | F grade |
| Color: | blue/green/red |
| Thickness: | 0.1~0.5 (mm) |
| Width: | 1030 (mm) |
| Size: | 1000 (mm) |
| Thickness: | 0.45 (mm) |
| Features: | Good insulation performance, high temperature and high pressure resistance |
| Heat resistance: | 130-180 degrees |
| Custom: | Yes |
| Packing description: | carton |
Product Usage
1. Motor product industry: automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .
2. Electronic and electrical industry: ballasts, LED power supplies, transformers, filters, transformers, inter-turn gasket insulation.
3. Wire and cable industry: cable wrapping insulation tape.
The company has slitting, stamping forming, and testing equipment to ensure the quality of various insulating forming materials.

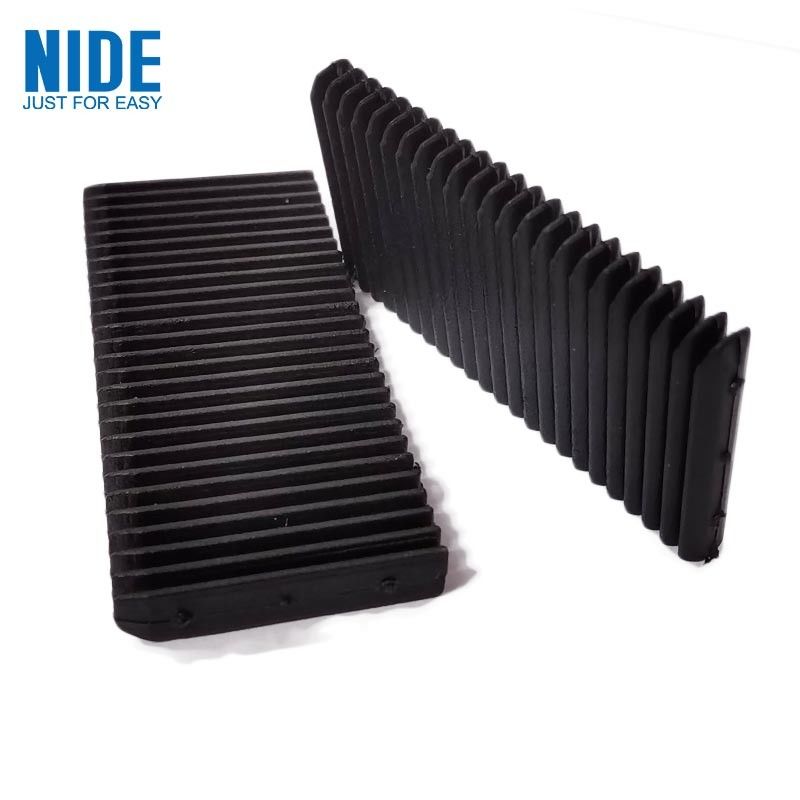

Picture show
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
