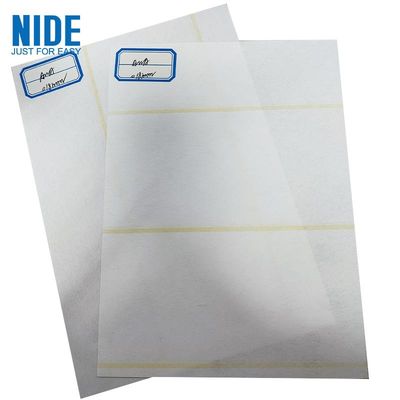

Custom Class F AMA Insulation Paper 0.18mm For Motor Winding

Custom Class F AMA Insulation Paper 0.18mm For Motor Winding

  • Custom Class F AMA Insulation Paper 0.18mm For Motor Winding
  • Custom Class F AMA Insulation Paper 0.18mm For Motor Winding
Custom Class F AMA Insulation Paper 0.18mm For Motor Winding
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-1004
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: Class F AMA Insulation Paper Color: GREEN/BLUE/RED
Used For: Motor Stator Armature Coil Winding Type: Motor Insulation Paper
Grade: F Certification: CE

Custom Class F AMA Insulation Paper 0.18mm For Motor Winding





AMA Insulation material is a soft composite material, a three-layer composite non-image paper made of polyester film coated with adhesive and bonded with two-sided aramid paper. The insulation grade belongs to F-class insulating paper (temperature resistance 155 degrees Celsius).



Our AMA insulating paper combines the excellent high temperature resistance of aramid paper, good mechanical toughness and good dielectric strength of polyester film. It is widely used in electrical equipment, and is suitable for inter-slot insulation, inter-turn insulation and liners of F-class motors insulation.





AMA Insulation Paper



Custom Class F AMA Insulation Paper 0.18mm For Motor Winding 0





 Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.



electric motor components
