Name: 6021 Motor Insulating Paper Milky White PET Insulating Film Slot Paper
Brand: NIDE
SKU: NDPJ-JYZ-6021A
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (183 reviews)

Home Products Electric Motor Spare Parts

6021 Motor Insulating Paper Milky White PET Insulating Film Slot Paper

Product Details:

Place of Origin:	China
Brand Name:	NIDE
Certification:	CE
Model Number:	NDPJ-JYZ-6021A

Payment & Shipping Terms:

Minimum Order Quantity:	100 kilogram
Price:	negotiable
Packaging Details:	Wooden case suitable for sea transportation
Delivery Time:	30 working days
Payment Terms:	L/C, T/T
Supply Ability:	10000000 kilogram per month

Contact Now

Detailed Product Description

Product Name:	F DMD 6630 Motor Insulation Material	Color:	GREEN/BLUE/RED
Used For:	Motor Stator Armature Coil Winding	Type:	Motor Insulation Paper
Grade:	F	Certification:	CE
High Light:	6021 Motor Insulating Paper , Motor PET Insulating Slot Paper , DMD Electric Motor Insulating Film

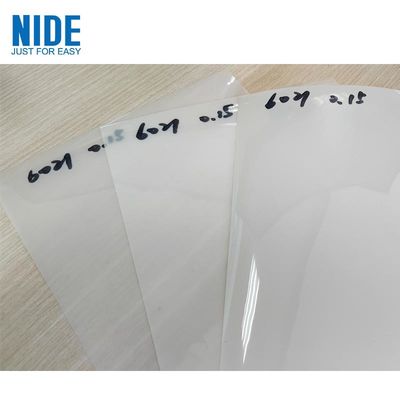

6021 Motor insulating paper milky white PET insulating film slot paper

6021 polyester film for electrical insulation is an opaque film with good dielectric properties and high physical and mechanical properties. It is widely used in medium-sized slot insulation, turn-to-turn insulation, and can also be used in the production of soft composite materials. It is suitable for electrical insulation industry, such as slot insulation, turn-to-turn insulation of motors, coil and cable wrapping insulation, etc. It can also be used to produce insulation soft composite materials.

6021 Motor Insulating Paper Parameter

Product name	6021 Motor insulating paper
Color:	Milky White
Thickness:	0.125～0.5mm
Custom processing:	Yes
Grade	E
Features	Insulation,Excellent heat resistance

6021 Motor Insulating Paper Composition

6021 polyester film is made of polyethylene terephthalate (PET) by casting and balanced biaxial orientation.

The heat resistance grade of 6021 polyester film is E (120℃). It is an opaque film with good transparency and flexibility, high mechanical strength and dielectric properties, uniform thickness and glossy surface.

6021 Motor Insulating Paper Application

6021 Motor polyester film, this product is widely used in motors, packaging, printing, clothing and electronics. And for a wide range of users to provide slitting tape, block tape and processing and forming business. Product prices are divided according to quality grades and thicknesses.

During the cutting and use of the product, the edge should be prevented from cracks, and surface scratches and pollution such as oil and dust should be avoided.

Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.

We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

insulation-paper-material-for-motor-winding-manufacturing

electrical insulation paper material

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
