Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-HXQ-1014 |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | Universal Motor Commutator 12P | Size: | Customers' Requirement |
---|---|---|---|
Application: | Apply To Universal Motor | Type: | Hook |
OD: | 23.2 | ID: | 10 |
Total Height: | 18 | Bar No.: | 12 |
High Light: | Customized Universal Motor Commutator,12P Universal Motor Commutator,Armature Collector Motor Commutator |
Customized Universal Motor Commutator Armature Collector 12P
A collector commutator is a moving part of a rotary electrical switch in electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine. The commutator is one component of a motor; there are also two or more stationary electrical contacts called "brushes" made of a soft conductor like carbon that press against the commutator, making sliding contact with successive segments of the commutator as it rotates.
Collector Commutator Application
Collector Commutators are used in DC motors, generators and universal motors. In a motor the commutator applies electric current to the windings. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced. In a generator the commutator picks off the current generated in the windings, reversing the direction of the current with each half turn, serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit.
Collector Commutator Parameters
Product Name: | Universal Motor Commutator Armature Collector |
Material: | Copper |
Type: | Hook Commutator |
Hole diameter: | 10mm |
Outer diameter: | 23.28.9mm |
Height: | 18mm |
Slices | 12P |
MOQ | 10000P |

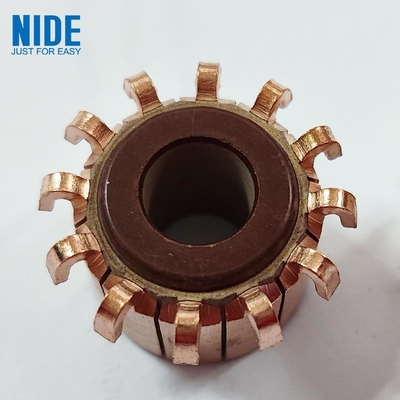

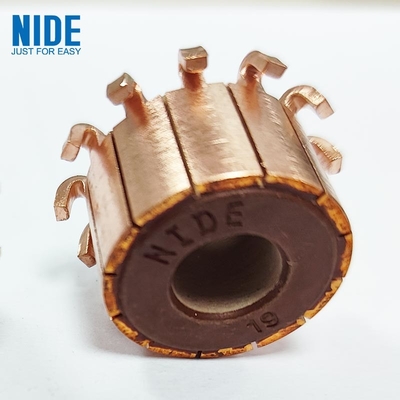

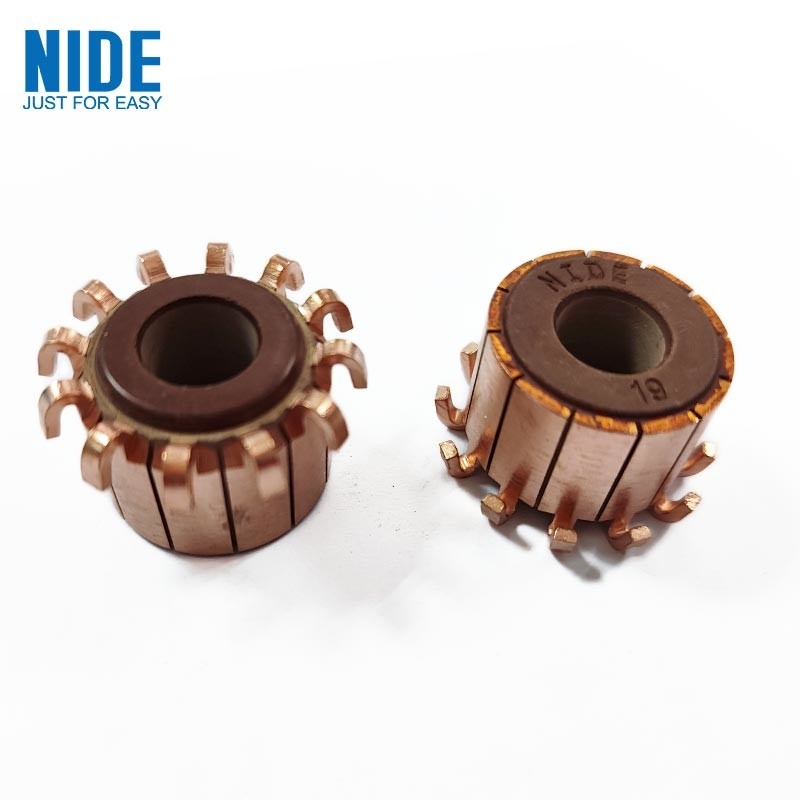

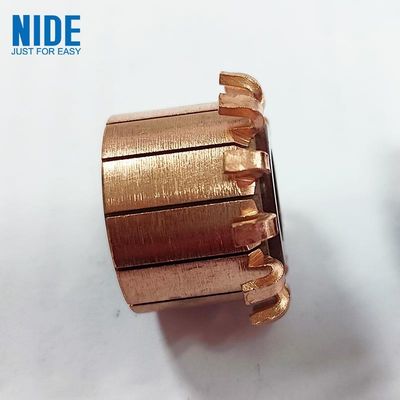

Collector Commutator Picture
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Competitive Advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
Contact Person: Herbert
Tel: +8615268395840
