OEM Electric Motor Spare Parts Angle Commutator Grinder 8.4 X 25 X 16mm

Wholesale OEM Angle grinder commutator 8.4*25*16mm

The commutator fits angle grinder power tool motors.

The angle grinder commutator is widely used in household motors and power tools. The basic structure of the commutator is: including commutator copper pieces evenly distributed on the outer circumference of the commutator body. The commutator bodies are injection-molded together, and the commutator copper sheets are provided with fins which are implanted into the commutator body and firmly combined with the commutator body.

Angle grinder commutator parameters

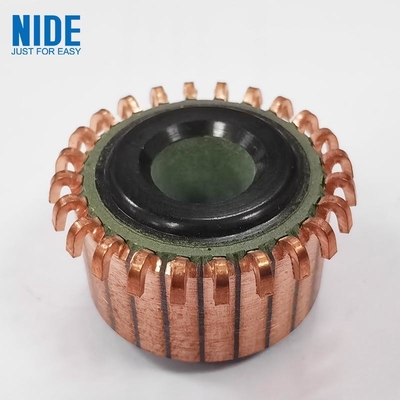

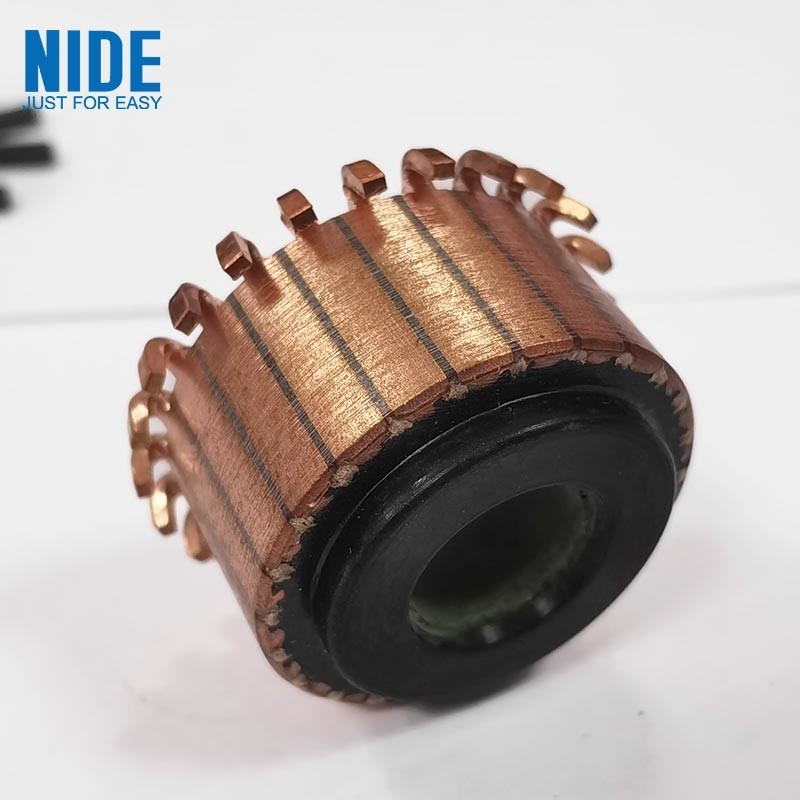

Angle grinder commutator display

Angle grinder commutator failure and maintenance

The angle grinder uses a series motor, which is characterized by two carbon brushes and a commutator on the rotor. The most commonly burned parts of this type of motor are the commutator and rotor winding ends. If the commutator is burnt, it is generally because the carbon brush pressure is not enough. When the motor is working, if the current continues to be large, the carbon brushes will wear out quickly. After a long time, the carbon brushes will become shorter, the pressure will become smaller, and the contact resistance will be very large. At this time, the surface of the commutator will heat up very seriously.

If there is a ring fire or a large spark on the commutator of the angle grinder, it is necessary to replace the carbon brushes, remove the sundries, make the surface of the commutator smooth or replace the commutator with a new one.

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

Competitive Advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
