| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-RBHQ-65 |
| Minimum Order Quantity: | 100000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | Bimetal Motor Thermal Protection Switch | Color: | Natural |
|---|---|---|---|
| Used For: | Industrial Water Pump Motor | Size: | Custmoized |
| High Light: | Bimetal Motor Thermal Protection Switch,Overload Thermal Protection Switch,Water Pump Motor Thermal Overload Switch |
||
Wholesale Thermal Overload Bimetal Motor Thermal Protection Switch
Thermal protection is a method of detecting over-temperature conditions and disconnecting the power to the electronic circuits. Thermal protectors are specifically made for motors. When the motor's heat rises too high, the thermal protector turns off electricity. This stops the motor from overheating and catching on fire. Thermal protectors are placed internally inside the motor.
1. Features of thermal protector
KW series thermal protector is a product with temperature sensing characteristics. The product has the characteristics of advanced structure, small size, sensitive action, large electric shock capacity and long life.
Conductor: tinned copper core wire, insulation layer is made of polyethylene material, silicone material, with UL certified conductor; .
Shell: PBT engineering plastic shell or metal shell with nickel and zinc alloy plating;
Sleeve material: PET polyester insulating sleeve or PE type sleeve, which meets the performance requirements of electrical appliances.
Life: Product life ≥ 10,000 times
2. KW thermal protector performance
| Rated current: |
VoltageVOLTAGE 12V-DC 24V-DC 120V-AC 250V-AC Current CURRENT 12A 10A 8A 6A 5A |
| Operating temperature: | 60°C-160°C, tolerance ±5°C. |
| Lead wire tensile test: | The lead wire of the thermal protector should be able to withstand a tensile force greater than or equal to 50N for 1min without breakage or loosening. |
| Insulation voltage: |
a. The thermal protector should be able to withstand AC660V, 50Hz alternating current between the wiring after thermal disconnection, and the test lasted for 1min without breakdown flashover; b. The terminal lead of the thermal protector and the surface of the insulating sleeve or the surface of the thermal protector can withstand AC1500V, 50Hz alternating current for 1min without breakdown flashover; |
| Insulation resistance: |
Under normal conditions, the insulation resistance between the wire and the insulating sleeve is above 100MQ. (The meter used is DC500V insulation resistance meter)
|
| Contact resistance: | The contact resistance of the thermal protector should not be greater than 50mQ when the contacts are closed. |
| Heat resistance test: | The product is placed in an environment of 150"C for 96 hours. |
| Humidity resistance test: | The product is placed in an environment of 40C and a relative humidity of 95% for 48 hours. |
| Thermal shock test: | The product is placed alternately at 150°C and - 20°C for 30min each, for a total of 5 cycles. |
| Anti-vibration test: | The product can withstand an amplitude of 1.5mm, a frequency change of 10-55HZ, a scanning change period of 3-5min, and vibration directions X, Y, Z, and continuous vibration for 2 hours in each direction. |
| Drop test: | The product is free to fall once from a height of 200mm. |
| Compression resistance: | Immerse the product in a sealed oil tank, apply a pressure of 2Mpa and keep it for 24h. |

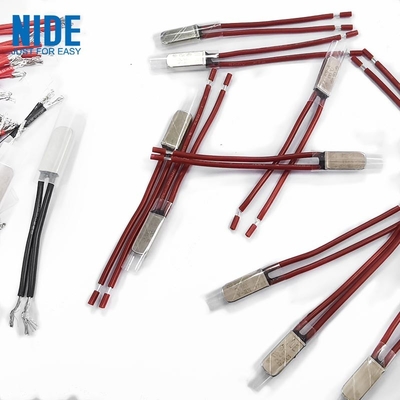

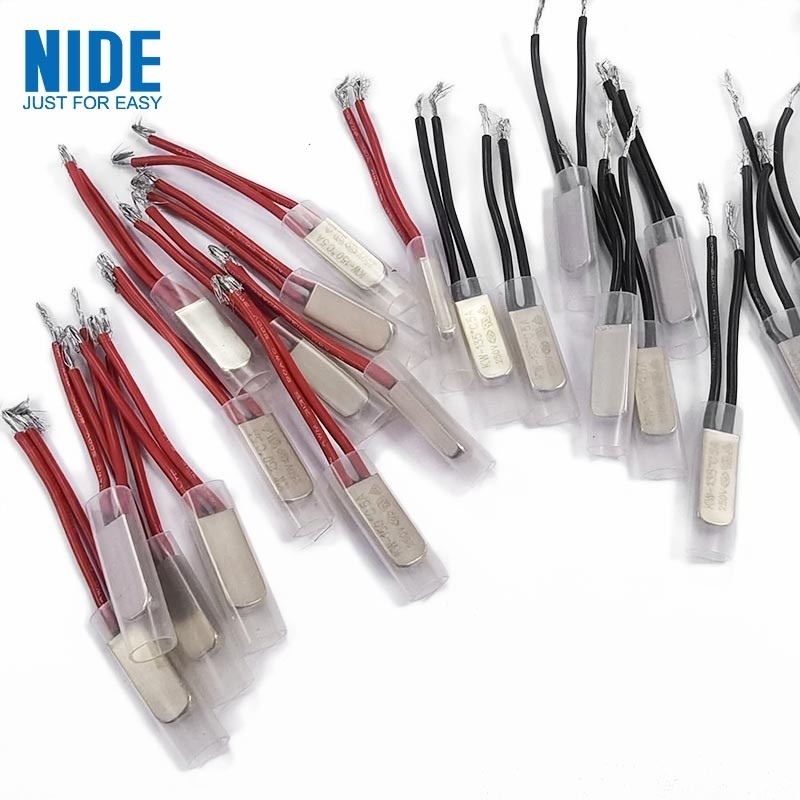

3.KW thermal protector picture display
Customized Thermal Protector :
1. Customized lead wire: Customized wire material, length and color according to customer needs
2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.
3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
Contact Person: Herbert
Tel: +8615268395840
