| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-CBB61-3 |
| Minimum Order Quantity: | 100000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | Air Conditioner Ceiling Fan Capacitor | Color: | Natural |
|---|---|---|---|
| Used For: | ACmotor, Ceiling Fan Machine ,air Conditioner | Size: | Custmoized |
| High Light: | Air Conditioner Ceiling Fan Capacitor,CBB61 Ceiling Fan Capacitor,AC 60Hz Ceiling Fan Capacitor |
||
CBB61 Air Conditioner Ceiling Fan Capacitor 3UF 450V
CBB61 starting capacitor is suitable for the starting and running of a single-phase motor with a frequency of 50HZ/60HZ AC power supply, and can also play a role in speed regulation of the motor. The CBB61 capacitor is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.
Capacitor Parameter
| Product Name: | AC Motor Capacitor |
| Model: | CBB61 |
| Material: | Metal Plastic; |
| Voltage: | 250VAC,370VAC,440VAC,450VAC 50/60Hz |
| Max.TEMP: | 70°C |
| Size: | 38X27X16MM |
| Reference standards: | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category: | 40/ 70/21,40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | S0 /S3 |
| Capacitance range | 1~35μ F |
| Capacitance tolerance | 土5%,土10%,土15% |
| Dissipation factor | 20x10^(-4) ( 100Hz, 20°C ) |
| Test voltage terminalto terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to caseUTC | (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds |
| RC | ≥3000s (100Hz, 20°C,1min) |
Capacitor Feature:
Self-healing
High stability
reliability

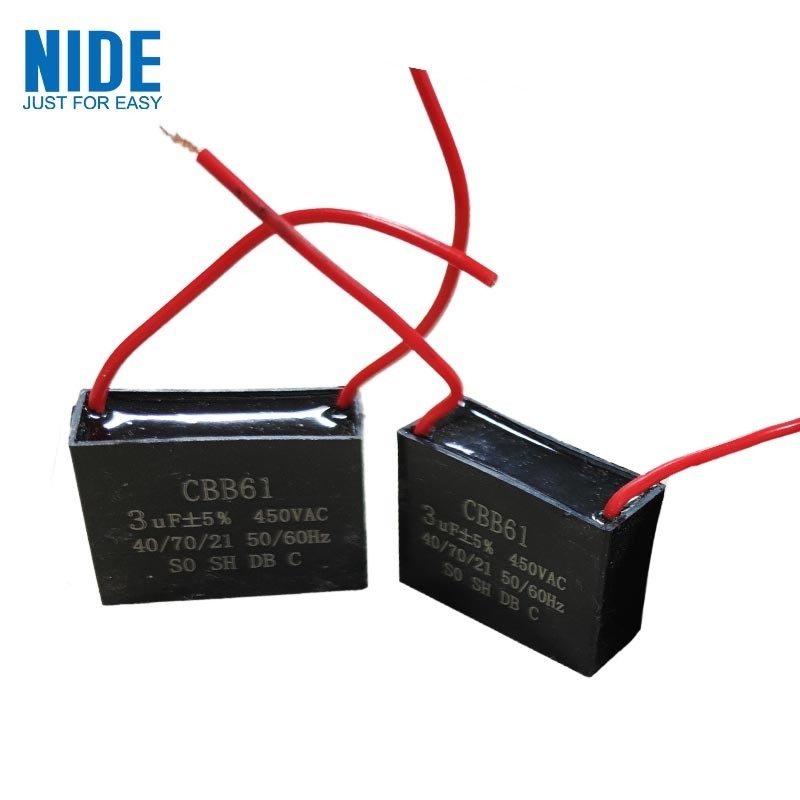

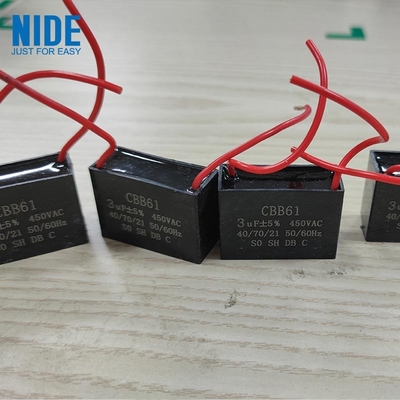

Capacitor Picture:
Contact Person: Herbert
Tel: +8615268395840
