| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-RBHQ-62 |
| Minimum Order Quantity: | 100000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | 5A 250v Temperature Control Thermal Switch Thermal Protector | Color: | Natural |
|---|---|---|---|
| Used For: | Industrial Water Pump Motor | Size: | Custmoized |
| High Light: | 250v Temperature Control Thermal Switch,KW Thermal Protector Temperature Control,5A KW Thermal Protector 150 Degrees |
||
5A 250v temperature control thermal switch thermal protector 150 degrees
The thermal protector is suitable for various motors, electrical tools, chargers, transformers battery, fluorescent ballasts and lightings, electric pad, electric blanket, laminatorand Home appliances, etc.
When ambient temperature increase to the prescribed value, the bimetal inside the thermal protector would sense the heat and trip the circuit off. When temperature is decreased down, it would reset again. KW thermal protector has sealed case, which would protect the parts inside from damaging or polluting.
Thermal protector technical requirements:
| 1. The lead wire | adopts UL3135, 20AWG red silicone wire. |
| 2. Contact capacity: | 250V 5A, contact type: normally closed. |
| 3. Rated breaking temperature: | 150±5°C; Rated reset temperature 105±15°C. |
| 4. Contact resistance: | When the contact is closed, the resistance between the lead wires is ≤50MΩ. |
| 5. The insulation resistance of the lead wire or terminal and the surface of the insulating layer of the casing | ≥10MΩ. |
| 6. Electric strength: |
a. When the contact is normally closed, the lead wire and the insulating layer of the casing should withstand 1500V/1min without flashover and breakdown. b. When the contacts are thermally disconnected, the lead wires should withstand 500V/1min without flashover and breakdown. |
| 7. Mechanical strength of lead wires or terminals: | should withstand static tension of 60N/ 1min without loosening, cracking, deformation and other defects |
Thermal protector Special Features
1,Miniature size, easy to install
2,Repeatable temperature performance over life
3,Precise operation of the operating temperature and the creep phenomenon does not ocuur;
4,Each part enbironmental standards are strictly enforced.
5,Optional Normally Close type and Normally Open type
6,High temperature resistant lead wire, customizable as per customer requirements
7,Trip off Temperatures: 55-160 degrees centigrade. Special specifications are available for customization.

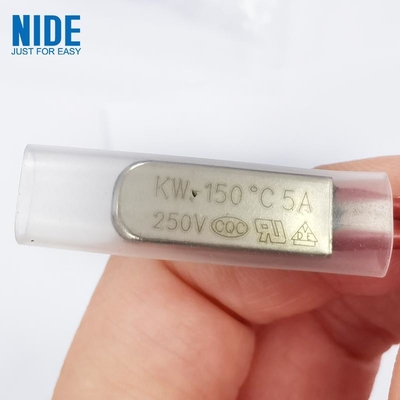

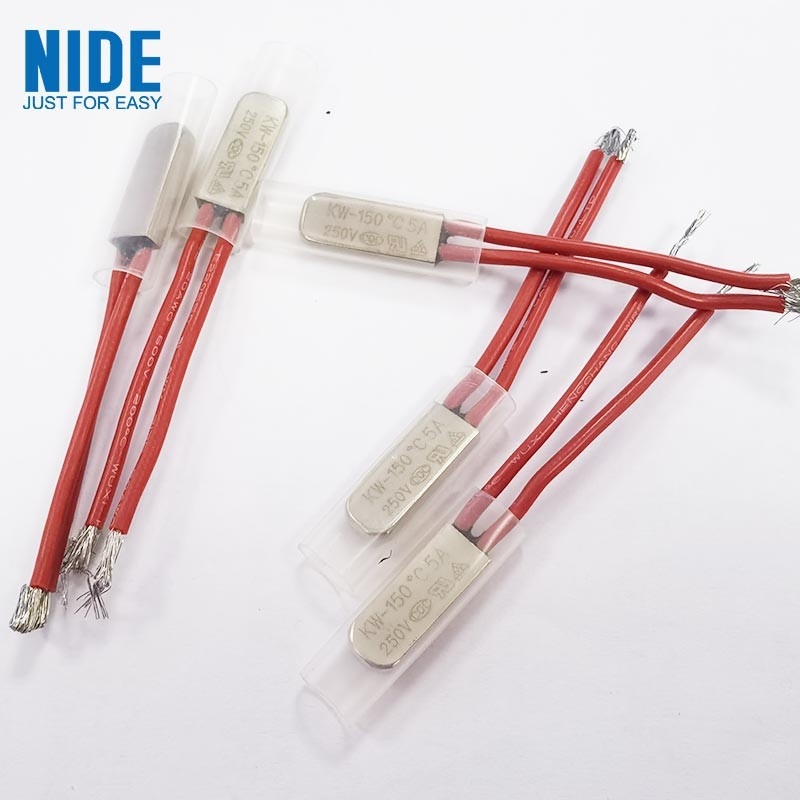

Thermal protector Picture Show
Customized Thermal Protector :
1. Customized lead wire: Customized wire material, length and color according to customer needs
2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.
3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
