Air Conditioner Motor Thermal Protector KW 135 Degrees For Household

Air Conditioner Motor Thermal Protector KW 135 Degrees For Household

  • Air Conditioner Motor Thermal Protector KW 135 Degrees For Household
  • Air Conditioner Motor Thermal Protector KW 135 Degrees For Household
Air Conditioner Motor Thermal Protector KW 135 Degrees For Household
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-RBHQ-59
Payment & Shipping Terms:
Minimum Order Quantity: 100000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Air Conditioner Motor Thermal Protector KW Thermal Protector Color: Natural
Used For: Household Appliances, Air Conditioner Motor Size: Custmoized
High Light:

Air Conditioner Motor KW Thermal Protector

,

135 Degrees KW Thermal Protector

,

KW Thermal Protector For Household

Air conditioner motor thermal protector KW thermal protector 135 degrees





Thermal protector application

Household appliances, air conditioners, washing machines, microwave ovens, automobile motors, fire cables, motors, water pump motors, transformers, lamps, instruments, medical machinery, etc.



Thermal protector product parameters

Product name: Air conditioner motor KW thermal protector
Temperature range: 45-170°C, can be customized according to customer needs
Electrical specifications: DC (DC voltage) 5V/12V/24V/72V, AC (AC voltage) 120V/250V, can be customized according to customer needs
Current range: 1-10A, can be customized according to customer needs
Shell material: high temperature plastic shell (non-metallic), iron shell, stainless steel shell, can be customized



The working principle and characteristics of thermal protector:

KW thermal protector is a kind of bimetal with constant temperature as a sensitive element. When the temperature or current rises, the heat generated is transferred to the bimetal disc, and when it reaches the rated operating temperature value, it will act quickly to disconnect the contacts and cut off the circuit; when the temperature drops

When the preset reset temperature setting value is reached, the bimetal disc will quickly recover, so that the contacts are closed and the circuit is connected.

The thermal protector has the characteristics of small size, large contact capacity, sensitive action and long life.

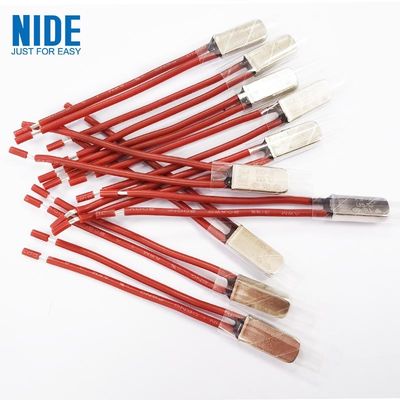

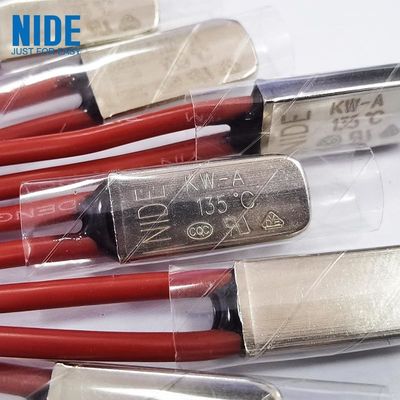

Thermal Protector Picture:

Air Conditioner Motor Thermal Protector KW 135 Degrees For Household 0
Air Conditioner Motor Thermal Protector KW 135 Degrees For Household 1
Air Conditioner Motor Thermal Protector KW 135 Degrees For Household 2

Thermal Protector Structure:

Air Conditioner Motor Thermal Protector KW 135 Degrees For Household 3

Air Conditioner Motor Thermal Protector KW 135 Degrees For Household 4

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs
