Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-HXQ-480 |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | Power Tool Commutator Manufacture | Size: | Customers' Requirement |
---|---|---|---|
Application: | Apply To Automotive Industry, And Other Motors. | Type: | Hook |
OD: | 28.5 | ID: | 12 |
Total Height: | 22.5 | Bar No: | 24 |
Highlight: | 24 slot motor accessories commutator,Hook Type Power Tool Commutator,Power Tool Commutator Motor Accessories |
24 slot motor accessories commutator for power tool commutator manufacture
NIDE develops and produces various commutators and collectors, and we can customize commutators according to customer needs.
Commutator application
Commutators are widely used in various electric tools, automobiles, motorcycles, household appliances and other motors.
Commutator parameters
Product: | 24-slot hook type commutator/collector |
Size: | 28.5*12*22.5mm |
Material: | Copper/Silver |
Commutator Features
1.Resin surface no crack,bubble,etc
2.Dielectric strength: bar-bar 500VAC, 1s,bar-shaft 4800VAC,1MIN,no break down or
flash
3.Spin test: 180°,33000rpm,3min, OD deviation 0.01max,bar-shaft deviation 0.005max
4.Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >
100MΩ
5.Unmarked tolerance accord with GB/T1804-m

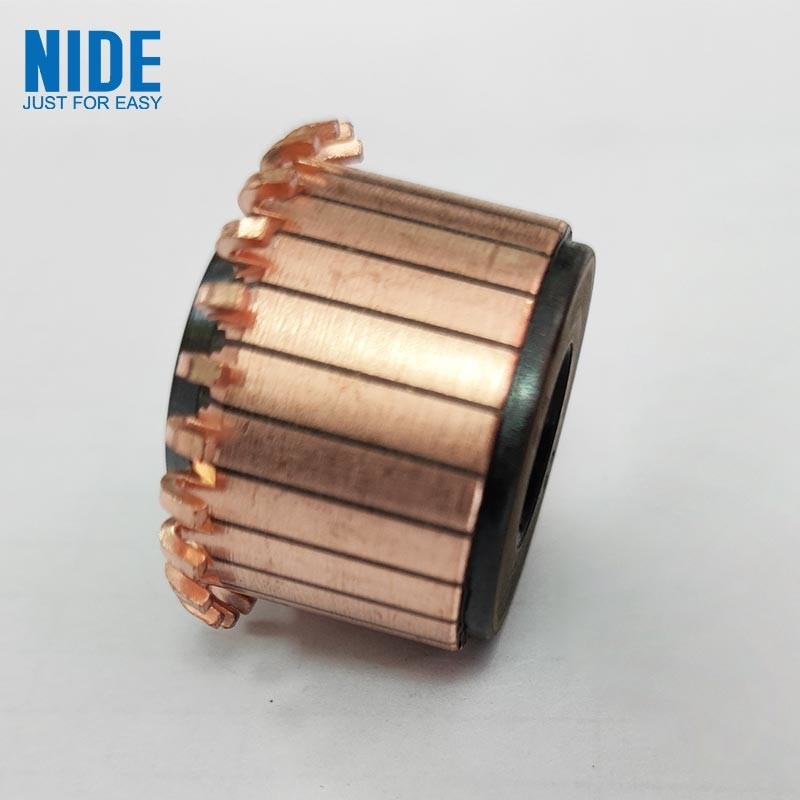

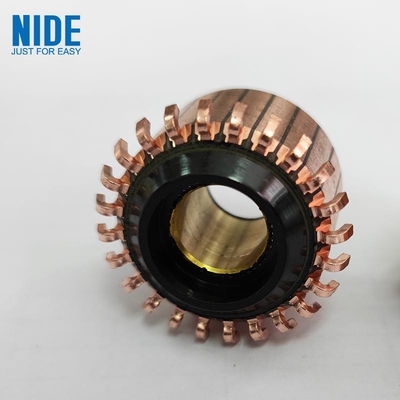

Commutator Picture
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Competitive Advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
Contact Person: Herbert
Tel: +8615067409300
