24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm

24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm

  • 24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm
  • 24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm
  • 24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm
24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-549
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Power Tool Commutator Size: Customers' Requirement
Application: Apply To Automotive Industry, And Other Motors. Type: Hook
OD: 30.3 ID: 12
Total Height: 23.35 Bar No: 24
Highlight:

Electric Pick Gun Motor Commutator

,

24P AC Motor Commutator

,

30.3*12*23.5 mm Motor Commutator

24P AC motor commutator for electric pick gun 30.3*12*23.5mm

1. AC Motor Commutator Introduction



1. Resin Surface no bubble, crack,etc.

2.Dielectric strength:bar-bar 500VAC, 1S,bar-shaft 3000VAC,60S,no crack or flash

3.Insulation resistance:room temperature,500VDC Mega meter, insulation resistance>

100MΩ

4.Unmarked tolerance accord with GB/T1804-m

5. Electric pick gun commutator resistance: 500V, more than 50MΩ

6. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

7. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.



2.AC Motor Commutator Parameter (Specification)

Product name: Electric pick gun AC motor commutator
Materials 0.03% or 0.08% sliver copper or customized
Dimension 30.3*12*23.5mm or Customized
Commutator type Hook type/Raiser type
Application Automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month



3.AC Motor Commutator Feature And Application

The Hook Commutator is suitable for Universal motor, Industrial motor, Household Appliances, Car, Power Tools, Electric Bikes& Motorcycles.



4.AC Motor Commutator Picture

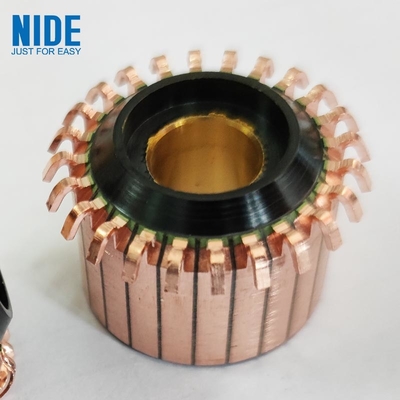

24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm 0

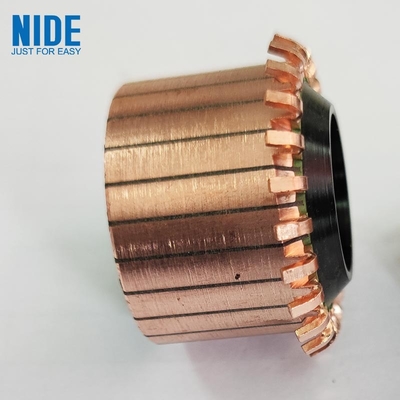

24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm 1

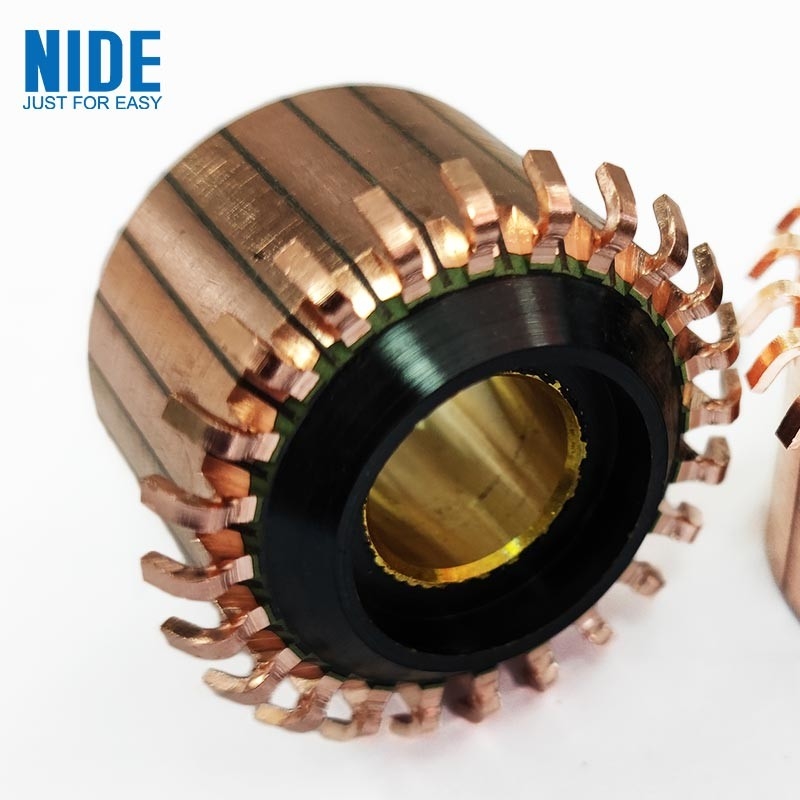

24P AC Motor Commutator For Electric Pick Gun 30.3*12*23.5mm 2







Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator

About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

Competitive Advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
