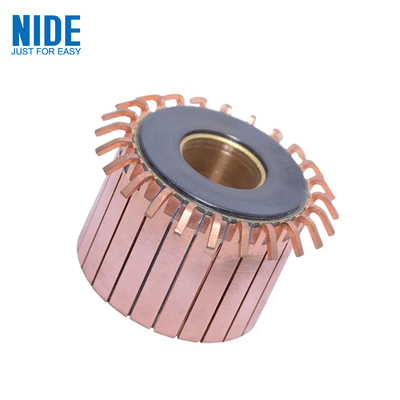

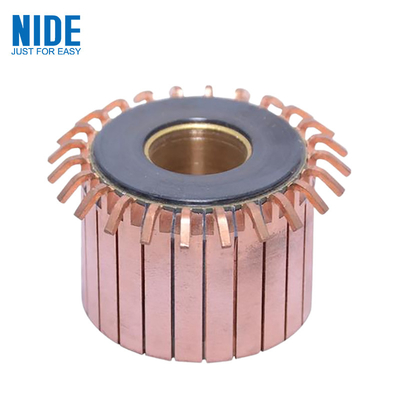

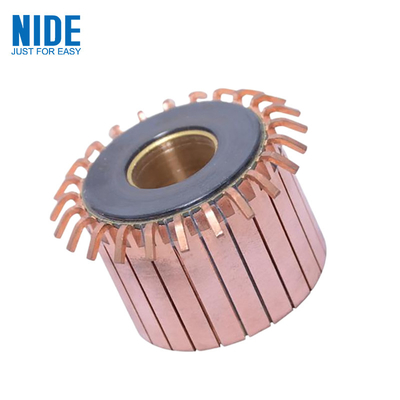

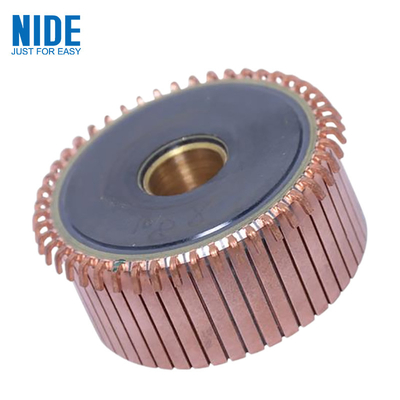

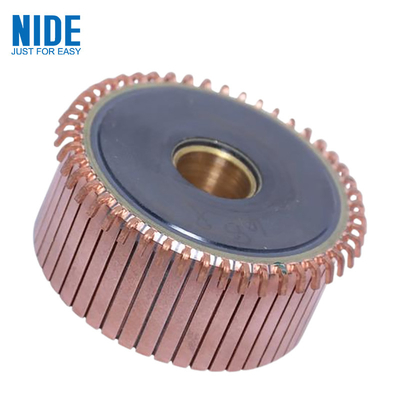

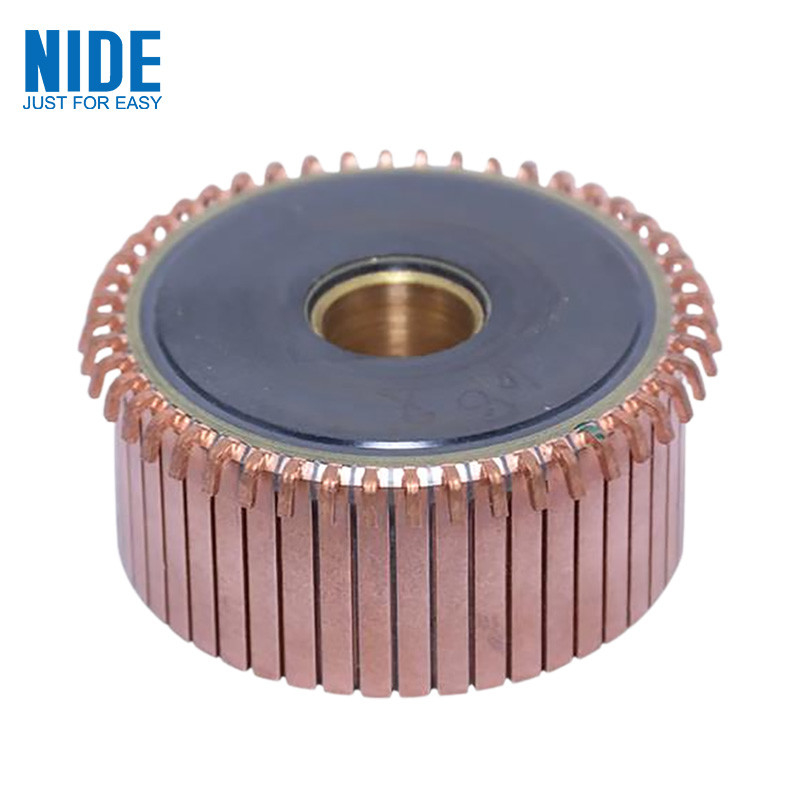

Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar

Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar

  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
  • Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03011
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Vacuum Cleaner Motor Armature Size: Customers' Requirement
Application: Apply To Motorcycle Type: Hook
OD: 23.5 ID: 9
Total Height: 17.5 Segment Length: 14
Bar No.: 24
High Light:

24 Bar Armature Rotor

,

Vacuum Cleaner Armature Rotor

,

Motor Armature Rotor Stator

Factory Vacuum Cleaner Motor Armature Rotor



Techinical Specifications:

To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole( depth: 1.4±0.1, width: 0.5±0.05) should be tolerated.
Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1min, there will be no breakdown or spark.
Spin Test: Under 180±2 ºC, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max.
Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.
Besides the high emphasis we put on quality during the production process, we also place great importance on detection. We test commutators one by one after production with professional equipments to ensure that there is no possibility of any quality problem.
We also pay much at attention to the package. All the goods delivered from our factory are of strong packing to get rid of any hurt during the delivery to the warehouse as well as that during the shipment.
We believe that not only the quality, but also the price must be competitive. We are searching and developing new ways and advanced technology all the time to make sure that our products are always with better prices.


Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.



Competitive advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries, like USA, France, Turkey, India, Brazil, Argentina, Mexico etc.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.


Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar 0




About Motor Component and Accessories:
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type




Product Name Motor Commutator
Material

Metal

Color Standed color
Payment tems TT,Paypal etc...
Brand

Customer request

Delivery time According to the order quantity
Sample time 7-10days, depends on product style and shipping
Features

To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole( depth: 1.4±0.1, width: 0.5±0.05) should be tolerated.
Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1min, there will be no breakdown or spark.
Spin Test: Under 180±2 ℃, 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003max.
Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.

Usage for area

1.Commutators for household machines: hair dryer, mixer, vacuum cleaner, washing machine, source juice machine ,whisk, juicer, soymilk, and for other household appliances
2.Commutators for automotive motor industry: Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan , Cooling water tank radiator ,and for other auto eletronic machines .
3.Commutators for power tools: Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4.Commutators for other industry: Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.


Full Range Vacuum Cleaner Motor Armature Rotor 24 Bar 1
commutator
AC motor commutator


Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator

About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

electric motor components
Competitive Advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
