High Intension Silver Copper 24 Segment Commutator 12v For Power Tools

High Intension Silver Copper 24 Segment Commutator 12v For Power Tools

  • High Intension Silver Copper 24 Segment Commutator 12v For Power Tools
  • High Intension Silver Copper 24 Segment Commutator 12v For Power Tools
High Intension Silver Copper 24 Segment Commutator 12v For Power Tools
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03007
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Commutator Size: Customers' Requirement
Application: DC (direct Current) Machines Type: Hook Type
OD: 25.5 ID: 10
Total Height: 17 Bar No: 24
Segment Length: 14 Hook/Riser Dia.: 26.5
High Light:

Silver Copper 24 Segment Commutator

,

Segment Commutator Power Tools

,

Starter Motor Commutator High Intention

Silver Copper With High Intension 24 Segment 12v Commutator For Power Tools





Product name: 24 Segment 12v Commutator
OD 25.5
ID φ10
Total Height 17
Segment Length 14
Hook/Riser dia. 26.5
Bar No. 24


Description:

The applications of commutators include DC (direct current) machines like DC generators, numerous DC motors, as well as universal motors. In a DC motor, the commutator provides electric current to the windings. By changing the direction of current within the revolving windings every half turn, a torque (steady revolving force) will be produced.

Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.




Competitive advantages:

- Silver copper with high intension, imported molding compound ,in good quality.
- Good service for every customer.
- Perfect detecting equipment and reliable working condition tester
- Provide qualified OEM services.
- Competitive price and prompt delivery.

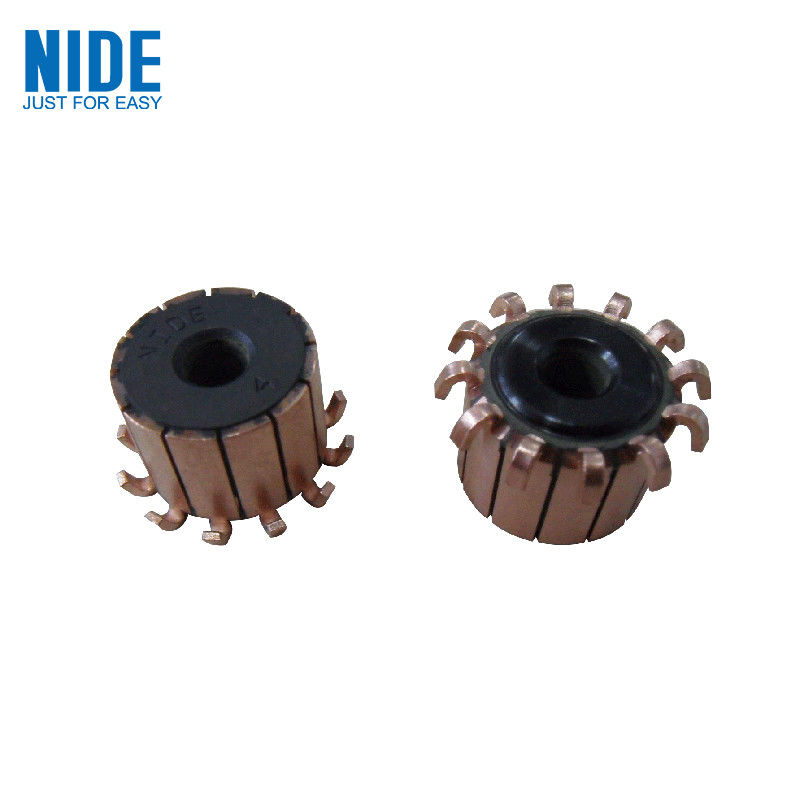

High Intension Silver Copper 24 Segment Commutator 12v For Power Tools 0




Technical specification:

1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type




Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month

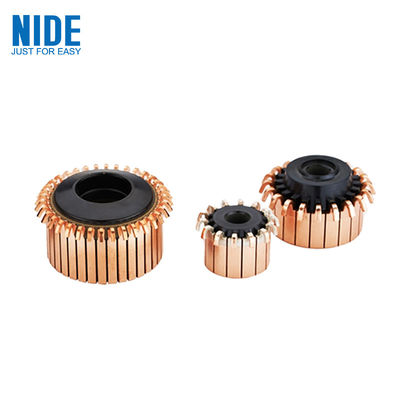

High Intension Silver Copper 24 Segment Commutator 12v For Power Tools 1
commutator
AC motor commutator
motor commutator
DC motor commutator

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator



About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.


electric motor components

We also pay much at attention to the package. All the goods delivered from our factory are of strong packing to get rid of any hurt during the delivery to the warehouse as well as that during the shipment.
We believe that not only the quality, but also the price must be competitive. We are searching and developing new ways and advanced technology all the time to make sure that our products are always with better prices.



Competitive Advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries,
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
