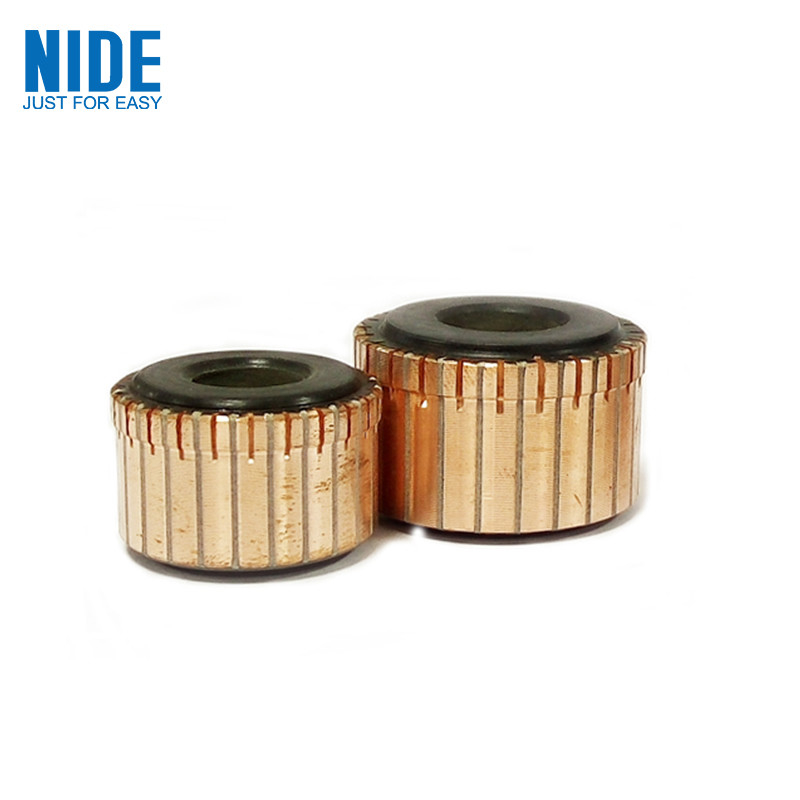

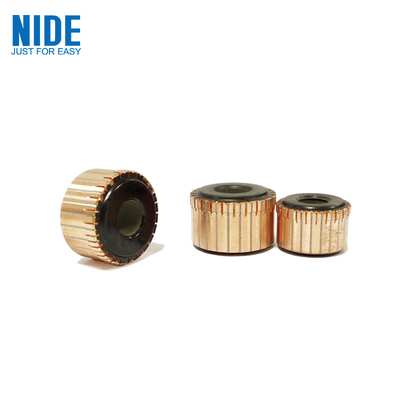

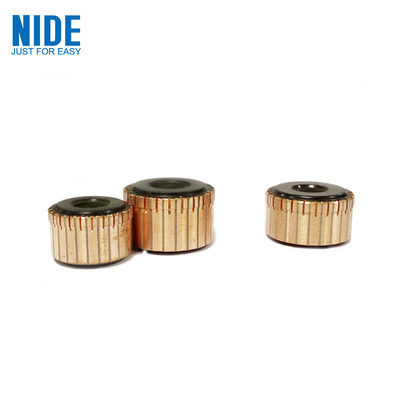

Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools

Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools

  • Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools
  • Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools
  • Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools
Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03006
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Commutator Size: Customers' Requirement
Application: Apply To Automotive Industry, And Other Motors. Type: Slot
OD: 37.5 ID: 13
Total Height: 26 Bar No: 32
Segment Length: 23 Hook/Riser Dia.: 38.5
High Light:

32 Segments Armature Commutator

,

Electrical Rotating Switch Armature Commutator

,

Hook Type Segment Commutator

High Quality 32 Segments Armature Commutator For Power Tools


Product name: Micro DC motor part commutator
OD 37.5
ID φ13
Total Height 26
Segment Length 23
Hook/Riser dia. 38.5
Bar No. 32


Description:

The commutator can be defined as is an electrical rotating switch in a particular type of generators as well as motors. This is mainly used to overturn the direction of current among the external circuit & rotor. It comprises a cylinder with numerous metal contact segments lying on the revolving armature of the machine. The brushes or electrical contacts are made with a carbon press material next to the commutator, designing sliding contact by consecutive segments of the commutator while it revolves. The armature windings are allied to the segments of the commutator.

Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.






Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools 0




Technical specification:
1. resin surface, free of bubble and crack
2. spin test: 200ºC, 3000r/min, 3min, radial deviation <0.015, bar to bar <0.006.
3. High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.
4. Insulation test at 500V, >50MΩ
5. Copper material: sliver copper or electrolytic copper or customized
6. Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.
7. Application: apply to automotive industry, power tools, household appliances, and other motors
8. Commutator type: hook type, riser type, shell type or planar type




Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month


Electrical Rotating Switch 32 Segments Armature Commutator Hook Type For Power Tools 1
commutator
AC motor commutator
motor commutator
DC motor commutator

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator

About Motor Component and Accessories:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
electric motor components
Competitive Advantages:

1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
