Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer

Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer

  • Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer
  • Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer
  • Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer
Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6640
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: NMN Motor Insulation Material Color: Light Yellow
Used For: Motor Winding Type: Motor Insulation Paper
Grade: H Certification: CE
Thickness: 0.15-0.4mm Temp: 180°
High Light:

Slot Liner Motor Insulation Paper

,

H Class Insulating Paper Aramid

,

Transformer Layer Insulating Paper

Slot Liner Insulation Transformer Layer Insulation H Class Insulating Paper Aramida



Application:

H-grade NMN Aramid Paper cis a three-layer composite foil, of which the outer two layers are NOMEX® insulating paper from DuPont, and the inner layer is an electric shock film, which has excellent dielectric properties, flame retardant properties, mechanical properties and high heat resistance. , suitable for slot insulation, turn-to-turn insulation and gasket insulation of H-class motors

It has good electromechanical properties, cut-through resistance and overload resistance, and has good compatibility with common insulating paints, suitable for F-class motor slot and phase-to-phase insulation



Features:

The surface is uniform, free of fluff and bubbles, wrinkles and imperfections such as blemishes.



NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.



Product parameter:

Product name 6640 motor insulation paper
Material One layer Polyester film + One layer Electrical insulating paper
Grade H grade
Color Light Yellow
Thickness 0.15~0.4 (mm)
Width 5-100 (mm)
Features It has good dielectric properties
Heat resistance 180 degrees
Custom Yes
Packing description carton



Product Usage

Insulation between slots and turns of small motors. Pad insulation.

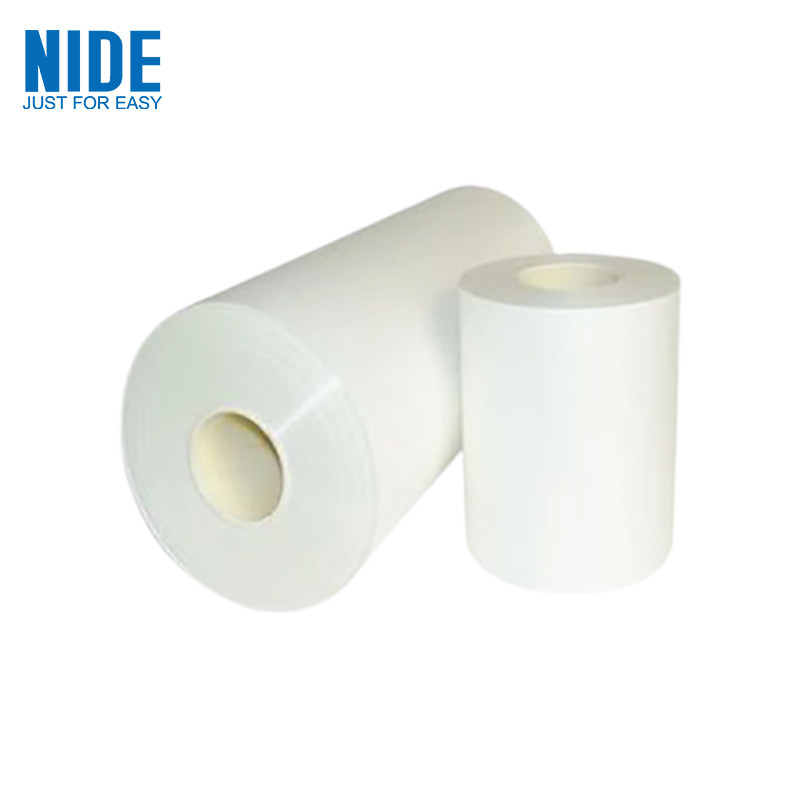

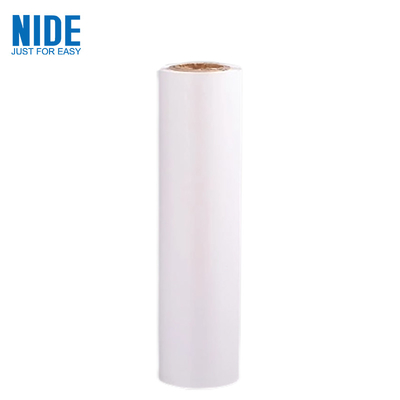

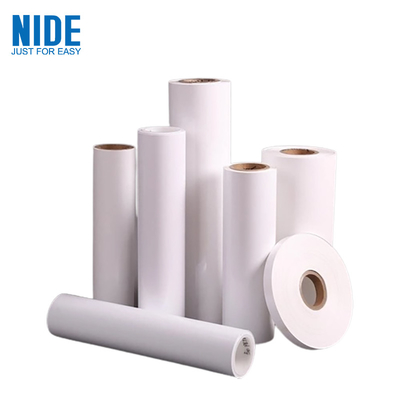

Picture show

Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer 0

Aramid H Class Insulating Paper Slot Liner Insulation Transformer Layer 1









Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.



electric motor components
