6520 Polyester Film Electrical Insulating Paper For Motor Winding

6520 Polyester Film Electrical Insulating Paper For Motor Winding

  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
  • 6520 Polyester Film Electrical Insulating Paper For Motor Winding
6520 Polyester Film Electrical Insulating Paper For Motor Winding
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6520
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: PMP Motor Insulation Material Color: Cyan
Used For: Motor Winding Type: Motor Insulation Paper
Grade: E Certification: CE
Thickness: 0.13-0.4mm Temp: 120°
High Light:

Electrical Insulating Paper Polyester Film

,

Motor Winding Electrical Insulating Paper

,

Electrical Motor Insulation Paper 6520

6520 Polyester Film Electrical Insulating Paper For Motor Winding



Application:

6520 Transformer Insulation Paper green composite is a two-layer soft composite insulating material, which is composed of green shell paper and polyester film.Generally used in mechanical and electrical products. It is mostly used as a spacer in the joint between hard metal parts. For example, a layer of highland barley paper is fastened between the fan wing and the fan head of a household ceiling fan with screws. Highland barley paper is sandwiched between the main shaft pressure ring of the lathe and the gear box. this material has a excellent performance in both electrical and mechanical properties.The color can be customize for you. If the color you want is different from the fish paper in the picture , you can contact us as soon as possible.



Features:

The surface is uniform, free of fluff and bubbles, wrinkles and imperfections such as blemishes.



NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.



Product parameter:

Product name 6520 motor insulation paper
Material One layer Polyester film + two layer Electrical insulating paper
Grade E grade
Color Cyan
Thickness 0.13~0.4 (mm)
Width 5-100 (mm)
Features It has good dielectric properties
Heat resistance 120 degrees
Custom Yes
Packing description carton



Product Usage

Insulation between slots and turns of small motors. Pad insulation.

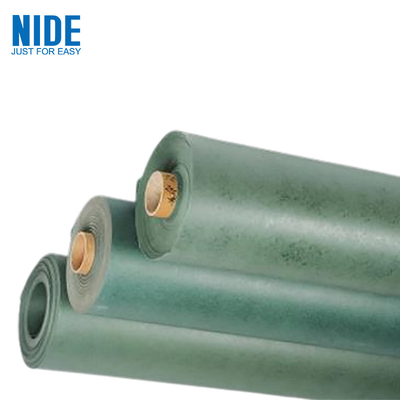

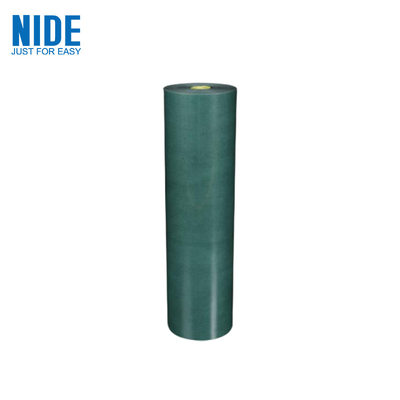

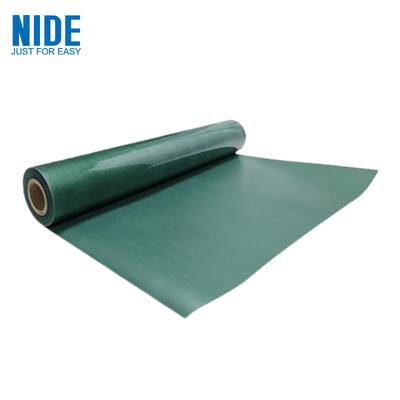

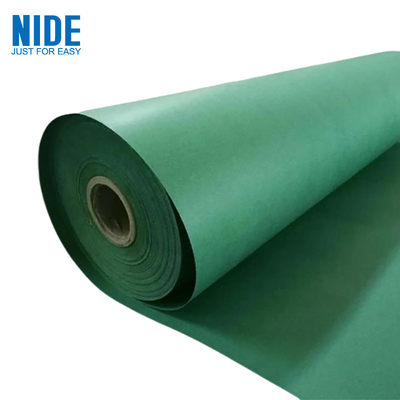

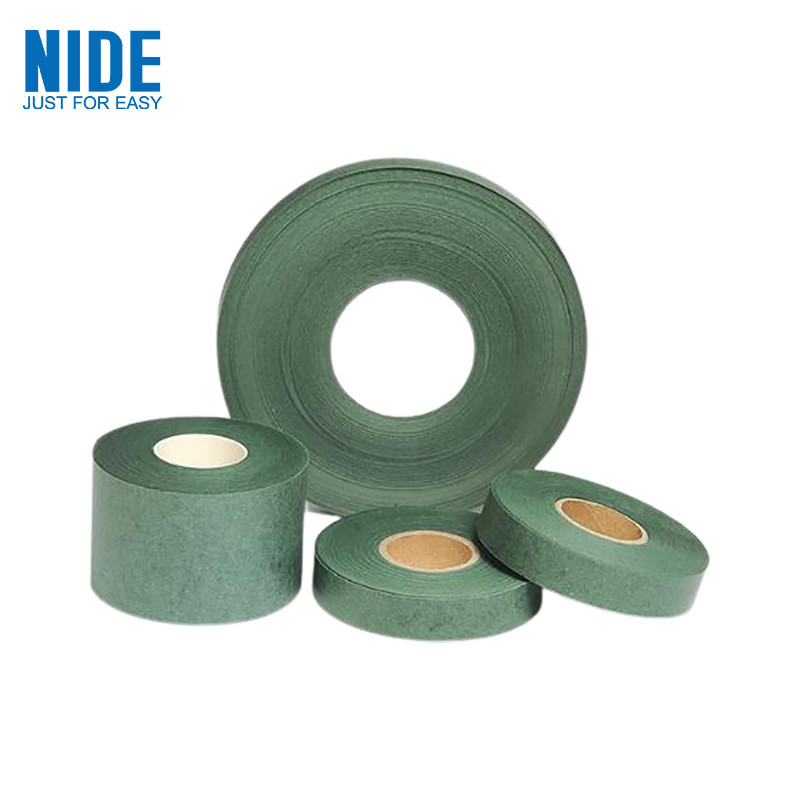

Picture show

6520 Polyester Film Electrical Insulating Paper For Motor Winding 0

6520 Polyester Film Electrical Insulating Paper For Motor Winding 1









Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.



electric motor components
