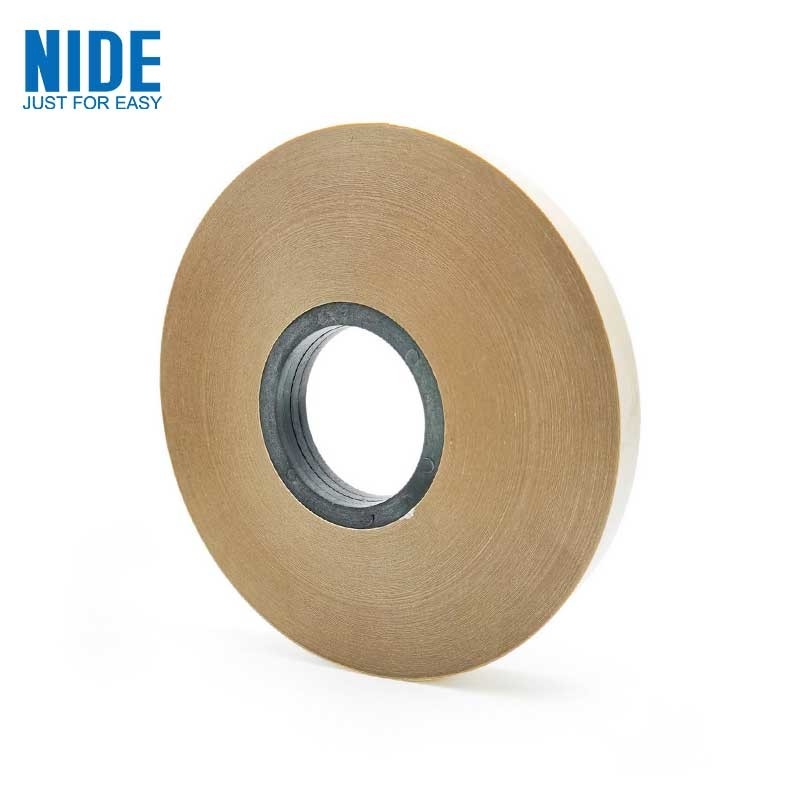

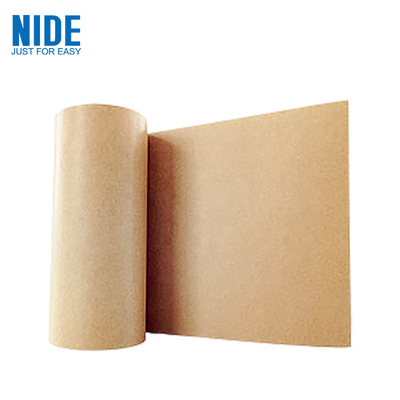

Winding Electric Motor Spare Parts Insulating Paper Polyester Film

Winding Electric Motor Spare Parts Insulating Paper Polyester Film

  • Winding Electric Motor Spare Parts Insulating Paper Polyester Film
  • Winding Electric Motor Spare Parts Insulating Paper Polyester Film
Winding Electric Motor Spare Parts Insulating Paper Polyester Film
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-PM
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: PM Motor Insulation Material Color: Yellow
Used For: Pad Insulation Type: Motor Insulation Paper
Grade: F Certification: CE
Thickness: 0.13-0.47mm Temp: 155°
High Light:

Motor Insulation Paper Polyester Film

,

Electric Winding Motor Insulating Paper

,

Dielectric Motor Spare Parts Paper

High Temperature Resistance Wear Resistant Insulating Paper For Motor Insulation Winding



Application:

It is a two-layer composite material composed of a layer of polyester film and a layer of electrical insulating paper, bonded with F-class resin. It has good dielectric properties and is suitable for the insulation between slots and turns of small motors. Pad insulation.



Features:

Super dielectric property.

Reliable heat resistance.

High mechanical strength.

Good impregnating performance.



NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.



Product parameter:

Product name PM motor insulation paper
Material One layer Polyester film + one layer Electrical insulating paper
Grade F grade
Color Yellow
Thickness 0.13~0.47 (mm)
Width 5-100 (mm)
Features It has good dielectric properties
Heat resistance 155 degrees
Custom Yes
Packing description carton



Product Usage

Insulation between slots and turns of small motors. Pad insulation.



6641 F DMD Technical Data:

Item Unit Parameter
Material thickness mm 0.13 0.15 0.18 0.20 0.23
Thickness deviation mm ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Quantitative and deviation g/m2 130±13 150±15 185±19 215±22 255±26
membrane thickness mm 0.036 0.05 0.075 0.10 0.125

Tensile Strength



Vertical



Horizontal

N/10mm



N/10mm

≥60



≥40

≥90



≥80

≥120



≥105

≥140



≥120



≥180



≥150

Elongation



Vertical



Horizontal

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

Breakdown voltage



Not bend

KV ≥5 ≥7 ≥8 ≥10 ≥11
Normal cohesiveness   No stratification
Thermal adhesion 180±2℃10min No layering, no foaming, no glue flow
Heat resistance grade   Class F 155 degrees
Colour   Blue/Green/Red



Picture show

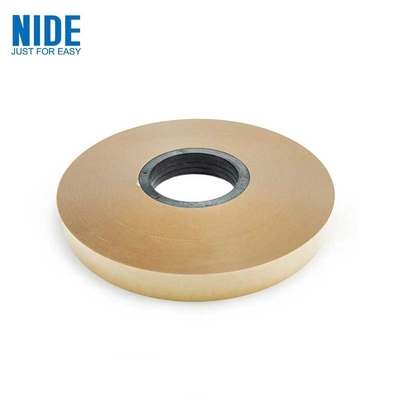

Winding Electric Motor Spare Parts Insulating Paper Polyester Film 0

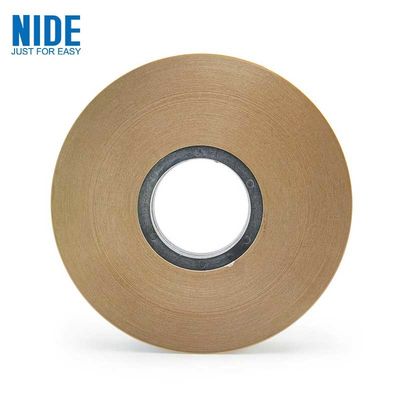

Winding Electric Motor Spare Parts Insulating Paper Polyester Film 1









Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
