Insulating Motor Winding Paper High Temperature Resistance Wear

Insulating Motor Winding Paper High Temperature Resistance Wear

  • Insulating Motor Winding Paper High Temperature Resistance Wear
  • Insulating Motor Winding Paper High Temperature Resistance Wear
Insulating Motor Winding Paper High Temperature Resistance Wear
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6632
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: 6632 DM Motor Insulation Material Color: White
Used For: Motor Stator Armature Coil Winding Type: Motor Insulation Paper
Grade: B Certification: CE
Thickness: 0.15-0.4mm Temp: 130°
High Light:

Insulating Motor Winding Paper

,

Motor Winding Paper Resistance Wear

,

Winding Motor Insulation Paper

High Temperature Resistance Wear Resistant Insulating Paper For Motor Insulation Winding



Application:

6632DM insulating paper has good mechanical strength, dielectric properties and high heat resistance (Class B), it is a type of insulating material for motors, and can be used as slot insulation, inter-turn and inter-layer insulation, gaskets for small and medium-sized motors Insulation core and transformer insulation. Part of the thickness of this product has been widely sold to Europe, America and Southeast Asia markets.



Available specifications: 0.15-0.4mm

The main technical indicators take 0.25 as an example

Thickness tolerance: 0.04±0.05

Tensile strength longitudinal without bending ≥150 after bending ≥130

(N/10mm) Horizontal without bending≥130 After bending≥120

Elongation% Longitudinal ≥10 Transverse ≥10

Volume resistivity under normal conditions MΩ.m ≥1.0×10.6, after damp ≥1.0×10.4

Breakdown voltage Normal state≥10.0 155±2℃≥9.0

Thermal adhesion: no delamination, no foam, flow glue 180±2℃



Features:

Super dielectric property.

Reliable heat resistance.

High mechanical strength.

Good impregnating performance.



NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.



Product parameter:

Product name 6632DM motor insulation paper
Model: 6632B grade DMD insulation paper
Grade: B grade
Color: White
Thickness: 0.15~0.4 (mm)
Width: 1030 (mm)
Size: 1000 (mm)
Thickness: 0.45 (mm)
Features: Good insulation performance, high temperature and high pressure resistance
Heat resistance: 130 degrees
Custom: Yes
Packing description: carton



Product Usage

It is suitable for B-class electric motors, generators, transformers and

other electric appliances or equipment, insulation based on slot, interlayer,

liners and interturn.



6641 F DMD Technical Data:

Item Unit Parameter
Material thickness mm 0.13 0.15 0.18 0.20 0.23
Thickness deviation mm ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Quantitative and deviation g/m2 130±13 150±15 185±19 215±22 255±26
membrane thickness mm 0.036 0.05 0.075 0.10 0.125

Tensile Strength



Vertical



Horizontal

N/10mm



N/10mm

≥60



≥40

≥90



≥80

≥120



≥105

≥140



≥120



≥180



≥150

Elongation



Vertical



Horizontal

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

Breakdown voltage



Not bend

KV ≥5 ≥7 ≥8 ≥10 ≥11
Normal cohesiveness   No stratification
Thermal adhesion 180±2℃10min No layering, no foaming, no glue flow
Heat resistance grade   Class F 155 degrees
Colour   Blue/Green/Red



Picture show

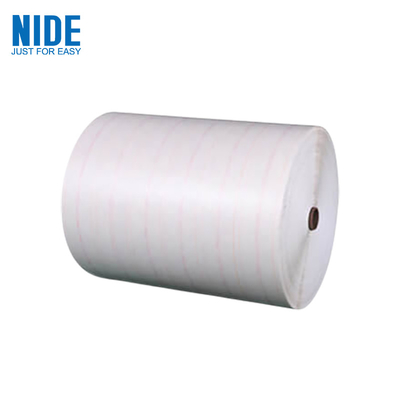

Insulating Motor Winding Paper High Temperature Resistance Wear 0

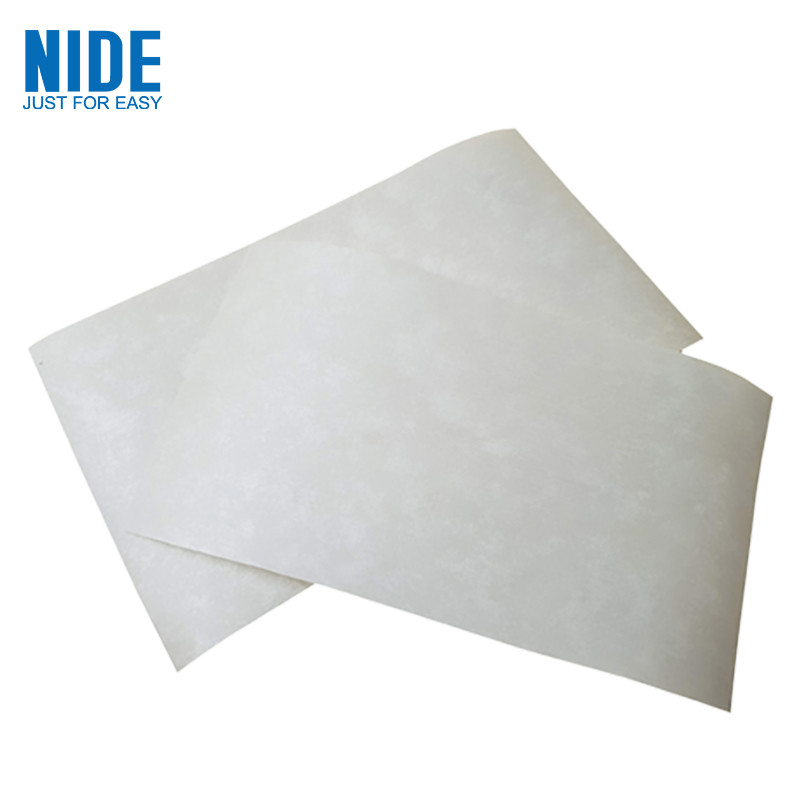

Insulating Motor Winding Paper High Temperature Resistance Wear 1









Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc



insulation-paper-material-for-motor-winding-manufacturing



electrical insulation paper material





About Motor component and accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
