Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD

Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD

  • Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD
  • Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD
Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-JYZ-6630
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilogram
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 kilogram per month
Contact Now
Detailed Product Description
Product Name: 6630 DMD Motor Insulation Material Color: White
Used For: Motor Stator Armature Coil Winding Type: Motor Insulation Paper
Grade: B Certification: CE
Thickness: 0.13-0.47mm Temp: 130°
High Light:

Impregnating Stator Insulation Paper

,

Electric Motor Stator Insulation Paper

,

Winding Motor Insulation Paper 6630 DMD

6630 DMD Stator Insulation Paper for Electric Motor Winding



Application:

DMD is a composite product made by heating and compounding a polyester film between two layers of non-woven fabrics of polyester fibers.
DMD is suitable for slot insulation and liner insulation of motors, and interlayer insulation of transformers.



Available specifications: 0.13-0.47mm

The main technical indicators take 0.25 as an example

Thickness tolerance: 0.04±0.05

Tensile strength longitudinal without bending ≥150 after bending ≥130

(N/10mm) Horizontal without bending≥130 After bending≥120

Elongation% Longitudinal ≥10 Transverse ≥10

Volume resistivity under normal conditions MΩ.m ≥1.0×10.6, after damp ≥1.0×10.4

Breakdown voltage Normal state≥10.0 155±2℃≥9.0

Thermal adhesion: no delamination, no foam, flow glue 180±2℃



Features:

Super dielectric property.

Reliable heat resistance.

High mechanical strength.

Good impregnating performance.



NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.



Product parameter:

Product name 6630 DMD motor insulation paper
Model: 6630B grade DMD insulation paper
Grade: B grade
Color: White
Thickness: 0.13~0.47 (mm)
Width: 1030 (mm)
Size: 1000 (mm)
Thickness: 0.45 (mm)
Features: Good insulation performance, high temperature and high pressure resistance
Heat resistance: 130 degrees
Custom: Yes
Packing description: carton



Product Usage

It is suitable for B-class electric motors, generators, transformers and

other electric appliances or equipment, insulation based on slot, interlayer,

liners and interturn.



6641 F DMD Technical Data:

Item Unit Parameter
Material thickness mm 0.13 0.15 0.18 0.20 0.23
Thickness deviation mm ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Quantitative and deviation g/m2 130±13 150±15 185±19 215±22 255±26
membrane thickness mm 0.036 0.05 0.075 0.10 0.125

Tensile Strength



Vertical



Horizontal

N/10mm



N/10mm

≥60



≥40

≥90



≥80

≥120



≥105

≥140



≥120



≥180



≥150

Elongation



Vertical



Horizontal

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

≥15



≥20

Breakdown voltage



Not bend

KV ≥5 ≥7 ≥8 ≥10 ≥11
Normal cohesiveness   No stratification
Thermal adhesion 180±2℃10min No layering, no foaming, no glue flow
Heat resistance grade   Class F 155 degrees
Colour   Blue/Green/Red



Picture show

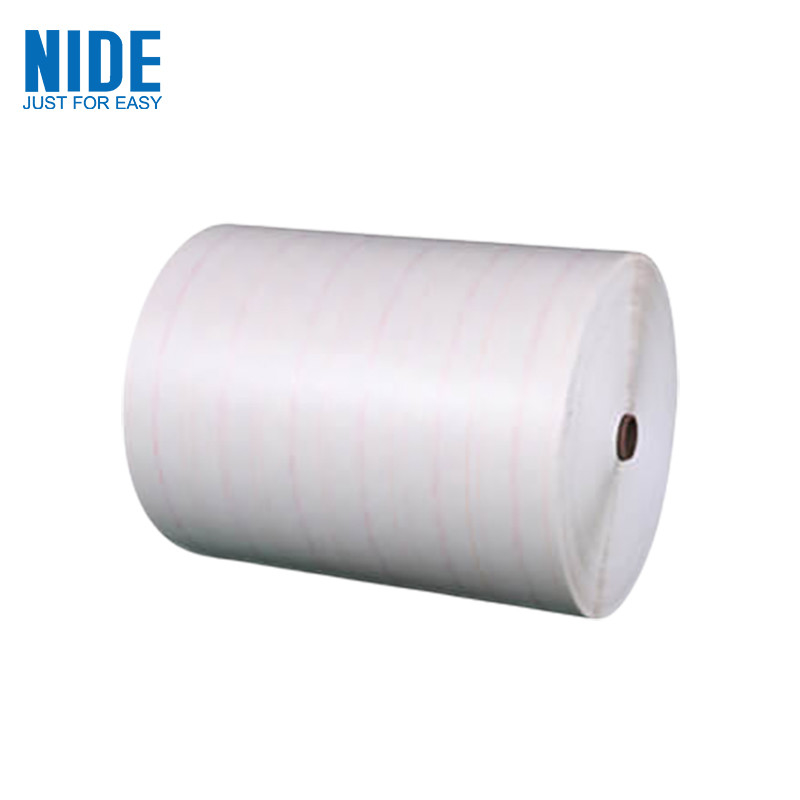

Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD 0Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD 1

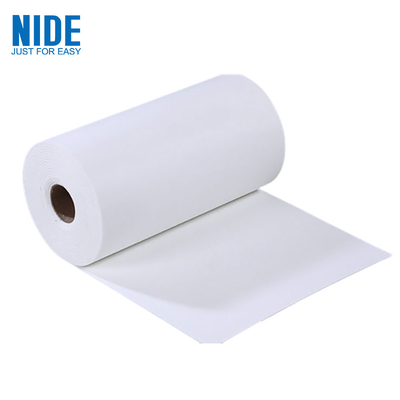

Winding Electric Motor Spare Parts Impregnating Stator Insulation Paper 6630 DMD 2









Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.





We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
