Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-CW-N33 |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000 pcs per month |
Product Name: | Electric Vehicle Motor Ndfeb Magnet | Color: | Copper |
---|---|---|---|
Used For: | Electric Vehicle Motor | Size: | Custmoized,block,Disc,Cylinder, Bar, Ring,Arc,etc |
Material: | N33 Neodymium Rare Earth | Density(g/cm3): | 7.45 |
Curi Temp.(Tc): | 310 | Max.Operaing Temp: | 80 |
Highlight: | Magnetic Levitation System Arc Segment Magnet,Audio Arc Segment Magnet,Arc Segment Neodymium Magnets Audio |

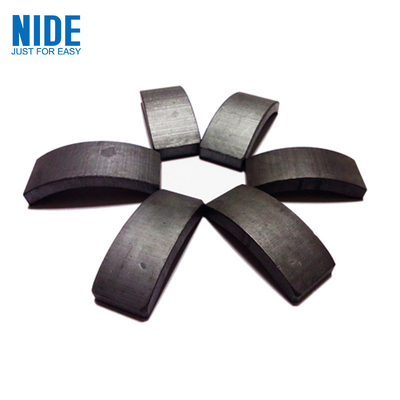

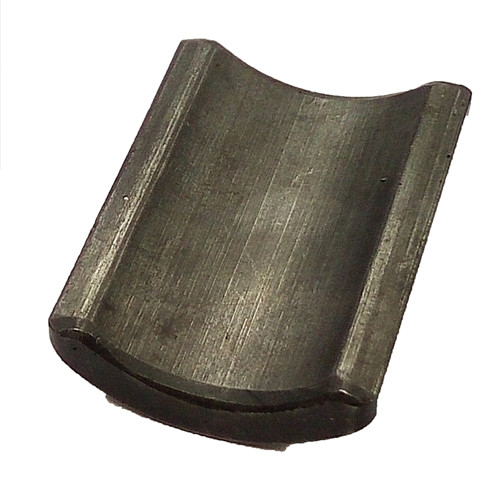

Small Size Arc Segment Magnet For Audio Equipment Magnetic Levitation System
Grade | Max.Operaing Temp. |
N30-N52 | 80℃ |
N30M-N52M | 100℃ |
N30H-N50H | 120℃ |
N30SH-N48SH | 150℃ |
N28UH-N45UH | 180℃ |
N28EH-N38EH | 200℃ |
N28AH-N35AH | 240℃ |
NdFeB permanent magnets are developing rapidly and widely used due to their excellent performance, abundant raw materials and reasonable prices. Most block magnets have their north and south pole on the two largest areas. The few exceptions, which are magnetized in longitudinal direction, are specifically marked.These block magnets, like our other super magnets, are made of a special NdFeB alloy, which allows neodymium block magnets to achieve extreme adhesive force of up to 200 kg. It is mainly used in micro and special motors, permanent magnet instruments, electronics industry, automobile industry, petrochemical industry, nuclear magnetic resonance equipment, audio equipment, magnetic levitation system, magnetic transmission mechanism and magnetic therapy equipment. The surface usually needs to be electroplated, such as galvanized, nickel, silver, gold, etc., can also be phosphated or sprayed with epoxy resin to extend the service life and make it more beautiful.
NdFeB Magnet Features
1. Magnetic materials with strong magnetic force are widely used and cost-effective.
2. It has good mechanical properties and can be easily processed into various shapes, including special-shaped magnets.
Cost-effective
3. Various specifications: square, square, round, disc, spherical, tile, trapezoid, diamond, special shape, etc.
4. Support customization: can be customized according to customer needs
Material | NdFeB |
Size of Magnet | Can be customized according to customer's need. |
Performance | N33 N35 N38 N40 N42 N45 N48 N50 ... |
Coatings | galvanized, nickel, silver, gold, etc., can also be phosphated or sprayed with epoxy resin |
Application | It is mainly used in micro and special motors, permanent magnet instruments, electronics industry, automobile industry, petrochemical industry, nuclear magnetic resonance equipment, audio equipment, magnetic levitation system, magnetic transmission mechanism and magnetic therapy equipment. |
Magnet Certificate | CE |
Product name | NdFeB Rare Earth Block magnet |
Coercivity | 955 (KA/m) |
Remanence | 1.21 (T) |
Intrinsic coercivity | 867 (KA/m) |
Max magnetic energy product | 287 (KJ/m3) |
Material designation | N52 |
Density | 7.48 (g/cm3) |
Working temperature | 80 (℃) |
Curie temperature | 310 (℃) |
Information needed for magnet inquiry
It will be better if customer could send us detailed drawing including below information.
1. Magnet drawing
2. Magnet material
2. Magnet dimension: width, thickness, tolerance.
3. Magnet grade
4. Magnet applications
5. Required quantity: normally its weight or quantity
6. Other technical requirement.
If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs
NIDE can offer a variety of motor magnets, please contact us if necessary.
