| Place of Origin: | China |
| Brand Name: | NIDE |
| Certification: | CE |
| Model Number: | NDPJ-HXQ-03052 |
| Minimum Order Quantity: | 10000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Wooden case suitable for sea transportation |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000000 pcs per month |
| Product Name: | Commutator | Size: | Customers' Requirement |
|---|---|---|---|
| Application: | Apply To Automotive Industry, And Other Motors. | Type: | Hook |
| OD: | 34 | ID: | 10.5 |
| Total Height: | 28 | Bar No: | 25 |
| Highlight: | Forklift DC Motor Commutator,DC Motor Commutator Electric,Electric Motor Commutator Wear Resistant |
||

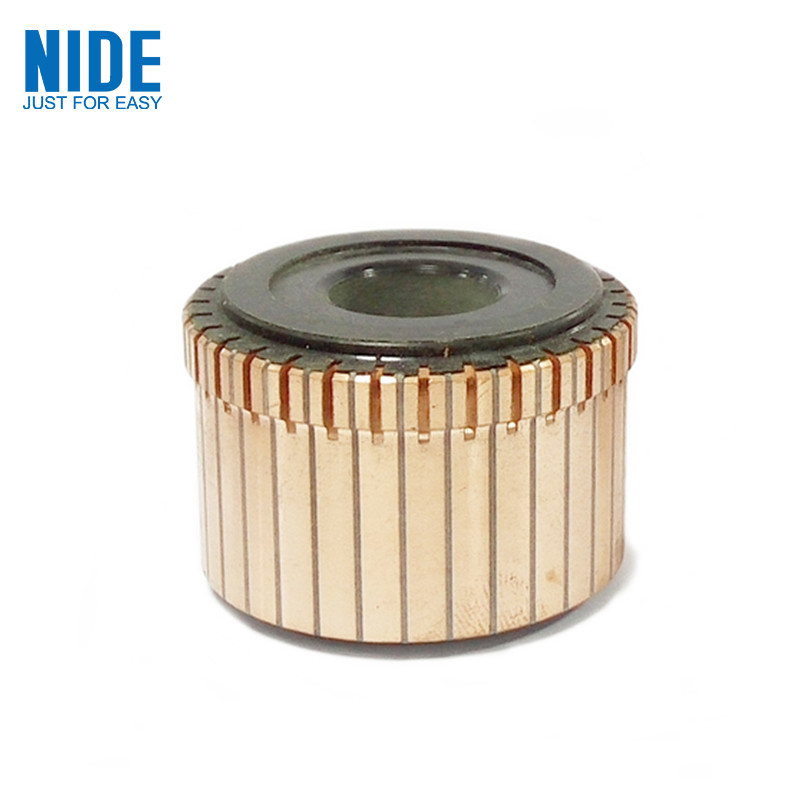

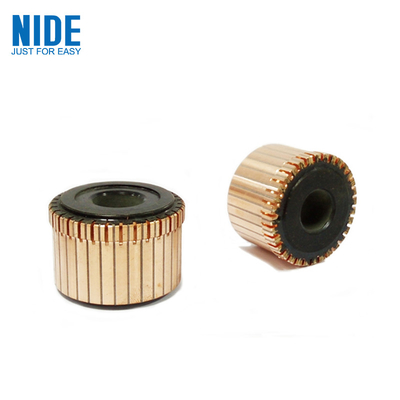

Hook type Alternator Commutator For Car Rear Windscreen Wiper
| Product name: | Micro DC motor part commutator |
| OD | 34 |
| ID | φ10.5 |
| Total Height | 28 |
| Segment Length | 26 |
| Hook/Riser dia. | 49 |
| Bar No. | 25 |
Competitive a dvantages:
1. We have a full experience of export.
2. We directly supply our products to many countries, like USA, France, Turkey, India, Brazil, Argentina, Mexico etc.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
Product advantages:
Professional and unique design makes the motor noise less and torque more,
High dielectric strength between chips,
no breakdown or flicker occurs;
insulation resistance.≥100MΩ,
AC frequency at 50HZ / 60HZ,
excellent electrical and mechanical properties,
stable structure,
high dimensional accuracy,
small uniform angular error of commutator,
high product hardness
Good abrasion resistance,
high tensile strength,
stable thermal performance and long service life.
Information needed for commutator inquiry:
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
| Materials | 0.03% or 0.08% sliver copper or customized |
| Dimension | Customized |
| Commutator type | Hook type/Raiser type |
| Application | apply to automotive industry, power tools, household appliances, and other motors |
| Package | Suitable for land and sea transportation |
| Production capacity | 1000000pcs/month |
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Competitive advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
Information needed for commutator inquiry:
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
