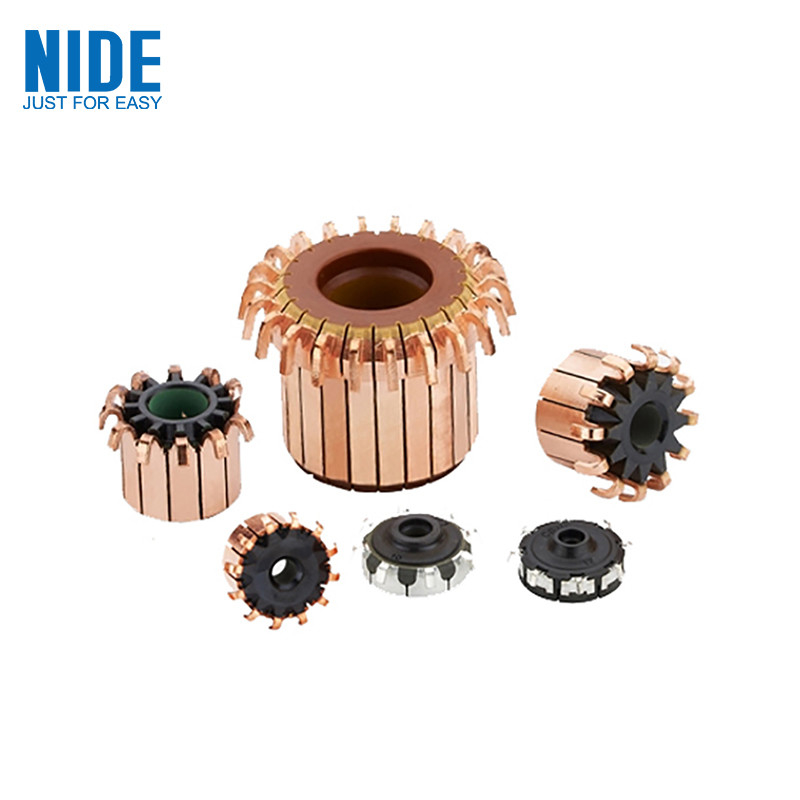

Hook Type Alternator Commutator For Car Rear Windscreen Wiper

Hook Type Alternator Commutator For Car Rear Windscreen Wiper

  • Hook Type Alternator Commutator For Car Rear Windscreen Wiper
  • Hook Type Alternator Commutator For Car Rear Windscreen Wiper
Hook Type Alternator Commutator For Car Rear Windscreen Wiper
Product Details:
Place of Origin: China
Brand Name: NIDE
Certification: CE
Model Number: NDPJ-HXQ-03051
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Price: negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 10000000 pcs per month
Contact Now
Detailed Product Description
Product Name: Commutator Size: Customers' Requirement
Application: Apply To Automotive Industry, And Other Motors. Type: Hook
OD: 32 ID: 8
Total Height: 20 Hook/Riser Dia: 38.2
Highlight:

Hook Type Alternator Commutator

,

Rear Windscreen Wiper Alternator Commutator

,

Car Alternator Brush Commutator

Hook type Alternator Commutator For Car Rear Windscreen Wiper



Product name: Micro DC motor part commutator
OD 32
ID φ8
Total Height 20
Segment Length 18.5
Hook/Riser dia. 38.2
Bar No. 20



Description:

The commutator is the original part of the DC permanent magnet series motor in order to allow the motor to continue to rotate. Structurally, the commutator is a circle surrounded by several contact pieces, which are connected to each tap on the rotor respectively, and two electrodes are connected to the outside called brushes, and only two of them are contacted at the same time.


Competitive a dvantages:

1. Sliver copper with high intension and wear resistance
2. Long duration time
3. Wide range of commutator
4. Wide application of commutator
5. Good quality
6. Produce commutator as per customer’s drawing.



Information needed for commutator inquiry:

It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.

2. Commutator type: hook type, raiser type or planner

3. Copper material: Agcu/ Cu

4. Commutator applications

5. Required quantity

6. Copper bush needed or not

7. Other technical requirement.





Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application apply to automotive industry, power tools, household appliances, and other motors
Package Suitable for land and sea transportation
Production capacity 1000000pcs/month

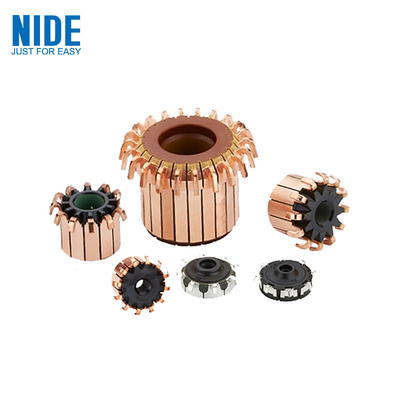

Hook Type Alternator Commutator For Car Rear Windscreen Wiper 0

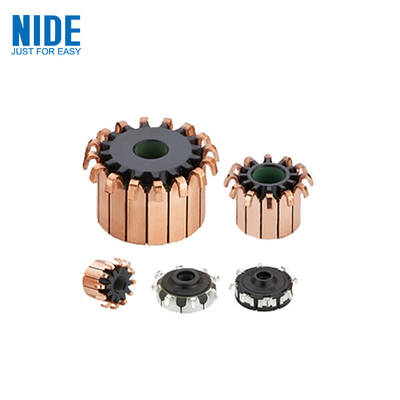

Hook Type Alternator Commutator For Car Rear Windscreen Wiper 1

commutator

AC motor commutator

motor commutator

DC motor commutator

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

motor electric commutator



About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.



Competitive advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
