Place of Origin: | China |
Brand Name: | NIDE |
Certification: | CE |
Model Number: | NDPJ-HXQ-03050 |
Minimum Order Quantity: | 10000 pcs |
---|---|
Price: | negotiable |
Packaging Details: | Wooden case suitable for sea transportation |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10000000 pcs per month |
Product Name: | Commutator | Size: | Customers' Requirement |
---|---|---|---|
Application: | Apply To Automotive Industry, And Other Motors. | Type: | Hook |
OD: | 15 | ID: | 5 |
Total Height: | 16.5 | Segment Length: | 15.5 |
High Light: | Blower Motor Commutator,Wear Resistance Motor Commutator,0.08% Silver Copper Motor Commutator |

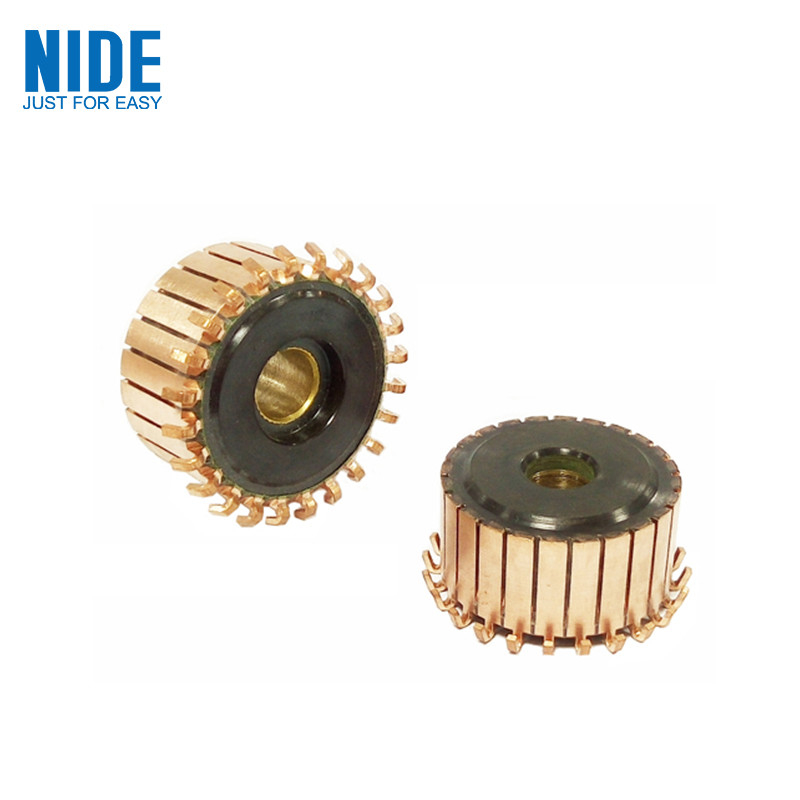

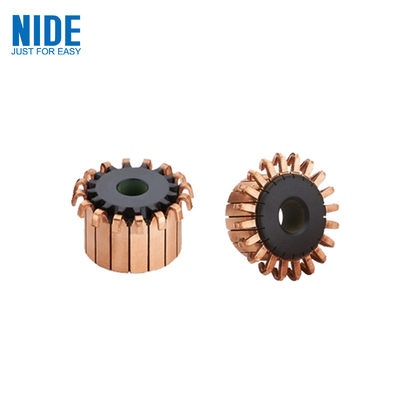

Sliver Copper or Customized Wear Resistance Blower Motor Commutator Armature
Product name: | Micro DC motor part commutator |
OD | 15 |
ID | φ5 |
Total Height | 16.5 |
Segment Length | 15.5 |
Hook/Riser dia. | 20 |
Bar No. | 12 |
Description:
A commutator is an arrangement of insulated copper bars that are connected to coils of an electric motor to provide a reversal of current into the coils of the motor.The word is sometimes mistakenly used in place of the general term slip ring.
A commutator ring is made of insulated metal segments unlike the solid metal ring of a slip ring. Electrical brushes (contacts) rub on this rotating ring to make the electrical connection. These ring segments are wired to act as a rotary switch in order to reverse the electrical current. In a DC motor this switching reverses the magnetic field to keep the motor turning. In a generator the switching changes alternating current into current flowing in one direction (DC).
Competitive a dvantages:
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
Materials | 0.03% or 0.08% sliver copper or customized |
Dimension | Customized |
Commutator type | Hook type/Raiser type |
Application | apply to automotive industry, power tools, household appliances, and other motors |
Package | Suitable for land and sea transportation |
Production capacity | 1000000pcs/month |
Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
Competitive advantages:
1. We have a full experience of export.
2. We directly supply our products to many countries.
3. Our commutator is widely used in many industrial, such as power tools, car industry, window lifts, electric drill etc.
Contact Person: Herbert
Tel: +8615268395840
